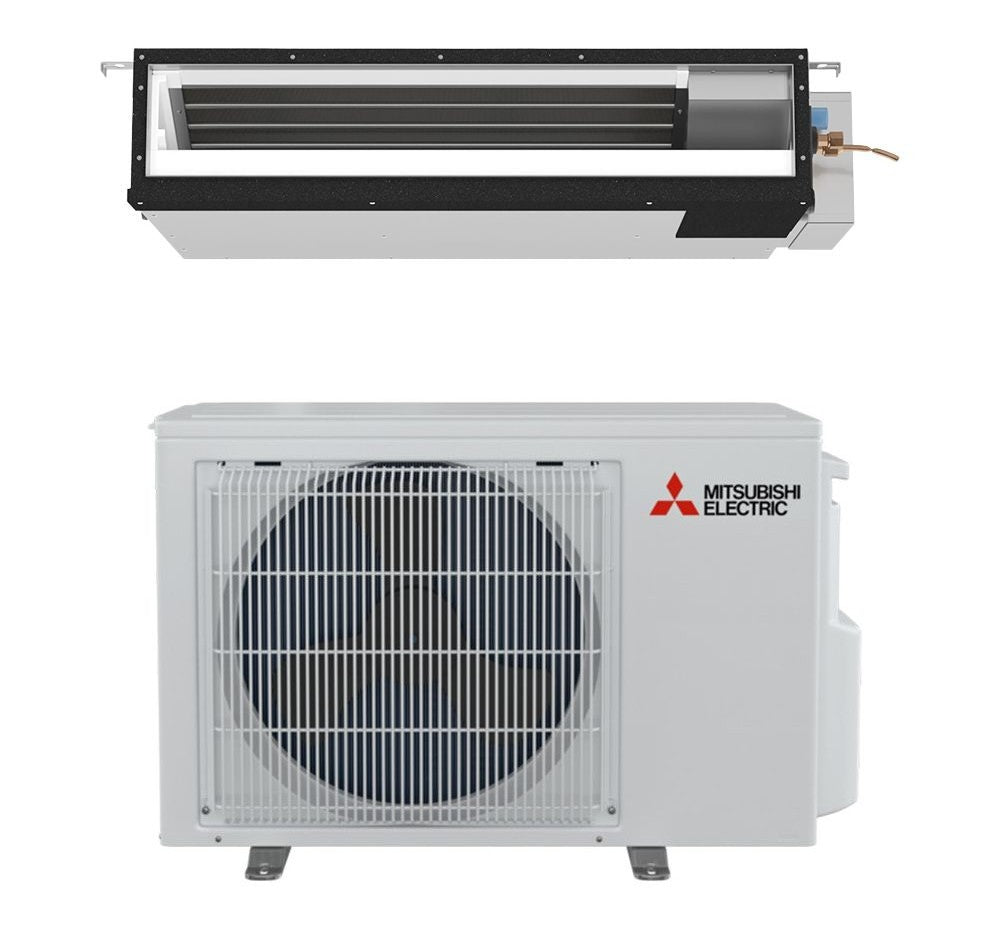

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA12NL+SEZ-AD12NL - BTU 12000 - SEER 17.5 - R454B

Product Description

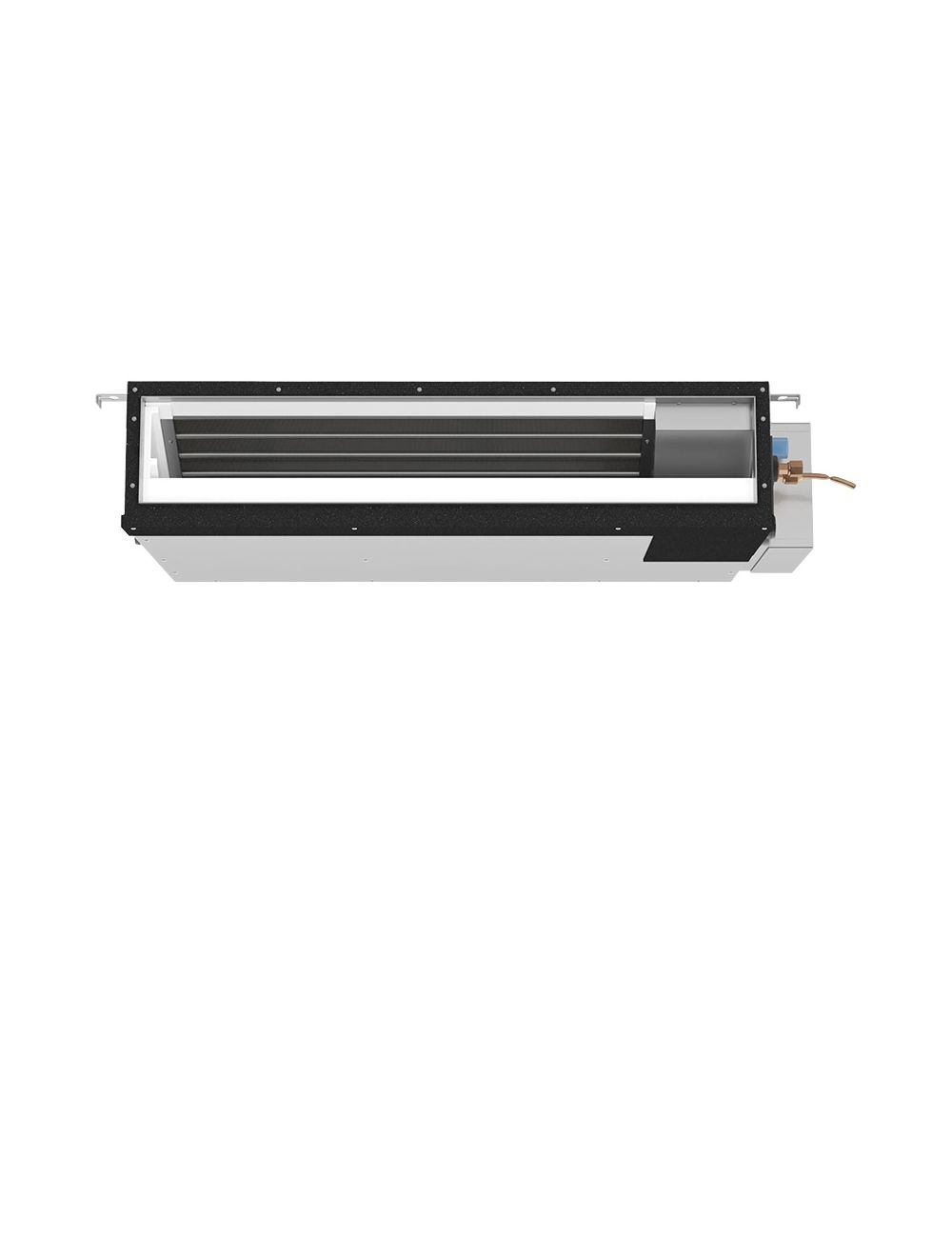

The Mitsubishi Electric SEZ-AD12NL is a concealed, horizontal-ducted system for heating and cooling. It is effective for both single-zone and multi-zone settings with short duct runs. This unit's design allows installation in various locations, including attics, ceilings, or hidden behind walls. It can connect to the Comfort App for remote access and has various control options available.

• Concealed horizontal-ducted design for discreet installation.
• Suitable for single or multi-zone applications.
• Wi-Fi enabled with multiple control options.

Product Highlights

The SEZ-AD12NL provides efficient heating and cooling with multiple capabilities for flexible installation.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SEZ-AD12NL

Technical Specifications

• Product Line: M-Series AD
• Operating Mode: Cooling & Heating
• Unit Type: Multi Zone
• Number of Zones: Multi
• System Capacity: 12,000 BTU
• Cooling Capacity: 12,000 BTU
• Heating Capacity: 15,000 BTU
• SEER2: 19
• EER2: 12.1
• HSPF2: 9.5
• Heating Minimum Temp: -1 F
• Cooling Minimum Temp: -14 F
• Room Area Coverage: up to 500 sq ft
• Airflow (Cooling CFM, Dry): 247-317-388
• Airflow (Heating CFM, Dry): 247-317-388
• Noise Level (dB(A), Cooling): 23-28-33
• Noise Level (dB(A), Heating): 23-28-33
• Dimensions: 39 W x 27-9/16 D x 7-7/8 H
• Weight: 50 lbs
• Line Set Size: 1/4 x 3/8
• Wi-Fi Enabled: Yes with Comfort App
• Wi-Fi Built In: Yes
• Controller Model: MHK2
• Wireless Remote Controller Model: MRCH2
• Wireless Remote Controller Dimensions: 4-5/64 W x 1-1/16 D x 4-5/64 H
• Wireless Receiver Model: MIFH2
• Wireless Receiver Dimensions: 1-3/4 W x 39/64 D x 3-3/32 H
• Cable For Wireless Receiver Model: MRC2

Product Description

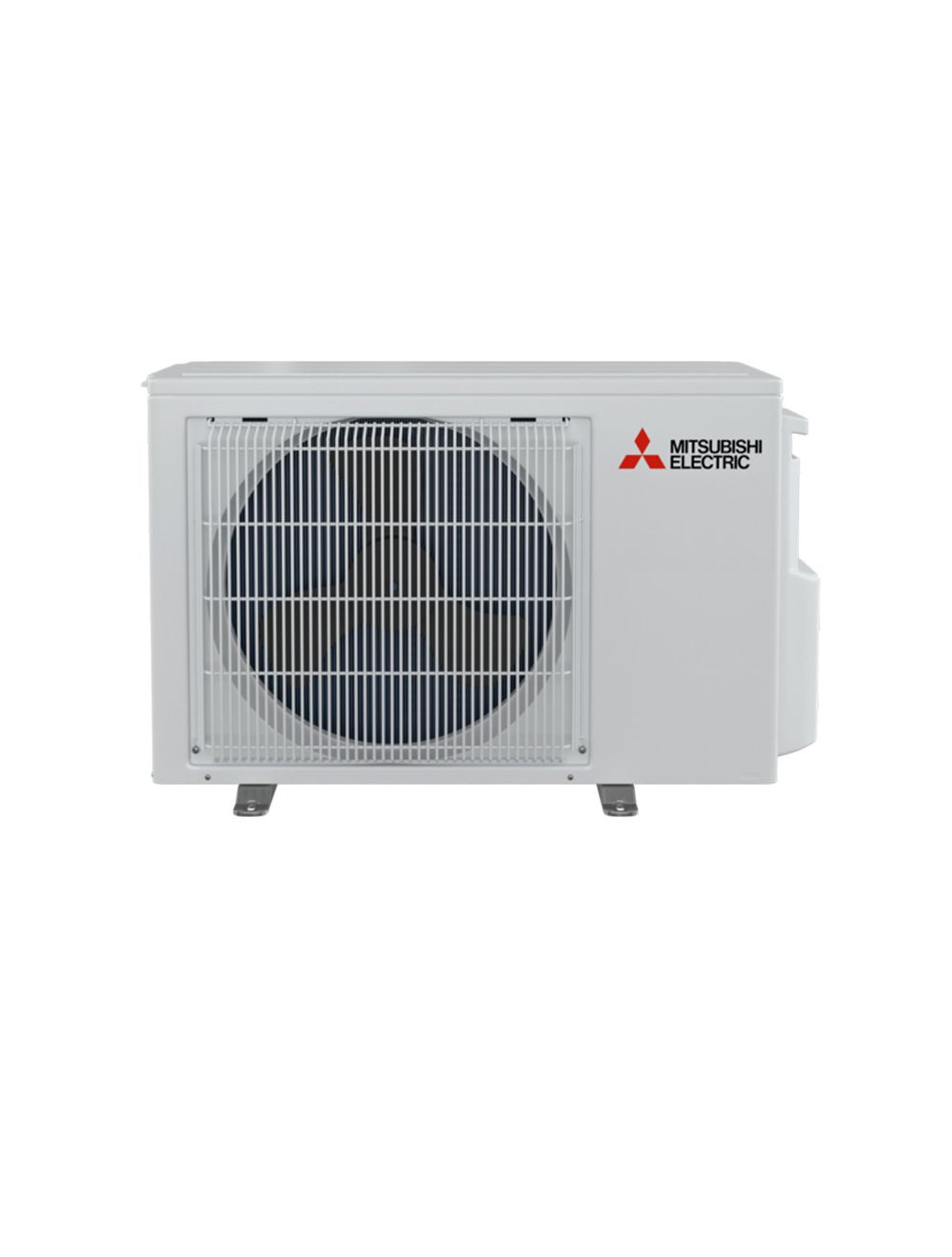

The Mitsubishi Electric SUZ-AA12NL is an outdoor condenser designed for single-zone mini-split systems. This versatile unit provides both heating and cooling functions when paired with compatible indoor models. It features an inverter-driven compressor that adjusts output to maintain a steady temperature while being compatible with R-454B refrigerant. The Blue Fin coating offers corrosion protection, making it suitable for outdoor installation and operation.

• Designed for single-zone mini-split applications.
• Heating and cooling capabilities.
• Utilizes R-454B refrigerant for efficiency.

Product Highlights

The unit is efficient and reliable, ideal for residential or light commercial use. Its compact design allows for easy installation in various locations.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SUZ-AA12NL

Technical Specifications

• Type: Outdoor Condenser, Heat Pump
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 15000 BTU
• SEER2: 19.6, 20.7
• EER2: 12.6
• HSPF2: 8.7
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: -1 F, 14 F
• Weight: 81 Pounds
• Dimensions: 21.625 Inches x 31.5 Inches x 11.25 Inches
• Noise Level: Maximum sound level of 51 dB
