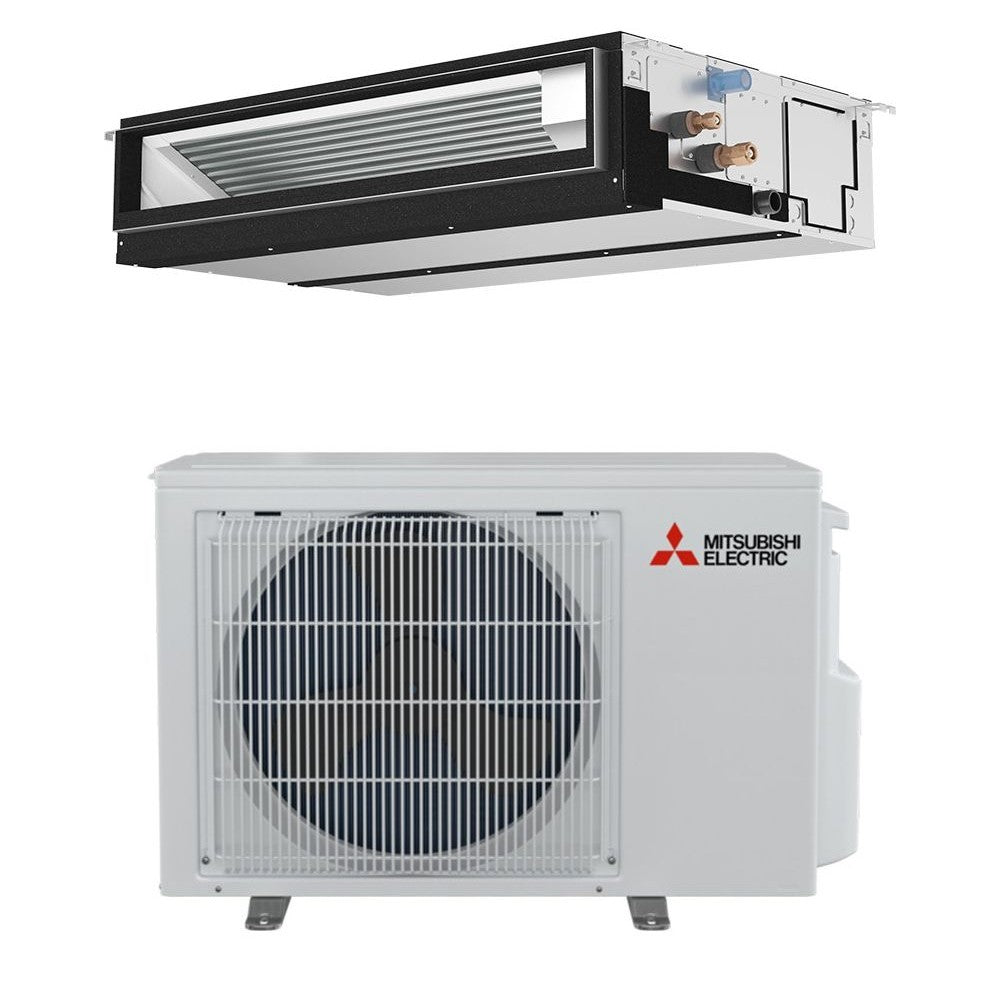

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA12NL+PEAD-AA12NL - BTU 12000 - SEER 19.7 - R454B

Product Description

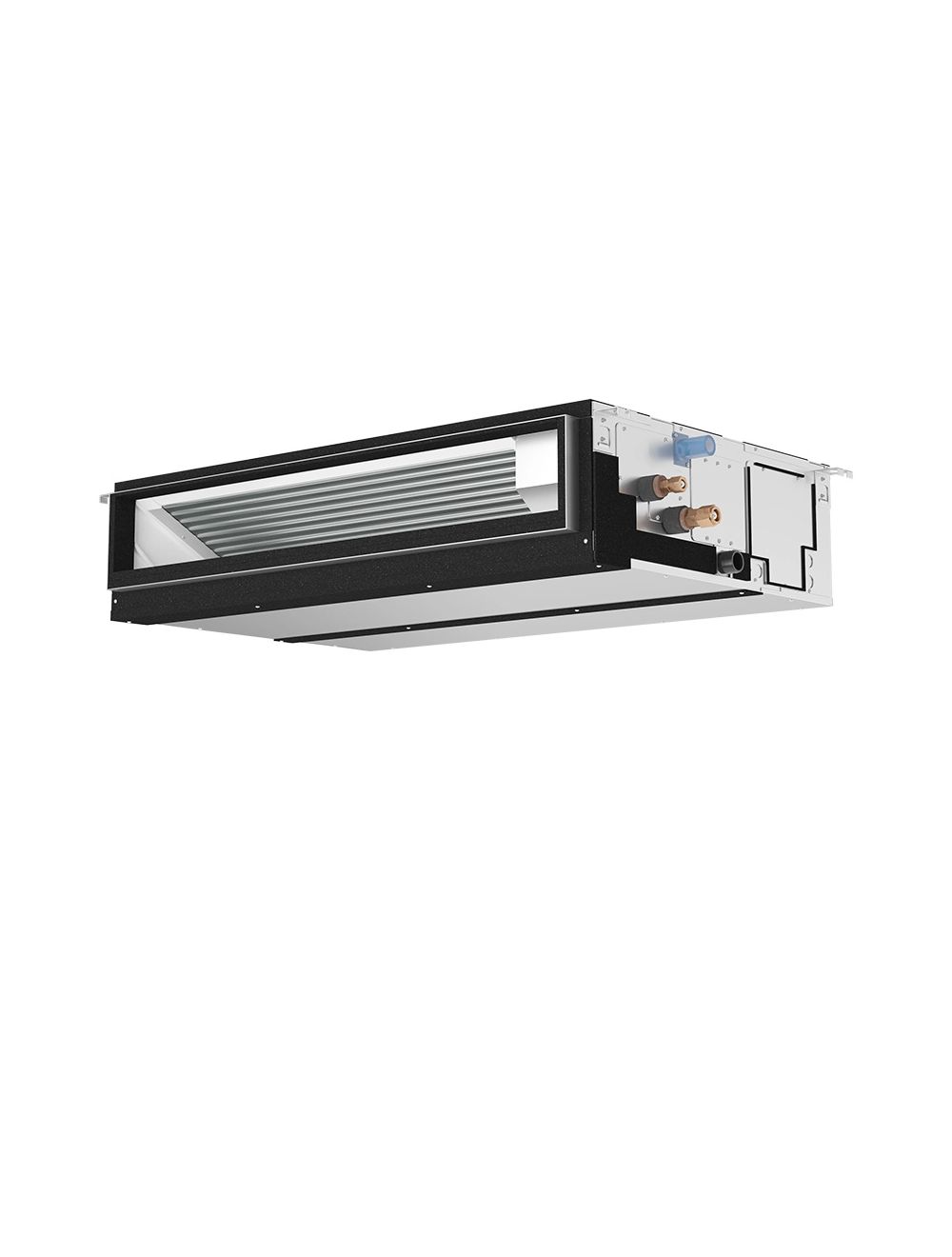

The Mitsubishi Electric PEAD-AA12NL is an indoor unit designed for ceiling installation. This horizontal-ducted unit operates on 208/230 V, sixty Hertz, and uses single-phase power. It has a power consumption of eight hundred seventy watts with a current draw of two point five amps.

The unit utilizes R-454B refrigerant and can deliver airflow rates ranging from three hundred fifty-three to four hundred ninety-four cubic feet per minute. The Mitsubishi Electric PEAD-AA12NL achieves an Energy Efficiency Ratio rating of fourteen point four and a Seasonal Energy Efficiency Ratio rating of twenty. The sound level of this unit is thirty-four decibels, and it operates effectively within a temperature range of sixty-six to ninety degrees Fahrenheit.

• Built-in condensate lift mechanism supports up to twenty-seven and nine sixteenths inches.
• Multiple control options available, including mobile app, wired, and wireless interfaces.
• Wide external static pressure range of zero point fourteen to zero point sixty inches water gauge.

Product Highlights

The Mitsubishi Electric PEAD-AA12NL provides efficient cooling and versatile control capabilities.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA12NL

Technical Specifications

• Product Type: Indoor Unit
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single Phase
• Power Consumption: 870 W
• Current: 2.5 A
• Cooling Capacity: 12400 Btu/hr
• Airflow: 353 cfm, 388 cfm, 424 cfm, 494 cfm
• EER Rating: 14.4
• SEER: 20
• Refrigerant: R-454B
• Sound Level: 34 dBA
• Mounting Type: Ceiling Mounting
• Operating Temperature: 66 to 90 deg F
• Overall Length: 28-7/8 in
• Overall Width: 35-7/16 in
• Overall Height: 9-7/8 in
• Connection Type: Flared Connection

Product Description

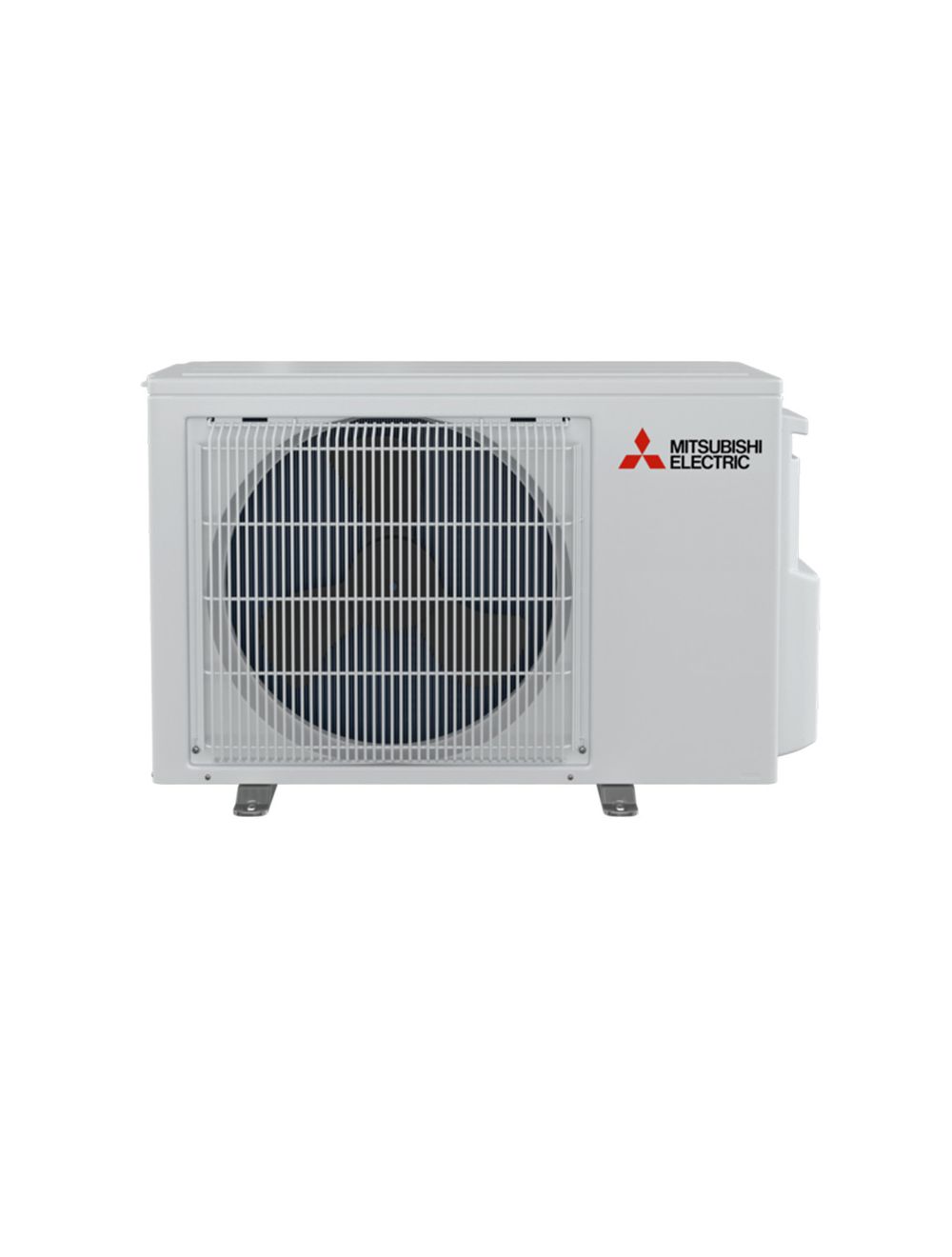

The Mitsubishi Electric SUZ-AA12NL is an outdoor condenser designed for single-zone mini-split systems. This versatile unit provides both heating and cooling functions when paired with compatible indoor models. It features an inverter-driven compressor that adjusts output to maintain a steady temperature while being compatible with R-454B refrigerant. The Blue Fin coating offers corrosion protection, making it suitable for outdoor installation and operation.

• Designed for single-zone mini-split applications.
• Heating and cooling capabilities.
• Utilizes R-454B refrigerant for efficiency.

Product Highlights

The unit is efficient and reliable, ideal for residential or light commercial use. Its compact design allows for easy installation in various locations.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SUZ-AA12NL

Technical Specifications

• Type: Outdoor Condenser, Heat Pump
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 15000 BTU
• SEER2: 19.6, 20.7
• EER2: 12.6
• HSPF2: 8.7
• Voltage: 208/230 Volts
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: -1 F, 14 F
• Weight: 81 Pounds
• Dimensions: 21.625 Inches x 31.5 Inches x 11.25 Inches
• Noise Level: Maximum sound level of 51 dB
