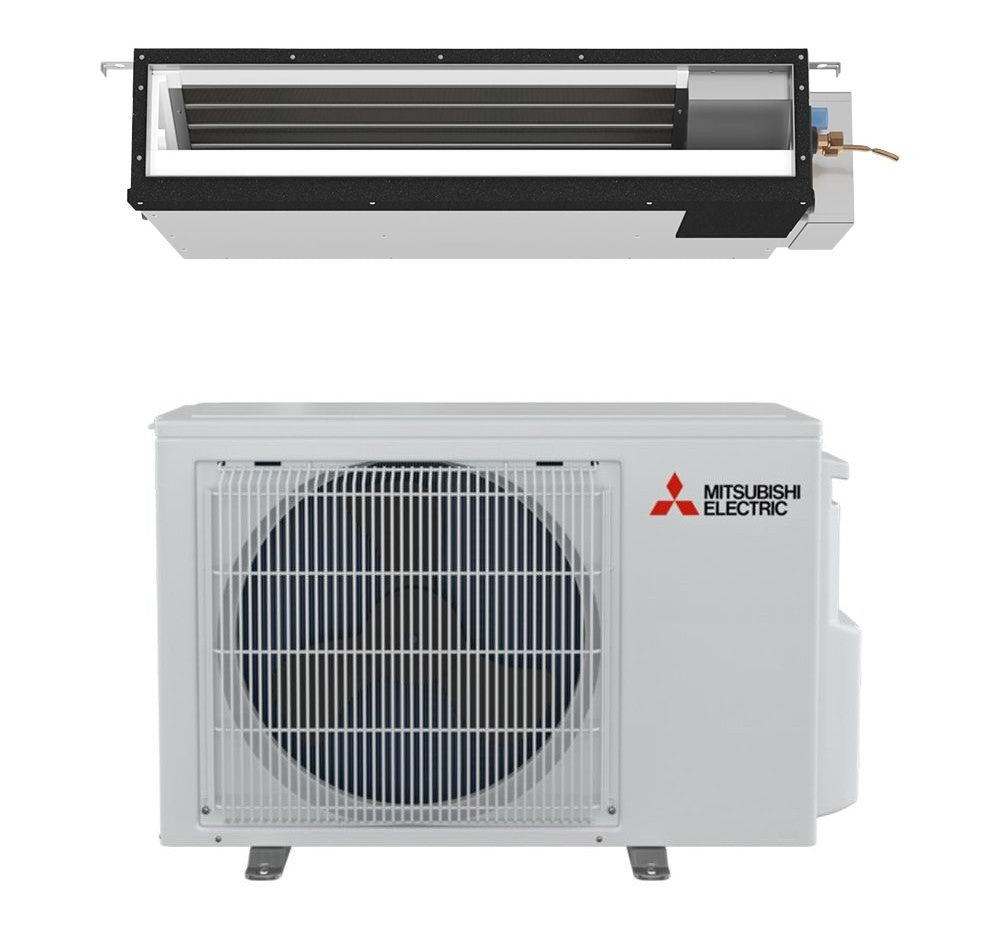

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA09NL+SEZ-AD09NL - BTU 9000 - SEER 17.4 - R454B

Product Description

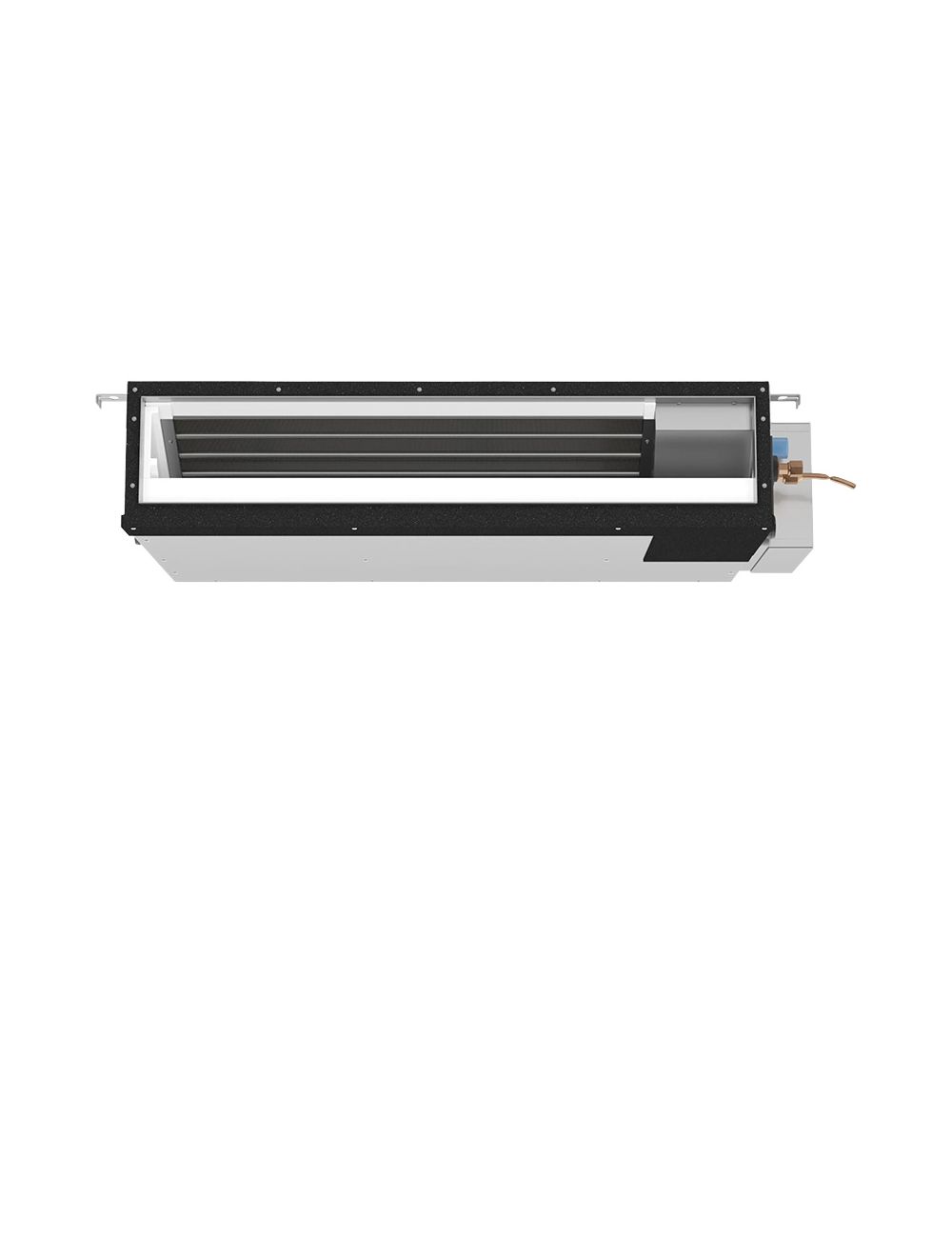

The Mitsubishi Electric SEZ-AD09NL is a horizontal ducted indoor unit tailored for mini-split air conditioning systems. This unit effectively provides heating and cooling for one or two rooms and fits various configurations, including single-zone and multi-zone setups. It is suitable for short duct runs and can be discreetly installed in areas like attics, ceilings, or within wall structures.

• Features a built-in condensate lift mechanism.
• Offers various control options, including a comfort app for remote management.
• Designed for quiet operation.

Product Highlights

This ducted indoor unit is ideal for climates that require efficient temperature control in multiple areas within a home or office.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: SEZ-AD09NL

Technical Specifications

• Indoor Unit Model Number: SEZ-AD09NL
• Indoor Unit Dimensions: 31-1/8 W x 27-9/16 D x 7-7/8 H
• Controller Model Number: MRCH2
• Controller Dimensions: 4-5/64 W x 1-1/16 D x 4-5/64 H
• Wireless Receiver Model Number: MIFH2
• Wireless Receiver Dimensions: 1-3/4 W x 39/64 D x 3-3/32 H
• Cable For Wireless Receiver Model Number: MRC2
• Cable For Wireless Receiver Length: 39-23/64

Product Description

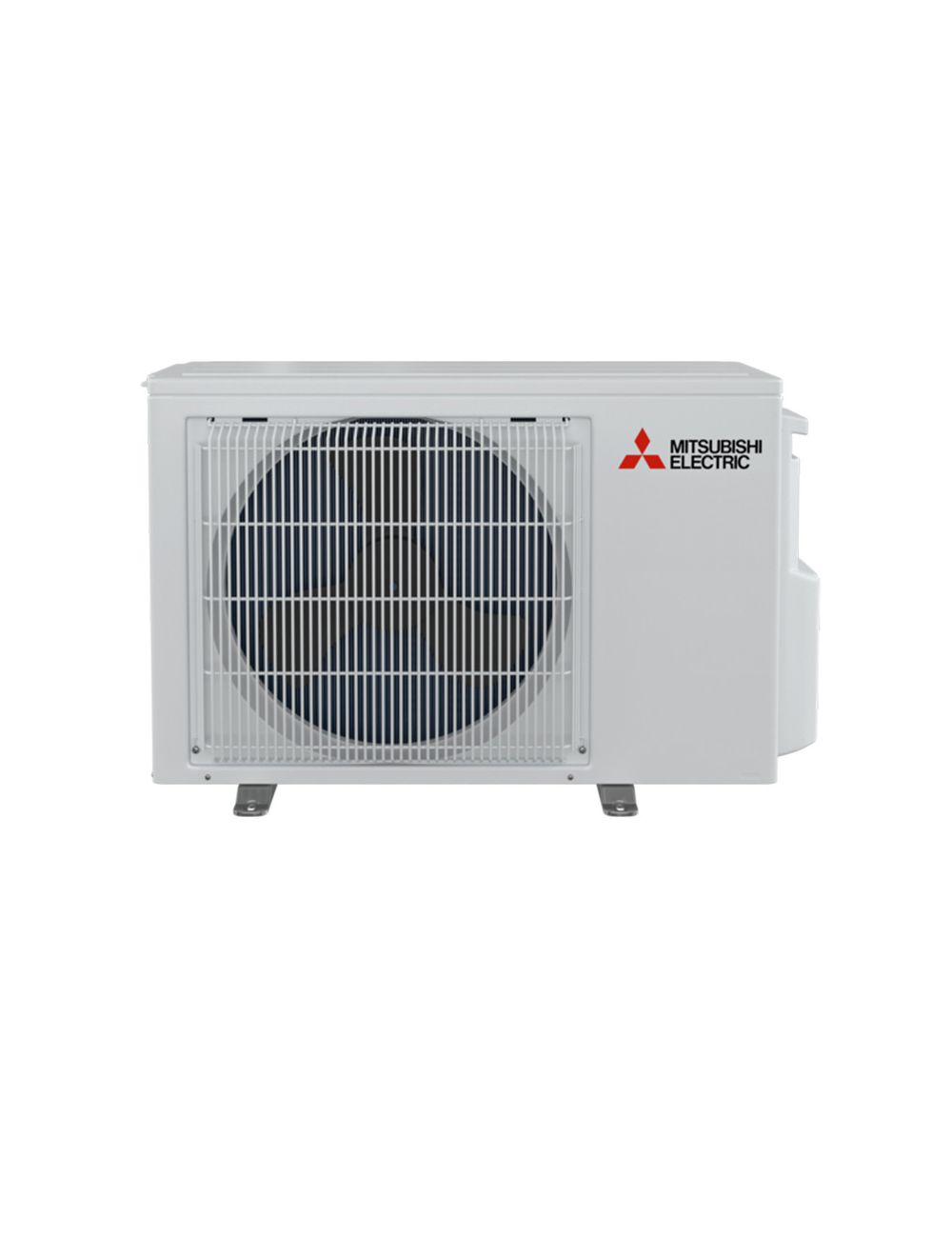

The Mitsubishi Electric SUZ-AA09NL is an outdoor heat pump unit ideal for single-zone applications. This model is part of the KX Series, offering efficient cooling and heating capabilities. It works best when paired with compatible indoor units. The unit features a Blue Fin coating that protects against corrosion and enhances durability. Additionally, it offers connectivity through the Comfort App for remote management.

• Single-zone outdoor unit for optimal performance.
• Blue Fin coating enhances corrosion resistance.
• Wi-Fi enabled with Comfort App for easy control.

Product Highlights

This unit is suitable for both heating and cooling, catering to a space of up to 350 square feet with a high energy efficiency rating.

Product Information

Standard Information

• Unit Type: Single Zone
• Product Line: KX Series

Technical Specifications

• Operating Mode: Cooling & Heating
• System Capacity: 9,000 BTU
• Line Set Size: 1/4 x 3/8
• Wi-Fi Enabled: Yes with Comfort App
• Cooling Capacity Up To: 9,000 BTU
• Heating Capacity Up To: 13,000 BTU
• SEER2: 21.6
• EER2: 12.6
• HSPF2: 12.3
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Noise Level dB(A), Cooling: 21-46
• Noise Level dB(A), Heating: 21-46
• Size W x D x H: 29-1/2 x 8-7/16 x 23-5/8
