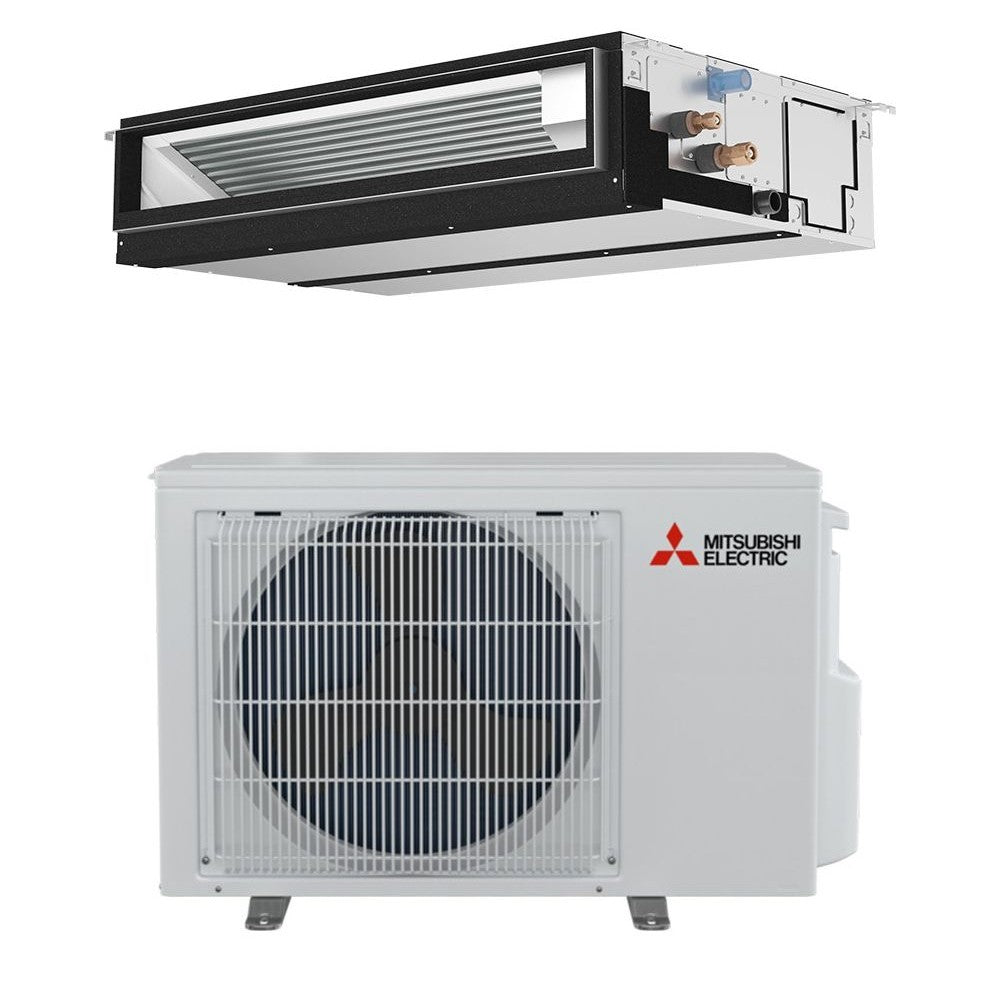

MITSUBISHI ELECTRIC SINGLE-ZONE HEAT-PUMP SYSTEMS SUZ-AA09NL+PEAD-AA09NL - BTU 9000 - SEER 18.8 - R454B

Product Description

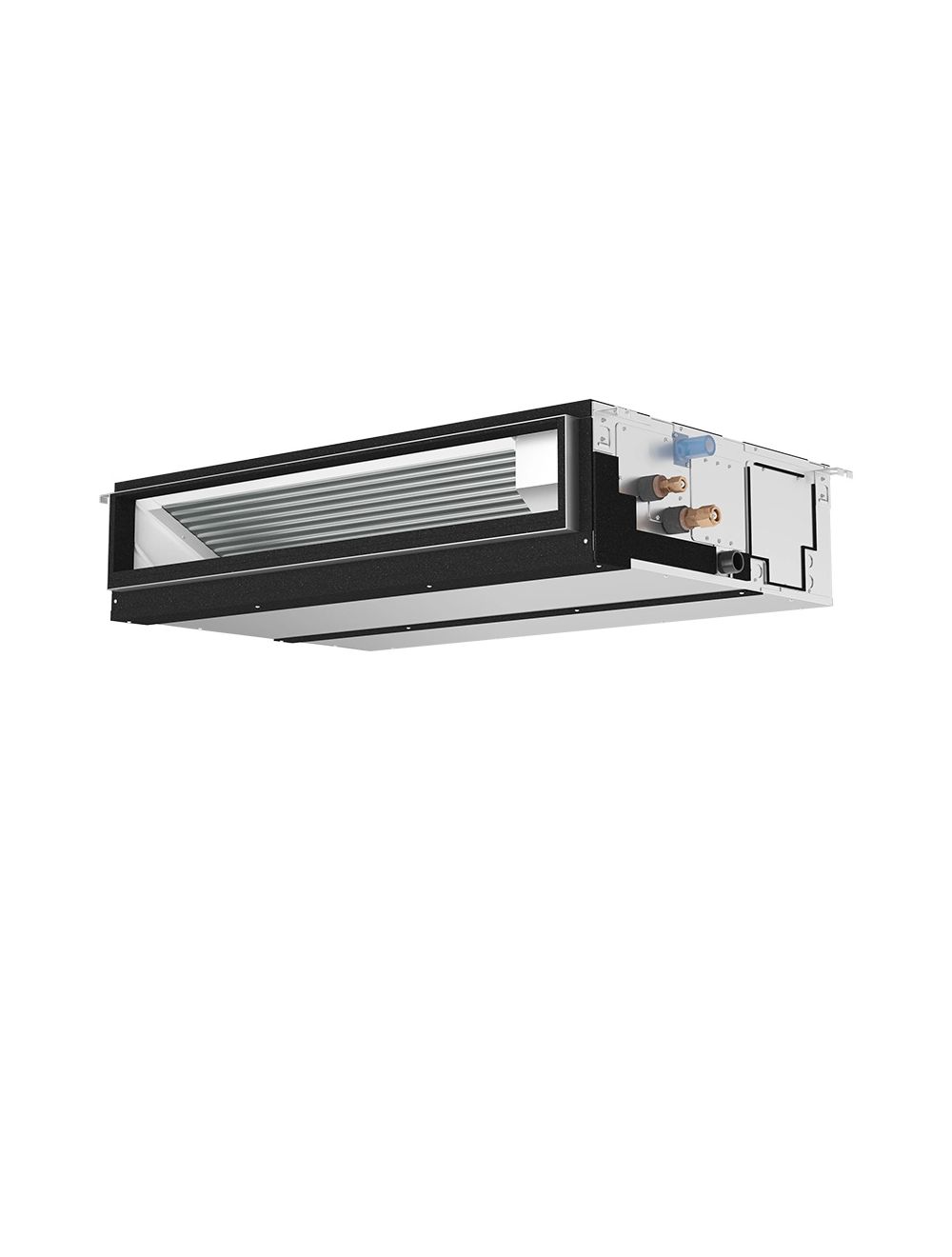

The Mitsubishi Electric PEAD-AA09NL is a concealed duct mini split indoor unit, suitable for single-zone and multi-zone applications. This unit is designed to be hidden in short-run ducting, allowing for quiet operation. It supports multiple operating modes and fan speeds to meet room needs. This unit is compatible with R-454B refrigerant and intended for indoor installation.

• Concealed duct design to maintain aesthetics.
• Multi-zone and single-zone installation capability.
• Heating and cooling modes for year-round comfort.

Product Highlights

The PEAD-AA09NL provides efficient heating and cooling, suitable for various indoor environments.

Product Information

Standard Information

• Type: Concealed Duct
• Product Line: P-Series

Technical Specifications

• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 9000 BTU
• Heating Capacity: 12000 BTU
• Moisture Removal: 0.4 Pints/Hour
• Maximum Air Flow: 353 CFM
• Voltage: 208/230 Volts
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 9 7/8 Inches
• Product Width: 35 7/16 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 58 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Installation Location: Indoor

Product Description

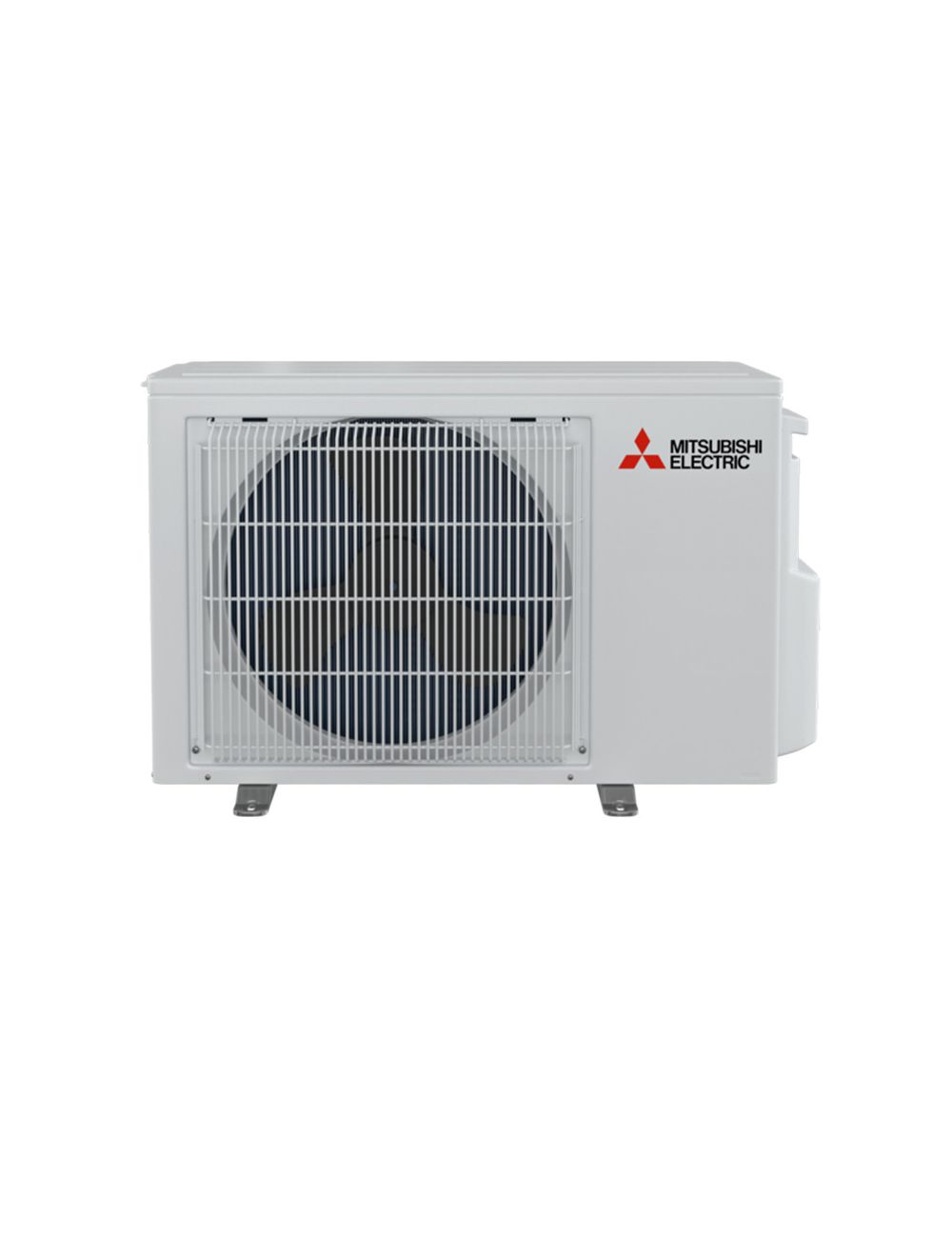

The Mitsubishi Electric SUZ-AA09NL is an outdoor heat pump unit ideal for single-zone applications. This model is part of the KX Series, offering efficient cooling and heating capabilities. It works best when paired with compatible indoor units. The unit features a Blue Fin coating that protects against corrosion and enhances durability. Additionally, it offers connectivity through the Comfort App for remote management.

• Single-zone outdoor unit for optimal performance.
• Blue Fin coating enhances corrosion resistance.
• Wi-Fi enabled with Comfort App for easy control.

Product Highlights

This unit is suitable for both heating and cooling, catering to a space of up to 350 square feet with a high energy efficiency rating.

Product Information

Standard Information

• Unit Type: Single Zone
• Product Line: KX Series

Technical Specifications

• Operating Mode: Cooling & Heating
• System Capacity: 9,000 BTU
• Line Set Size: 1/4 x 3/8
• Wi-Fi Enabled: Yes with Comfort App
• Cooling Capacity Up To: 9,000 BTU
• Heating Capacity Up To: 13,000 BTU
• SEER2: 21.6
• EER2: 12.6
• HSPF2: 12.3
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Noise Level dB(A), Cooling: 21-46
• Noise Level dB(A), Heating: 21-46
• Size W x D x H: 29-1/2 x 8-7/16 x 23-5/8
