MITSUBISHI ELECTRIC SINGLE-ZONE COOLING-ONLY SYSTEMS MUY-GX36NL+MSY-GX36NL - BTU 36000 - SEER 18.5 - R454B

Product Description

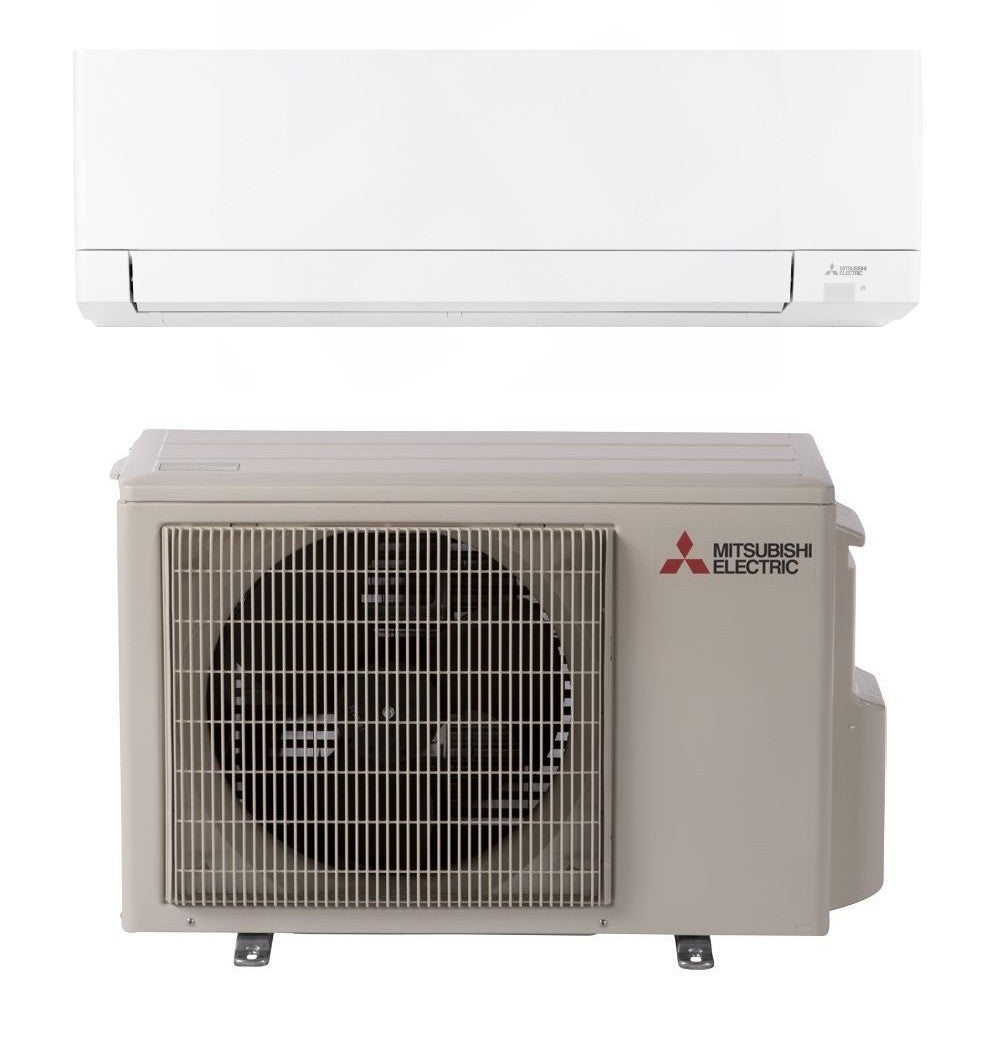

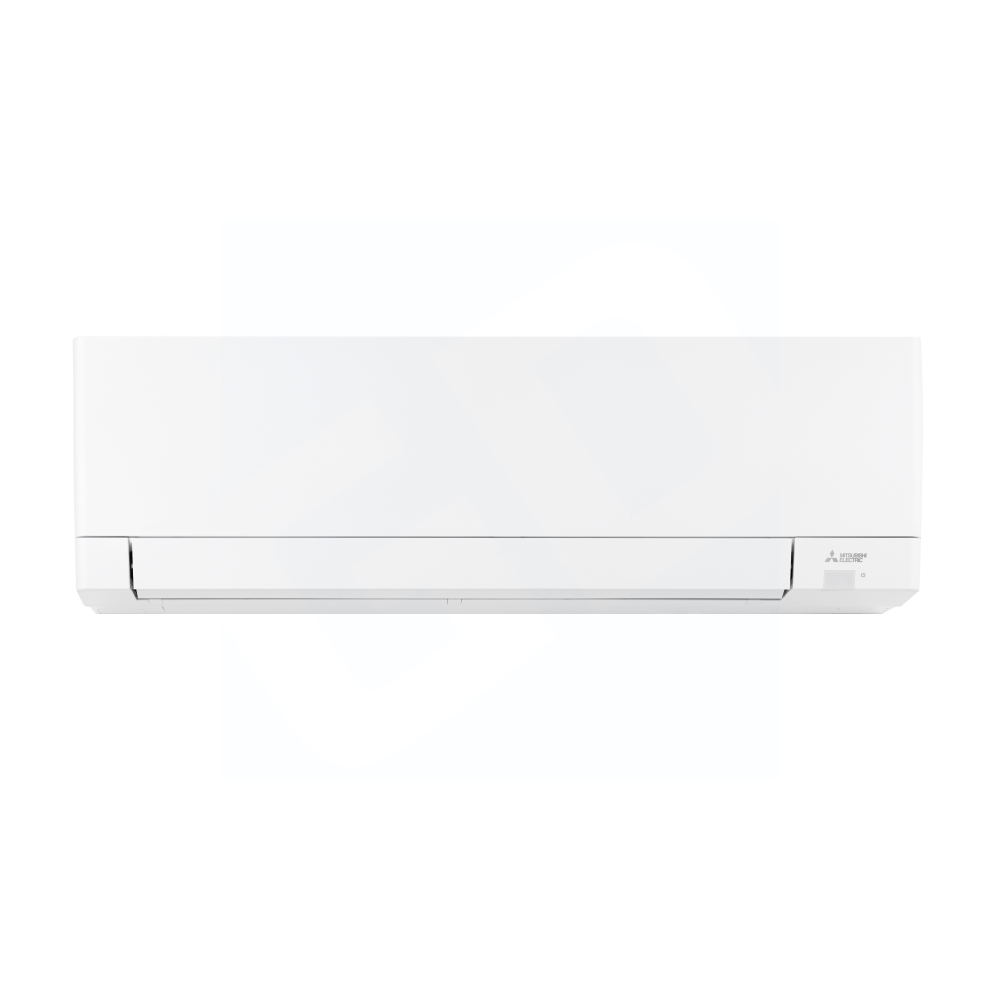

The Mitsubishi Electric MSY-GX36NL is a cooling-only mini-split system ideal for single-zone applications. The complete setup includes a wall-mounted indoor unit and an outdoor unit designed to efficiently cool spaces up to one thousand five hundred square feet. Utilizing INVERTER technology, this system maintains optimal temperatures while maximizing energy efficiency. The user-friendly design features a wireless remote control, allowing for easy adjustments from anywhere in the room.

• Cools areas up to one thousand five hundred square feet.
• Features INVERTER technology for precise cooling.
• Remote controller included for easy operation.

Product Highlights

This system is engineered for reliable performance with multiple fan speeds and quiet operation, making it suitable for residential and commercial settings.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSY-GX36NL

Technical Specifications

• Product Line: GX Series
• Operating Mode: Cooling Only
• Number of Zones: 1
• System Capacity: 36,000 BTU
• Cooling Capacity: 33,800 BTU
• SEER2: 18.5
• EER2: 8.4
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 23 Amps
• Recommended Breaker Size: 40 Amps
• Airflow Cooling CFM, Dry: 324-765
• Airflow Cooling CFM, Wet: 292-688
• Noise Level dB(A), Cooling: 30-53
• Liquid Connection Size: 1/4 Inch
• Suction Connection Size: 5/8 Inch
• Moisture Removal: 10 Pints/Hour
• Cooling Minimum Temp: -1 F
• WiFi Enabled: Yes with Comfort App
• Energy Star Listed: Yes
• Product Weight: 153 Pounds
• Indoor Unit Dimensions: 43 5/16 x 9 x 12 13/16 Inches
• Outdoor Unit Dimensions: 33 1/16 x 13 x 34 5/8 Inches

Product Description

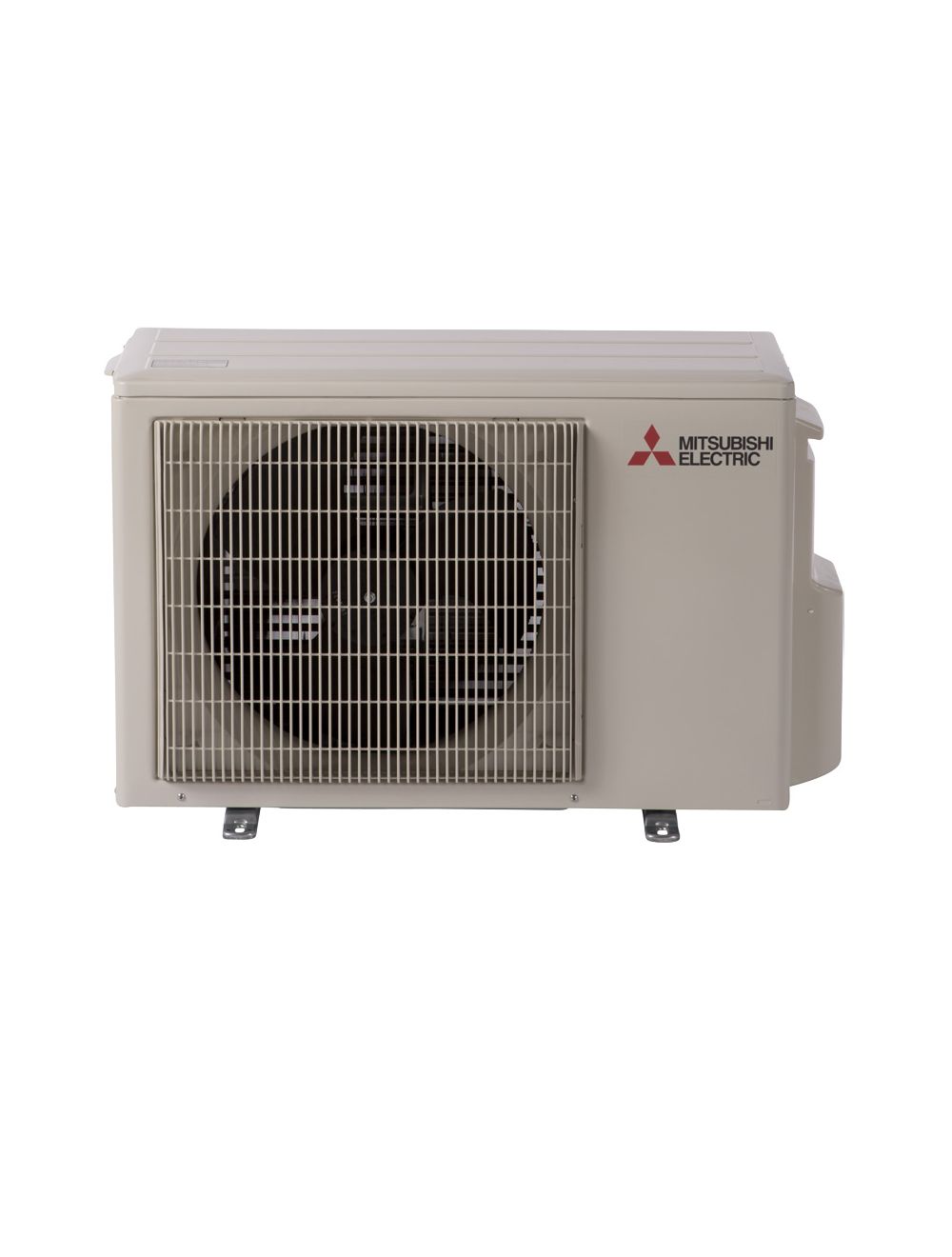

The Mitsubishi Electric MUY-GX36NL is a reliable cooling-only mini-split system with a capacity of thirty-six thousand BTU. It belongs to the GX Series and features advanced INVERTER technology. This system consists of an indoor unit (MSY-GX36NL) and an outdoor unit (MUY-GX36NL). It is ideal for single-zone applications and incorporates a Blue Fin coating for added corrosion protection. Additionally, this unit is Wi-Fi enabled and works with the Comfort App, allowing for remote operation.

• Cools areas up to one thousand five hundred square feet.
• Includes a Dual Barrier Coating to minimize dust and contaminants.
• Functions effectively in low ambient environments down to minus one degree Fahrenheit.

Product Highlights

This system offers efficient cooling for residential or commercial spaces, ensuring comfort in warmer climates. The advanced inverter technology allows for precise temperature control, optimizing energy use.

Product Information

Standard Information

• Operating Mode: Cooling Only
• Number of Zones: 1

Technical Specifications

• Brand: Mitsubishi
• Product Line: GX Series
• Model Number: MUY-GX36NL
• System Capacity: 36,000 BTU
• Cooling Capacity up to: 33,800 BTU
• SEER2: 18.5
• EER2: 8.4
• Refrigerant Type: R-454B
• Input Voltage: 208/230V
• Compressor Stage: Inverter
• Noise Level dB(A), Cooling: 30-37-41-48-53
• Cooling Minimum Temp: -1 F
• WiFi Enabled: Yes with Comfort App
• Suction Valve Size (Inches): 5/8
• Liquid Valve Size (Inches): 1/4
• Outdoor Unit Width (Inches): 33 1/16
• Outdoor Unit Height (Inches): 34 5/8
• Indoor Unit Dimensions: 43 5/16 W x 9 D x 12 13/16 H
