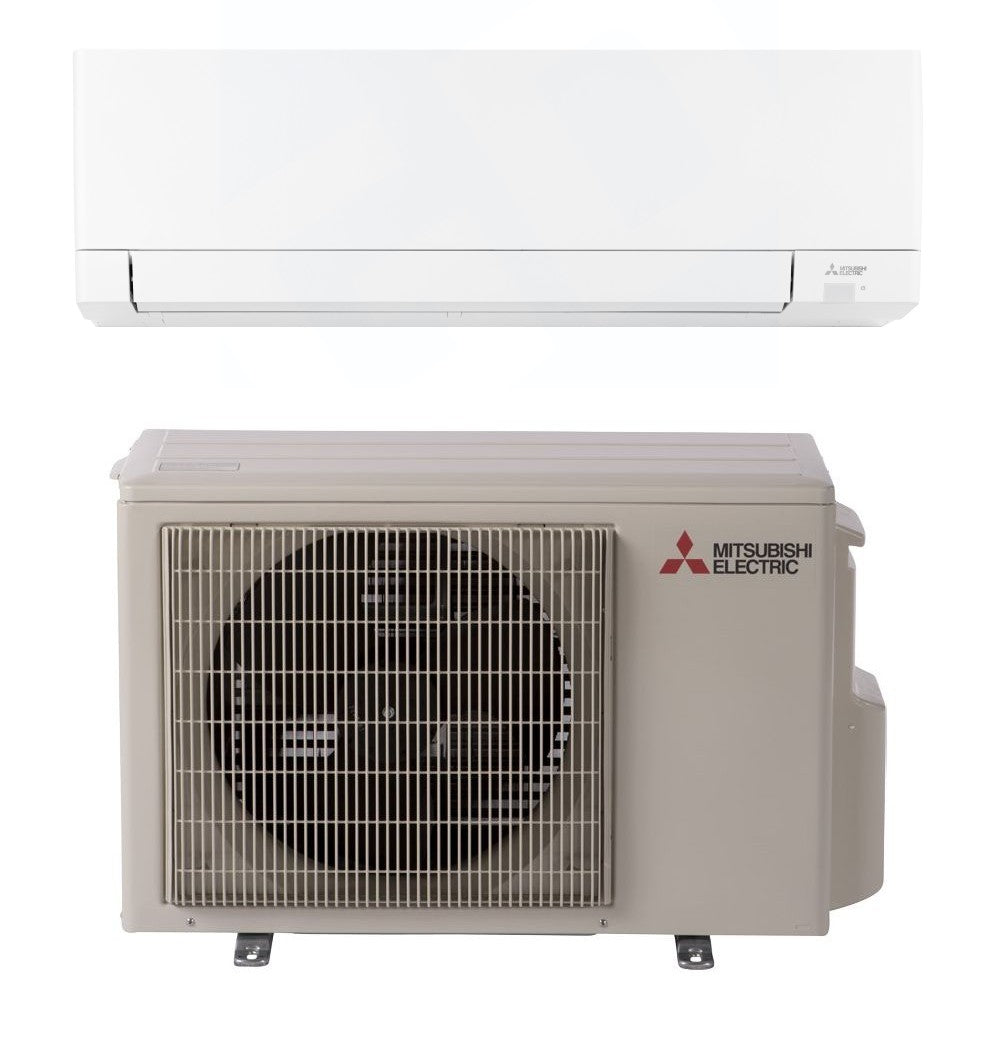

MITSUBISHI ELECTRIC SINGLE-ZONE COOLING-ONLY SYSTEMS MUY-GX12NL+MSY-GX12NL - BTU 12000 - SEER 25.6 - R454B

Product Description

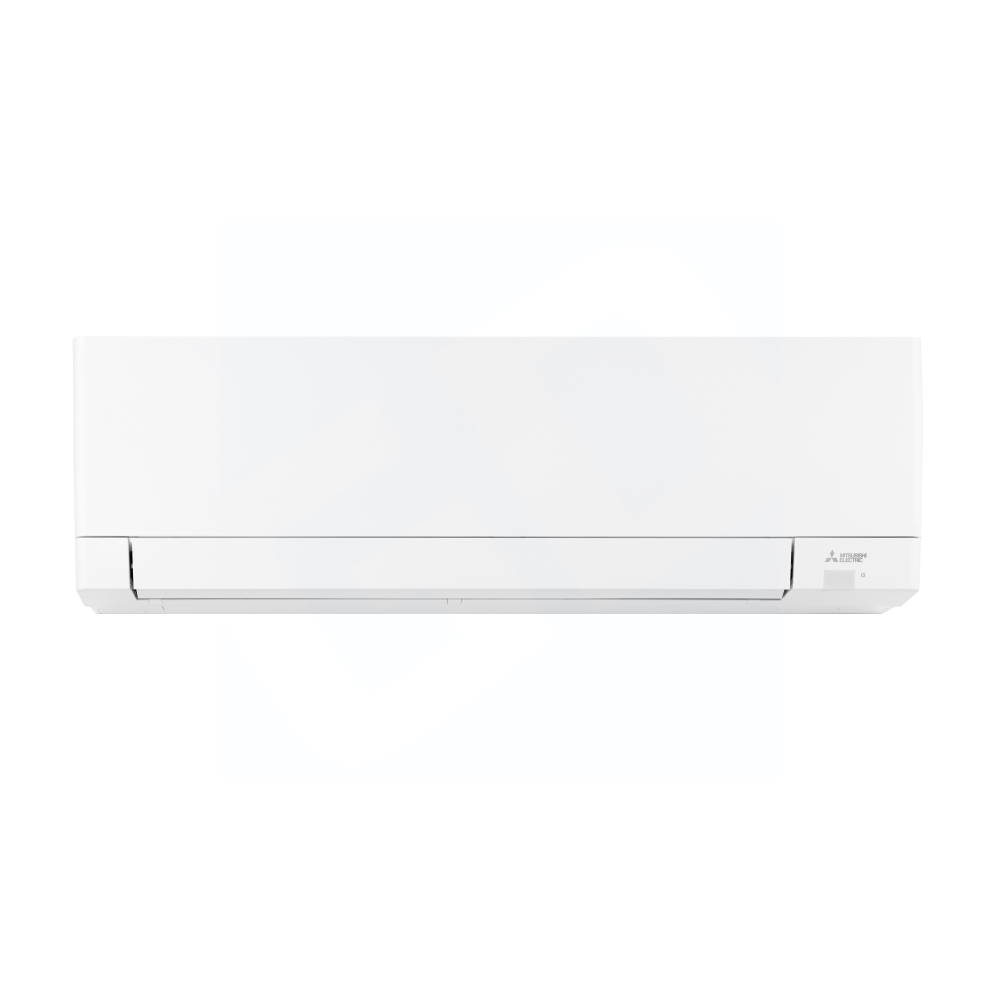

The Mitsubishi Electric MSY-GX12NL is a wall-mounted air handler designed for cooling environments. This unit operates with R-454B refrigerant and is suitable for indoor use. The MSY-GX12NL supports 208/230 volts and comes with a wireless remote control for ease of use. Its compatibility with the Comfort App allows users to control the system through smartphones or web browsers.

• Wall mounted unit for single-zone cooling
• Operates with R-454B refrigerant and requires 208/230V
• Includes a wireless remote and filter for allergen management

Product Highlights

This model excels in delivering efficient cooling with a sleek design, perfect for residential or small commercial applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSY-GX12NL

Technical Specifications

• Product Line: GX Series
• Type: Wall Mounted
• Operating Mode: Cooling Only
• Cooling Capacity: 12000 BTU
• Refrigerant Type: R-454B
• Noise Level dB(A): 19-45
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Remote Control: Wireless
• WiFi Enabled: Yes
• Product Weight: 23 Pounds

Product Description

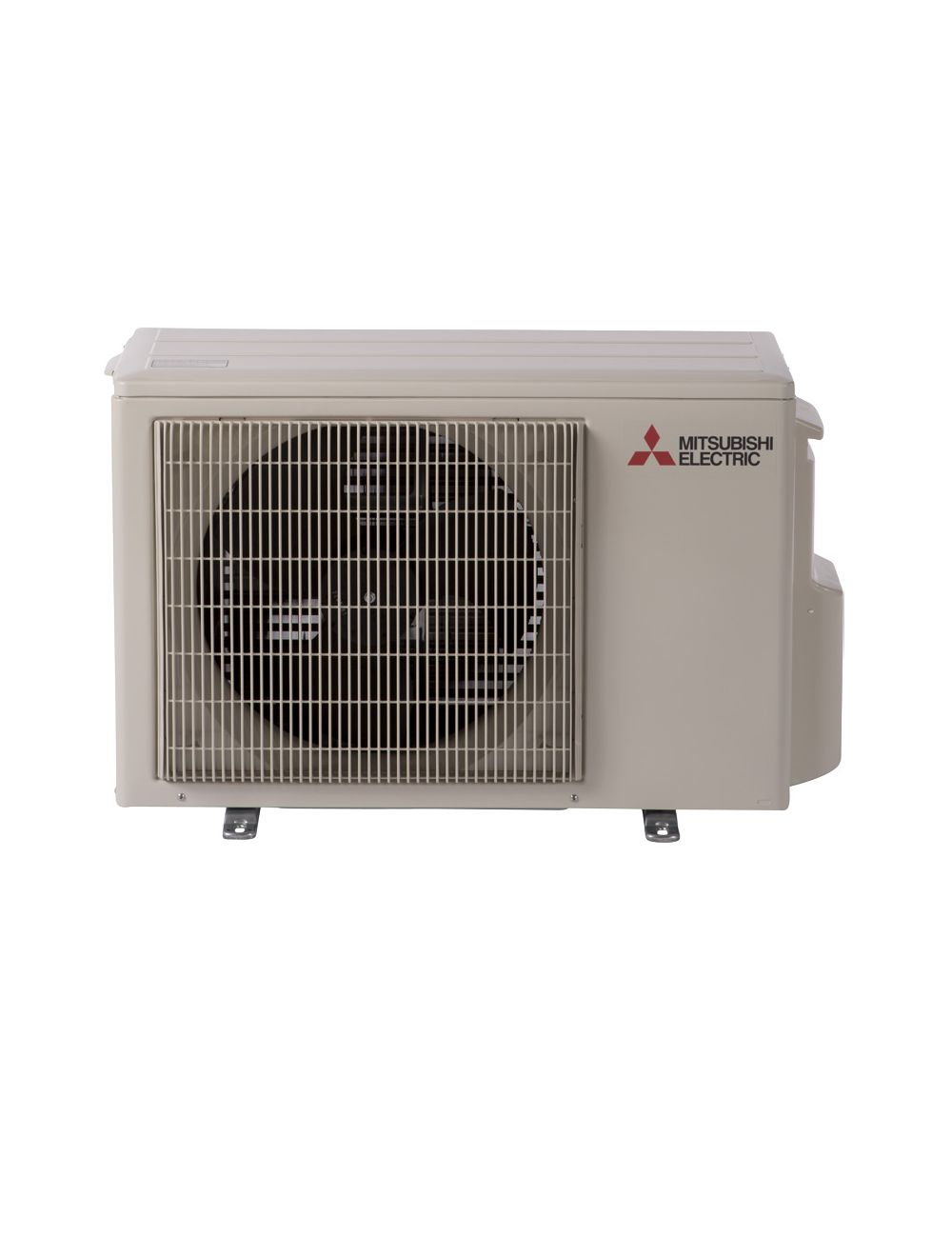

The Mitsubishi Electric MUY-GX12NL is a dedicated outdoor condenser unit for mini-split systems that operate in cooling mode. It is suitable for single-zone applications and delivers a cooling capacity of 12,000 BTU. This unit features advanced inverter technology which ensures effective temperature management while maintaining a low noise level. The Blue Fin coating protects the unit from corrosion, enhancing its durability. The refrigerant used in this system is R-454B, which meets current environmental standards.

• Cooling capacity of 12,000 BTU.
• Inverter-driven compressor for enhanced efficiency.
• Blue Fin coating for increased corrosion resistance.

Product Highlights

The MUY-GX12NL provides reliable and efficient cooling for various applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUY-GX12NL

Technical Specifications

• Product Line: GX Series
• Operating Mode: Cooling Only
• Number of Zones: 1
• System Capacity: 12000 BTU
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 21 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Width: 31.5 Inches
• Product Depth: 11.25 Inches
• Product Height: 21.625 Inches
• Product Weight: 77 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Maximum Sound Level: 49 dB
