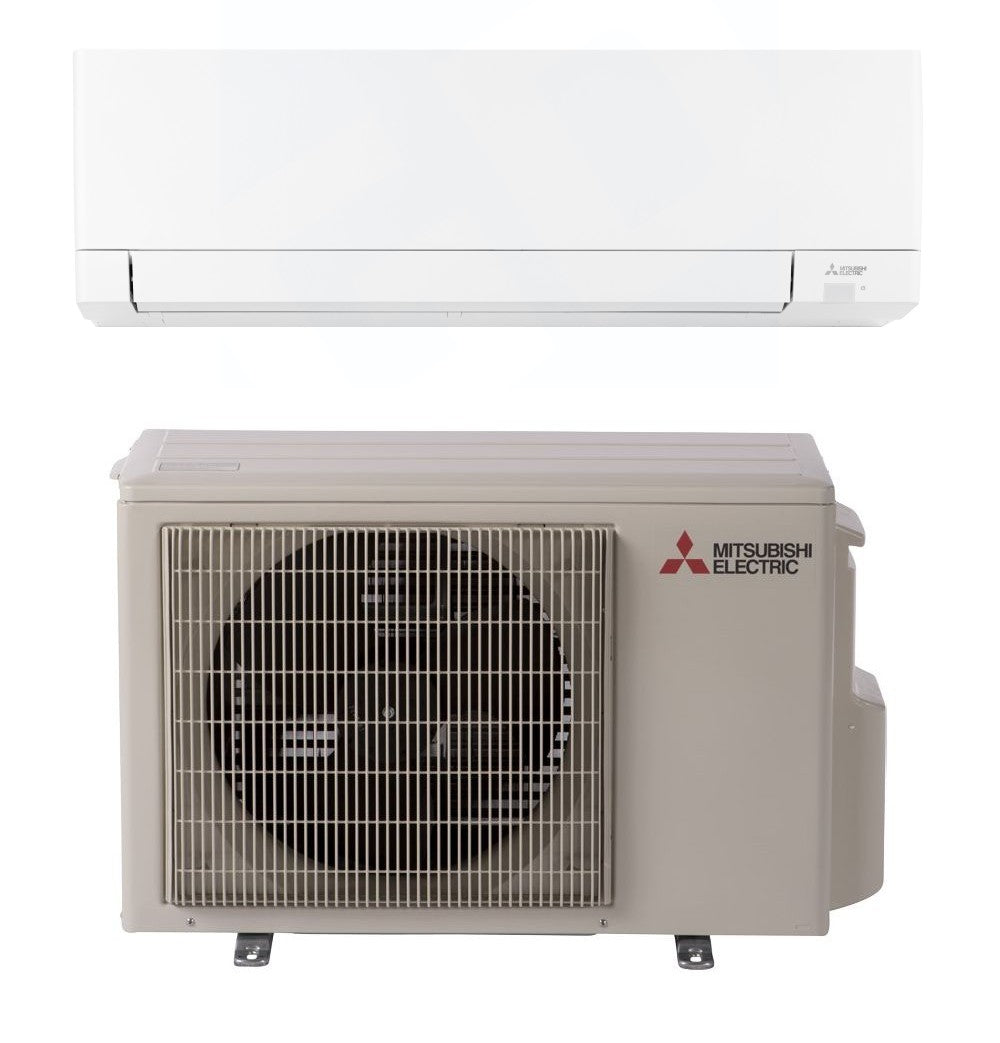

MITSUBISHI ELECTRIC SINGLE-ZONE COOLING-ONLY SYSTEMS MUY-GX09NL+MSY-GX09NL - BTU 9000 - SEER 28.4 - R454B

Product Description

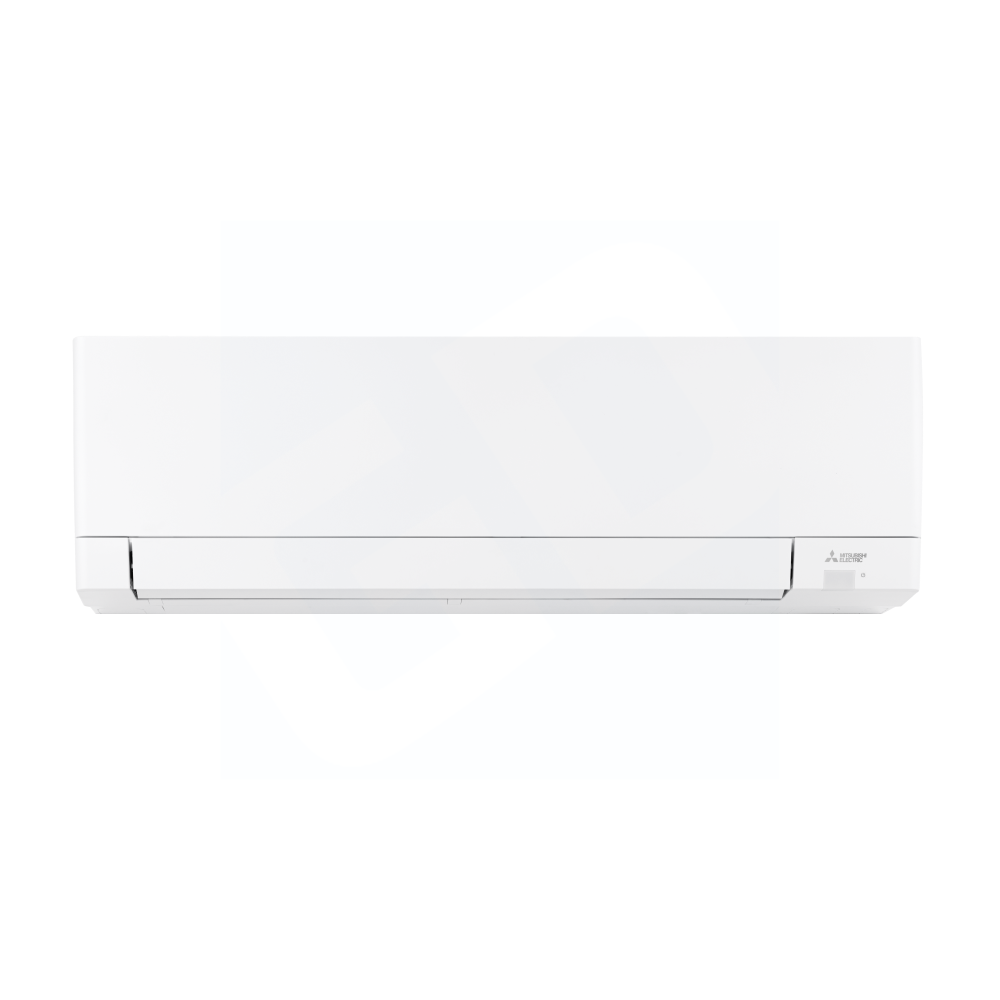

The Mitsubishi Electric MSY-GX09NL is a wall-mounted, single-zone cooling-only mini-split indoor unit. It offers a cooling capacity of nine thousand BTU, designed for efficient cooling in indoor environments. This unit includes multiple operating modes, adjustable fan speeds, and variable airflow directions for comfort control. Compatible with the Comfort App, it also features a wireless remote control for easy operation.

• Cooling capacity of nine thousand BTU.
• Operates in cooling only mode.
• Requires 208/230 Volts, 60 Hz, single-phase power supply.

Product Highlights

This unit provides effective cooling and energy efficiency, operating quietly with low sound levels. It uses R-454B refrigerant and is suitable for residential or small commercial applications.

Product Information

Standard Information

• Product Line: GX-Series
• Multi-Zone Compatible: No

Technical Specifications

• Refrigerant Type: R-454B
• Cooling Capacity: 9000 BTU
• Moisture Removal: 0.8 Pints/Hour
• Maximum Air Flow: 448 CFM
• Minimum Sound Level: 19 dB
• Input Voltage: 208/230 Volts
• Product Height: 11 37/48 inches
• Product Width: 31 19/48 inches
• Product Depth: 9 31/48 inches
• Weight: 23 pounds
• Remote Control: Wireless
• WiFi Enabled: Yes with Comfort App
• Cooling Minimum Temp: -1°F
• ETL Listed: Yes
• AHRI Certified: Yes

Product Description

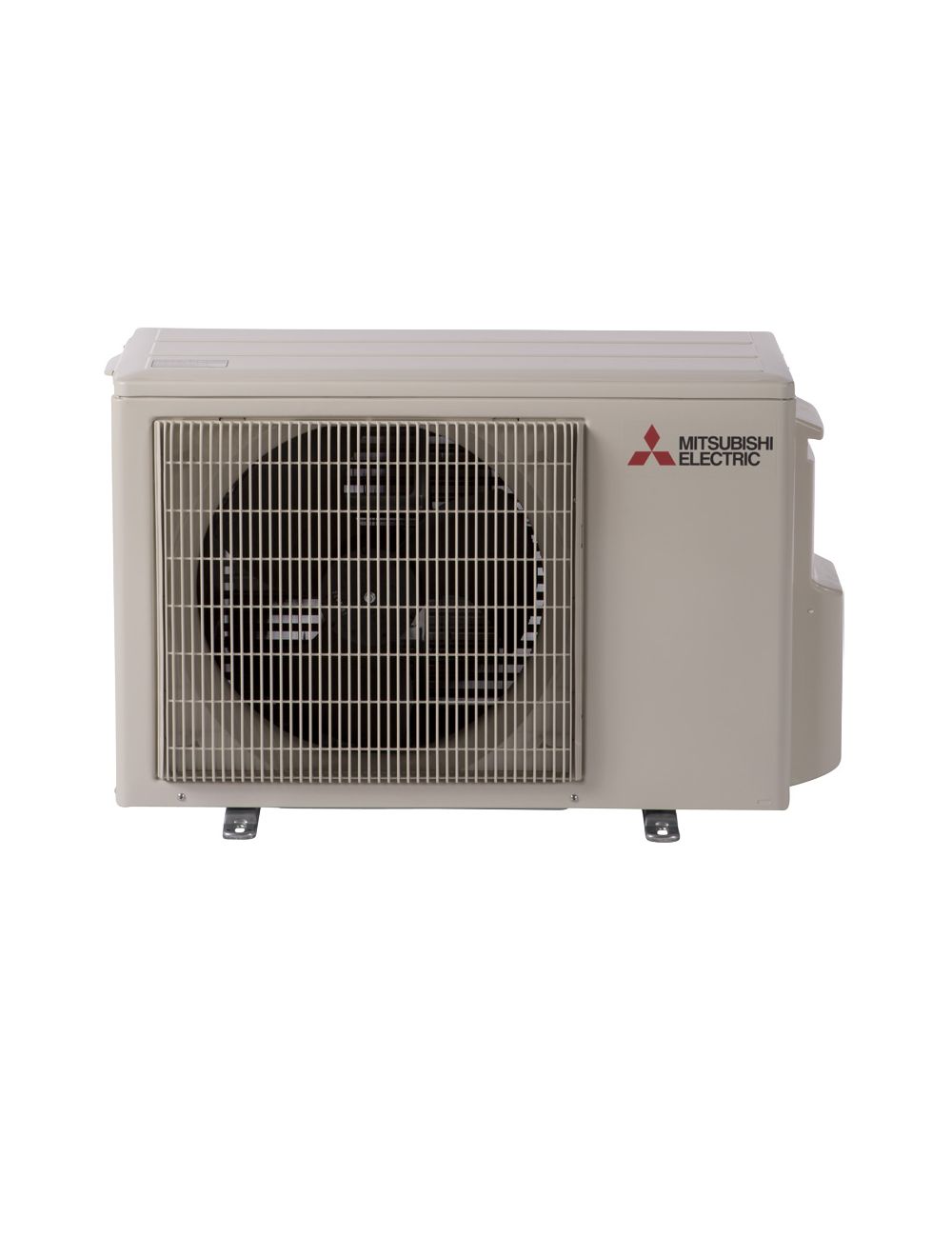

The Mitsubishi Electric MUY-GX09NL is an outdoor condenser suitable for single-zone mini-split systems. This unit is designed to provide efficient cooling for residential environments. It incorporates inverter technology along with an electronic linear expansion valve, ensuring precise temperature control and energy efficiency. Utilizing R-454B refrigerant, this condenser operates effectively while minimizing environmental impact. The unit also features a blue fin coating that enhances corrosion resistance, ensuring durability.

• Designed for single-zone cooling applications.
• Inverter technology supports efficient operation.
• Blue fin condenser coating protects against corrosion.

Product Highlights

This outdoor condenser is ideal for residential settings where efficient, single-zone cooling is required.

Product Information

Standard Information

• Product Line: GX-Series
• Product Category: Mini Split System Components

Technical Specifications

• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling Capacity: 9000 BTU
• Maximum Sound Level: 48 dB
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 12 Amps
• Recommended Breaker Size: 21 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21 5/8 Inches
• Product Width: 31 1/2 Inches
• Product Depth: 11 1/4 Inches
• Product Weight: 77 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Cooling CFM Rating: 1152 cfm
• EER Rating: 15.4
• SEER Rating: 28.4
• Fuse Rating: 15 A
• Power Rating: 585 W
• Drive Type: Inverter
• Cooling Operating Temperature: 14 to 115 deg F
