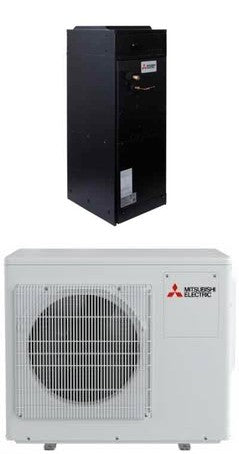

MITSUBISHI ELECTRIC Single-Zone Bundle SVZ-KP24NA+SUZ-KA24NA2.TH - BTU 25000 - SEER 18 - R410A

Product Description

The Mitsubishi SVZ-KP24NA is a ducted air handler designed for effective heating and cooling in large spaces. With a cooling capacity of twenty-four thousand BTU, it incorporates advanced features for efficient operation.

• Energy-efficient ECM blower motor
• Positive pressure cabinet with minimal air leakage
• Removable blower for easy maintenance

Product Highlights

This air handler is suitable for both new installations and system replacements. It can be installed either vertically or horizontally, allowing flexibility in various environments.

Product Information

Standard Information

• Brand: Mitsubishi
• Type: Ducted Air Handler

Technical Specifications

• Cooling Capacity: 24000 BTU
• Heating Capacity: 14600 to 28000 BTU
• Air Flow: 515 to 735 CFM
• Noise Level: 30 to 38 dB
• Dimensions: 39 13/16 x 17 x 21 5/8 inches
• Weight: 106 pounds
• Voltage: 208-230 VAC
• Refrigerant: R-410A
• ETL Listed: Yes

Product Description

The Mitsubishi SUZ-KA24NA2.TH is an outdoor unit designed for residential and light commercial environments. It is part of the M-Series and offers a cooling capacity of 24,000 BTUs, making it suitable for various spaces. With an energy efficiency rating of 18 SEER, it helps reduce energy costs while maintaining comfort. This unit operates at a voltage of 208/230V and is single-phase, making installation straightforward.

• Cooling capacity of 24,000 BTUs
• Energy efficiency of 18 SEER
• Single-phase operation at 208/230V

Product Highlights

The SUZ-KA24NA2.TH features high-performance technology for enhanced efficiency and reliability.

Product Information

Standard Information

• Brand: Mitsubishi
• Model Number: SUZ-KA24NA2.TH

Technical Specifications

• Cooling Capacity: 24,000-25,300 BTU/h
• SEER Rating: 18
• Weight: 141.1 lbs
• Voltage: 208/230V
• Dimensions: 34-5/8 x 33-1/16 x 13 inches
• Refrigerant: R410A
• CFM: 1,930-2,020
• Maximum Piping Height: 100 feet
• Liquid Line Size: 3/8 inches
• Suction Line Size: 5/8 inches
