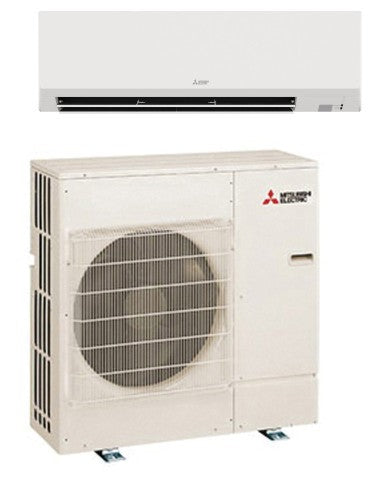

MITSUBISHI ELECTRIC Single-Zone Bundle PKA-A36KA8+PUZ-A36NKA7 - BTU 38000 - SEER 18.8 - R410A

Product Description

The Mitsubishi PKA-A36KA8 is a wall-mounted indoor unit designed for single zone application with a cooling capacity of 36,000 BTU. This efficient unit requires a compatible outdoor condenser for operation. Mitsubishi has a solid reputation in mini split systems, focusing on efficient and user-friendly solutions.

• Hot-Start technology prevents cold drafts by delaying fan operation.
• Dehumidification mode removes moisture to improve indoor air quality.
• Vane control provides four horizontal positions for optimal air flow.

Product Highlights

This indoor unit is suited for residential and commercial applications. It includes innovative features for air handling and temperature control.

Product Information

Standard Information

• Type: Wall Mounted
• Product Line: P-Series

Technical Specifications

• Cooling BTU: 36,000
• Heating BTU: 40,000
• Voltage: 208/230 Volts
• Phase: 1
• CFM: 705 - 920
• Sound Level: 43 - 49 dB
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch

Product Description

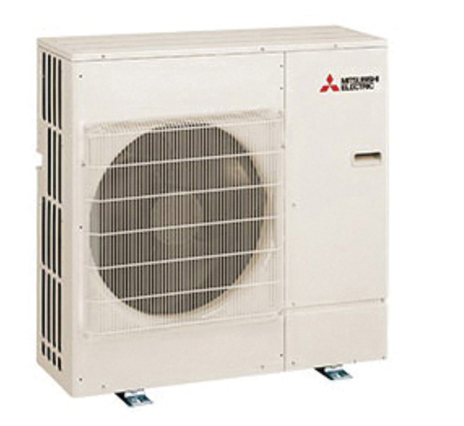

The Mitsubishi PUZ-A36NKA7 is an outdoor condenser heat pump designed for use with compatible indoor units. This unit provides efficient heating and cooling solutions for residential applications. With over 50 years of experience, Mitsubishi remains a leader in the mini-split industry, known for innovative, reliable products.

• Inverter technology for precise temperature control.
• Anti-rust coating for extended durability in harsh conditions.
• Requires additional installation accessories.

Product Highlights

This model features advanced inverter technology, ensuring high efficiency and comfort while minimizing energy consumption.

Product Information

Standard Information

• Product Line: P-Series
• Type: Outdoor Condenser

Technical Specifications

• Cooling Capacity: 36000 BTU
• Heating Capacity: 40000 BTU
• Voltage: 208/230 Volts
• Dimensions: 52 3/4 x 41 5/24 x 14 Inches
• Weight: 214 Pounds
• Refrigerant Type: R-410A
• Sound Level: 52 dB
• Warranty: 10 years (installation required by licensed contractor)
