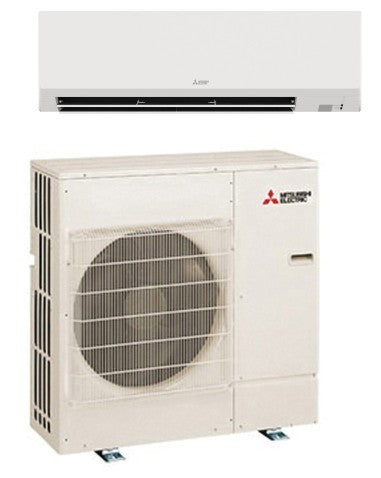

MITSUBISHI ELECTRIC Single-Zone Bundle PKA-A36KA8+PUY-A36NKA7 - BTU 36000 - SEER 18.8 - R410A

Product Description

The Mitsubishi PKA-A36KA8 is a wall-mounted indoor unit designed for single zone application with a cooling capacity of 36,000 BTU. This efficient unit requires a compatible outdoor condenser for operation. Mitsubishi has a solid reputation in mini split systems, focusing on efficient and user-friendly solutions.

• Hot-Start technology prevents cold drafts by delaying fan operation.
• Dehumidification mode removes moisture to improve indoor air quality.
• Vane control provides four horizontal positions for optimal air flow.

Product Highlights

This indoor unit is suited for residential and commercial applications. It includes innovative features for air handling and temperature control.

Product Information

Standard Information

• Type: Wall Mounted
• Product Line: P-Series

Technical Specifications

• Cooling BTU: 36,000
• Heating BTU: 40,000
• Voltage: 208/230 Volts
• Phase: 1
• CFM: 705 - 920
• Sound Level: 43 - 49 dB
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch

Product Description

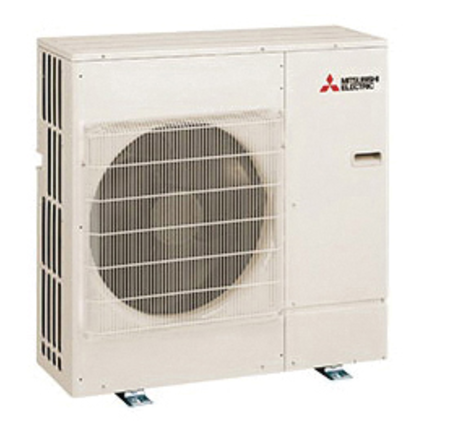

Mitsubishi PUY-A36NKA7 is a ductless outdoor cooling unit designed for efficient performance in light commercial applications. This model operates at 36,000 BTUs and achieves an impressive 19.3 SEER rating, making it suitable for various cooling needs.

• Capacity: 36,000 BTUs
• High efficiency with a SEER of 19.3
• Durable galvanized steel construction

Product Highlights

This outdoor unit is fully assembled before shipping, ensuring high reliability and performance in the field. Its inverter-driven technology allows for energy-efficient cooling by adjusting compressor speed. The unit includes advanced features like electronic linear expansion valves for precise refrigerant flow.

Product Information

Standard Information

• Brand: Mitsubishi
• Product Family: PUY-A

Technical Specifications

• Cooling Capacity: 36,000 BTU
• SEER: 19
• EER: 11
• Voltage: 208-230 VAC
• Weight: 240.3 lbs
• Width: 42.9 inches
• Height: 56.2 inches
• Length: 17.7 inches
• Refrigerant: R-410A
• Number of HVAC Zones: 1
• Maximum Piping Length: 225 feet
• Maximum Piping Height: 100 feet
