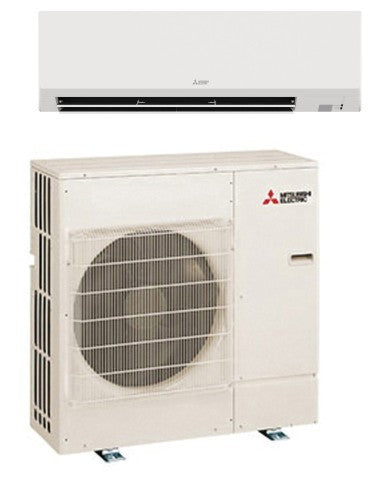

MITSUBISHI ELECTRIC Single-Zone Bundle PKA-A24KA8+PUY-A24NHA7 - BTU 24000 - SEER 21.4 - R410A

Product Description

The Mitsubishi PKA-A24KA8 is a 24,000 BTU wall-mounted indoor unit designed for efficient heating and cooling. This unit is part of the P-Series and operates in conjunction with a compatible outdoor condenser. Mitsubishi has a reputation built over 50 years in the mini split market for reliable comfort solutions.

• Hot-Start technology prevents cold drafts during heating.
• Dehumidification reduces moisture, helping prevent mold growth.
• Vane control allows for optimal air flow in various settings.

Product Highlights

This product is ideal for residential applications where ductless solutions are preferred. It offers precise temperature control and improved indoor air quality.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: PKA-A24KA8

Technical Specifications

• Cooling Capacity: 24,000 BTU
• Heating Capacity: 28,000 BTU
• Voltage: 208/230 Volts
• Max Air Flow: 775 CFM
• Min Air Flow: 635 CFM
• Sound Level: 39 dB to 45 dB
• Product Width: 46 1/16 Inches
• Product Height: 14 3/8 Inches
• Product Depth: 11 5/8 Inches
• Weight: 46 Pounds

Product Description

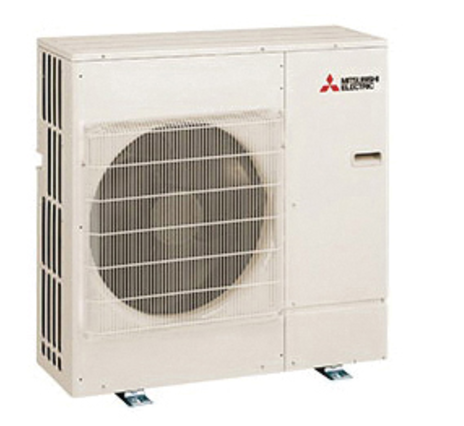

The Mitsubishi PUY-A24NHA7 is a ductless outdoor condenser designed for cooling applications. This unit operates at a cooling capacity of 24000 BTU and is meant to be paired with a compatible indoor air handler for optimal performance.

• Inverter-driven compressor for energy efficiency and precise temperature control.
• Built with a seacoast protected condenser to resist harsh environments.
• 10-year limited warranty for peace of mind when installed by a licensed contractor.

Product Highlights

This outdoor condenser features advanced inverter technology, which adjusts performance based on the cooling needs of the space, ensuring effective energy use and comfort.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: PUY-A24NHA7

Technical Specifications

• Cooling Capacity: 24000 BTU
• SEER Rating: 21
• Dimensions: 37-1/8 inches (Height) x 40.9 inches (Width) x 14 inches (Depth)
• Weight: 176 pounds
• Electrical Requirements: 208/230V, 1 Phase, 60 Hz
• Refrigerant Type: R-410A
• Sound Level: 47 dB
• Compressor Type: Inverter-driven
• Protection Rating: ETL Listed
