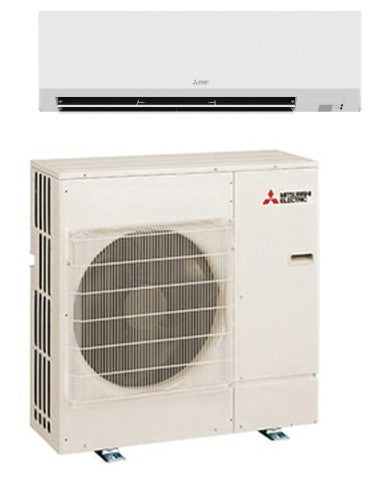

MITSUBISHI ELECTRIC Single-Zone Bundle PKA-A18LA1+PUZ-A18NKA7 - BTU 19000 - SEER 18.5 - R410A

Product Description

The Mitsubishi PKA-A18LA1 is a wall-mounted indoor unit designed for single-zone heating and cooling applications. This unit operates efficiently in both heating and cooling modes, making it suitable for various residential settings.

• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 22,000 BTU/h
• Voltage: 208/230 Volts

Product Highlights

This indoor unit features hot-start technology, which prevents cold drafts during operation. In dry mode, the dehumidification function helps maintain comfort by removing excess moisture from the air.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: PKA-A18LA1

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 22,000 BTU
• Power Supply: 208/230 Volts
• Dimension Width: 35 and 17/48 Inches
• Dimension Height: 11 and 37/48 Inches
• Dimension Depth: 9 and 17/48 Inches
• Weight: 28 Pounds
• Sound Level: 34-48 dBA
• Refrigerant Type: R-410A
• Installation: Wall-mounted

Product Description

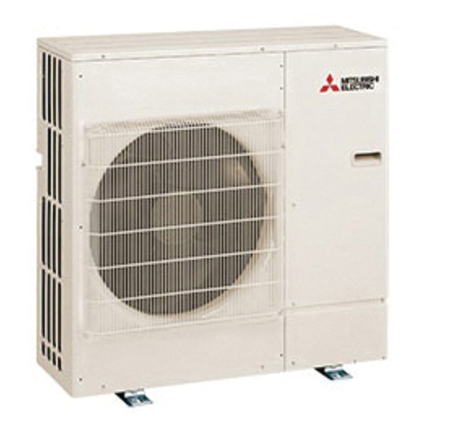

The Mitsubishi PUZ-A18NKA7 is a powerful outdoor heat pump designed for use in ductless mini split systems. This model operates on eighteen thousand BTU and belongs to the P-Series line, offering reliable heating and cooling performance suitable for residential and light commercial applications.

• Precision temperature control for efficient operation.
• Seacoast protected condenser casing for enhanced durability.
• Compatible with various indoor units for flexible installation.

Product Highlights

This unit is equipped with inverter technology, providing efficient and precise temperature control. It features a robust cabinet built for harsh environments, ensuring longevity. The outdoor condenser requires a compatible indoor unit and specific accessories for complete installation.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: PUZ-A18NKA7

Technical Specifications

• Cooling Capacity: 18000 BTU
• Heating Capacity: 22000 BTU
• SEER Rating: 19.9
• Voltage: 208/230 Volts
• Dimensions: 25 inches height x 32 inches width x 11 inches depth
• Weight: 100 pounds
• Refrigerant Type: R-410A
• Warranty: 10 years on parts with registration
