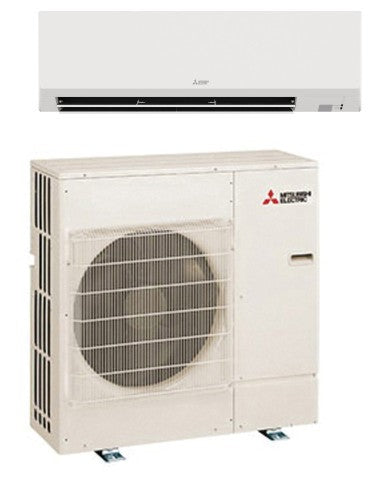

MITSUBISHI ELECTRIC Single-Zone Bundle PKA-A18LA1+PUY-A18NKA7 - BTU 18000 - SEER 18.5 - R410A

Product Description

The Mitsubishi PKA-A18LA1 is a wall-mounted indoor unit designed for single-zone heating and cooling applications. This unit operates efficiently in both heating and cooling modes, making it suitable for various residential settings.

• Cooling Capacity: 18,000 BTU/h
• Heating Capacity: 22,000 BTU/h
• Voltage: 208/230 Volts

Product Highlights

This indoor unit features hot-start technology, which prevents cold drafts during operation. In dry mode, the dehumidification function helps maintain comfort by removing excess moisture from the air.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: PKA-A18LA1

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 22,000 BTU
• Power Supply: 208/230 Volts
• Dimension Width: 35 and 17/48 Inches
• Dimension Height: 11 and 37/48 Inches
• Dimension Depth: 9 and 17/48 Inches
• Weight: 28 Pounds
• Sound Level: 34-48 dBA
• Refrigerant Type: R-410A
• Installation: Wall-mounted

Product Description

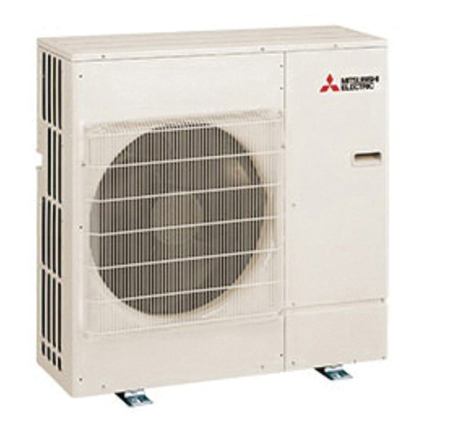

The Mitsubishi PUY-A18NKA7 is an eighteen thousand BTU cooling only outdoor condenser designed for single zone applications. This outdoor unit works best with a compatible indoor unit, ensuring effective climate control for residential or light commercial spaces. Mitsubishi is a leading name in the mini split industry, known for efficiency and reliability.

• Precision temperature control using inverter technology.
• Seacoast protected design with anti-rust coating for durability.
• Energy efficient operation with inverter-driven compressor.

Product Highlights

Utilizes advanced temperature control technology to enhance cooling efficiency while minimizing energy consumption.

Product Information

Standard Information

• Type: Outdoor Condenser
• Product Line: P-Series

Technical Specifications

• Cooling Capacity: 18000 BTU
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Dimensions: 25 inches height x 32 inches width x 11 inches depth
• Weight: 110 pounds
• Refrigerant Type: R-410A
• SEER Rating: 19
• EER Rating: 10
