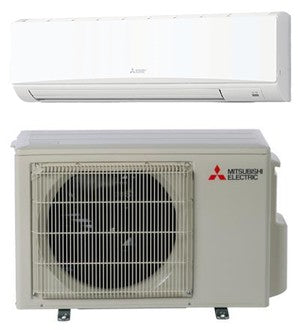

MITSUBISHI ELECTRIC Single-Zone Bundle MSZ-WR24NA-U1+MUZ-WR24NA-U1 - BTU 26000 - SEER 16 - R410A

Product Description

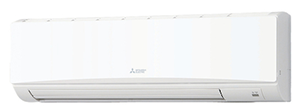

The Mitsubishi MSZ-WR24NA-U1 is an indoor unit designed for single-zone heating and cooling. This model features a cooling capacity of 22,500 to 24,840 BTU/hour and is suitable for various residential applications. It operates efficiently with a SEER rating of 16.

• Cooling Type: Heat Pump
• Power Supply: 230V, Single Phase
• Dimensions: 12 x 36-5/16 x 9-13/16 inches

Product Highlights

This unit is part of the M-Series and provides reliable climate control in residential settings. With an energy-efficient rating, it helps to reduce energy costs while delivering effective heating and cooling.

Product Information

Standard Information

• Brand: Mitsubishi
• Model: MSZ-WR24NA-U1

Technical Specifications

• Type: Indoor Unit
• Voltage: 230V
• Phase: Single
• SEER: 16
• Dimensions: 12 x 36-5/16 x 9-13/16 inches
• Cooling Capacity: 22,500 - 24,840 BTU/h
• Heating Capacity: 15,600 - 26,000 BTU/h
• Refrigerant: R410A
• CFM: 318 - 702
• Sound Level: 32 - 50 dBA
• Mounting Type: Wall-Mount
• Remote Control Included: Yes

Product Description

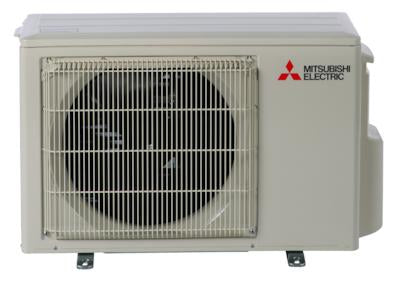

The Mitsubishi MUZ-WR24NA-U1 is an outdoor unit designed for residential HVAC systems. This unit offers efficient cooling and heating power, making it suitable for single-zone applications.

• Cooling capacity of 22,500 to 24,840 BTU/h
• SEER rating of 16 for energy efficiency
• Compatible with R-410A refrigerant

Product Highlights

With a single-phase power requirement and a compact design, this outdoor unit can be easily installed and connection to paired indoor units for optimal climate control in residential settings.

Product Information

Standard Information

• Brand: Mitsubishi
• Model Number: MUZ-WR24NA-U1

Technical Specifications

• Cooling Capacity: 22,500 to 24,840 BTU/h
• Heating Capacity: 15,600 to 26,000 BTU/h
• SEER Rating: 16
• Weight: 146.1 lbs
• Dimensions: 12 x 36.3125 x 9.8125 inches
• Voltage: 208 to 230 VAC
• Refrigerant: R-410A
• Electrical: 230/1
• Number of HVAC Zones: 1
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Phase: Single
• Maximum Piping Length: 100 feet
• Maximum Piping Height: 50 feet
