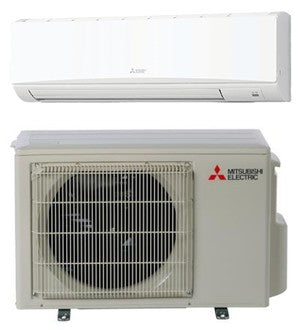

MITSUBISHI ELECTRIC Single-Zone Bundle MSZ-WR18NA-U1+MUZ-WR18NA-U2 - BTU 18000 - SEER 16 - R410A

Product Description

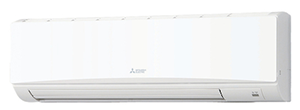

The Mitsubishi MSZ-WR18NA-U1 is a wall-mounted indoor unit designed for heating and cooling. It has a capacity of 18,000 BTUs and a SEER rating of 16. This model is efficient for single-zone applications, making it a suitable choice for residential use.

• Heat Pump Application
• 208/230 VAC Electrical Specifications
• Compatible with R410A Refrigerant

Product Highlights

This indoor unit supports various features such as a single-phase operation and easy installation. It is suitable for those looking for a reliable solution for indoor climate control.

Product Information

Standard Information

• Brand: Mitsubishi
• MPN: MSZ-WR18NA-U1

Technical Specifications

• Cooling Capacity: 18,000–19,872 BTU/h
• Heating Capacity: 12,780–18,000 BTU/h
• SEER: 16
• EER: 10
• CFM: 295–625
• Refrigerant: R-410A
• Voltage: 208/230 VAC
• Electrical: 208/230-1-60
• Dimensions: 12 inches x 36.3125 inches x 9.8125 inches
• Mounting Type: Wall-Mount
• Liquid Line Size: 1/4 inches
• Suction Line Size: 1/2 inches

Product Description

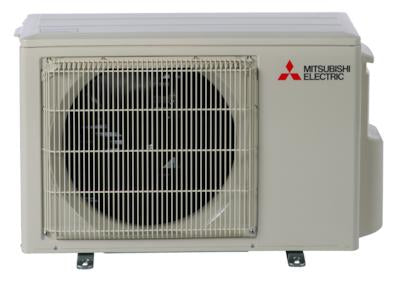

Mitsubishi MUZ-WR18NA-U2 is a heat pump designed for residential use. This unit provides efficient heating and cooling with a capacity of eighteen thousand BTUs and a seasonal energy efficiency ratio of sixteen. This system is ideal for single-zone installations.

• Compact and slim design
• INVERTER-driven compressor with four fan speeds
• Wide temperature operating range

Product Highlights

This outdoor unit is suitable for residential applications and offers reliable performance. It comes with advanced features to improve the user experience, including remote control options and a timer function.

Product Information

Standard Information

• Brand: Mitsubishi
• Part Number: MUZ-WR18NA-U2

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 12,780 BTU
• SEER: 16
• EER: 10
• Voltage: 208-230 VAC
• Weight: 88 lbs
• Dimensions: 39 inches (Height) x 38.56 inches (Length) x 16.56 inches (Width)
• Refrigerant: R-410A
• CFM: 1,243
• AHRI Usage: Outdoor
• Number of HVAC Zones: 1
• Max Piping Length: 65 feet
• Max Piping Height: 40 feet
