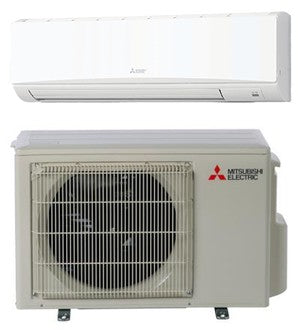

MITSUBISHI ELECTRIC Single-Zone Bundle MSZ-WR09NA-U2+MUZ-WR09NA-U2 - BTU 10900 - SEER 16 - R410A

Product Description

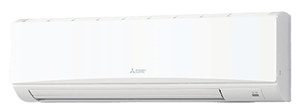

The Mitsubishi MSZ-WR09NA-U2 is a wall-mounted indoor unit designed for residential use. This unit delivers nine thousand BTU cooling capacity with a Seasonal Energy Efficiency Ratio of sixteen. It is suitable for single-zone setups, making it ideal for targeted heating and cooling in individual rooms.

• Heat Pump application for year-round comfort.
• Wall-mount design for space-saving installation.
• Energy efficient with high SEER rating.

Product Highlights

This unit meets the needs of homeowners looking for efficient and reliable climate control within their space.

Product Information

Standard Information

• Brand: Mitsubishi
• Type: Indoor Unit

Technical Specifications

• MPN: MSZ-WR09NA-U2
• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 4,500-11,800 BTU/h
• SEER: 16
• EER: 11
• Voltage: 208-230 VAC
• Phase: Single
• Sound Level: 22-43 dBA
• Refrigerant: R-410A
• Mounting Type: Wall-Mount
• Liquid Line Size: 1/4 inch
• Suction Line Size: 3/8 inch
• Weight: 26 pounds
• Dimensions: 12 inches length x 33.5 inches width x 14 inches height
• Country of Origin: Mexico

Product Description

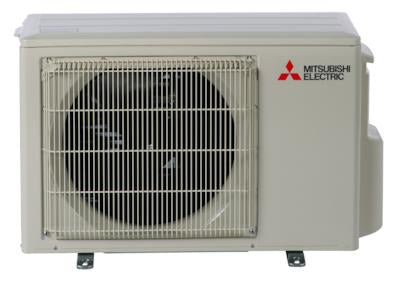

The Mitsubishi MUZ-WR09NA-U2 is a wall-mounted heat pump designed for outdoor use. With a cooling capacity of 9,000 BTU and a SEER rating of 16, it offers efficient year-round climate control. This model features an INVERTER-driven compressor for quiet operation and energy efficiency.

• Compact design for easy installation
• Blue Fin coating protects against corrosion
• Multiple control options available for convenience

Product Highlights

Designed for outdoor installations, the MUZ-WR09NA-U2 provides effective heating and cooling across a range of temperatures. This unit is suitable for various applications, ensuring comfort both in hot and cold climates.

Product Information

Standard Information

• Manufacturer: Mitsubishi Electric Trane
• Product Type: Heat Pump

Technical Specifications

• Cooling Capacity: 9,000 BTU
• Heating Capacity: 5,990 BTU
• Weight: 79 lbs
• Dimensions: 37 inches (L) x 14.94 inches (W) x 24.81 inches (H)
• Refrigerant: R-410A
• SEER Rating: 16
• EER: 11
• Power Supply: 208-230 VAC
• Phase: Single
• Number of HVAC Zones: 1
• Maximum Piping Length: 65 feet
• Maximum Piping Height: 40 feet
• Liquid Line Size: 1/4 inches
• Suction Line Size: 3/8 inches
