MITSUBISHI ELECTRIC Single-Zone Bundle MSZ-GS09NA-U1+MUZ-GS09NA-U1 - BTU 10900 - SEER 27 - R410A

Product Description

The Mitsubishi MSZ-GS09NA-U1 is a wall-mounted heat pump mini split indoor unit. It provides a cooling capacity of nine thousand BTUs and is designed for multi-zone systems. The unit operates quietly, ensuring comfort without excess noise.

• Compatible with various Mitsubishi outdoor units.
• Has advanced filtration with a hybrid filter system for allergens.
• Features multiple operating modes and fan speeds for optimal control.

Product Highlights

This unit offers efficient cooling and heating solutions suitable for residential applications. It adapts to different room sizes while maintaining air quality through effective filtration systems.

Product Information

Standard Information

• Brand: Mitsubishi
• Type: Wall Mounted

Technical Specifications

• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Dimensions: 31 7/16 inches width, 9 1/8 inches depth, 11 5/8 inches height
• Weight: 23 pounds
• Refrigerant Type: R-410A
• Sound Level: 19-43 dB
• Air Flow: 134-381 CFM
• Moisture Removal: 0.4 pints/hour

Product Description

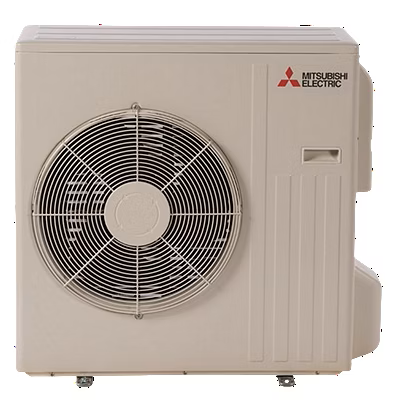

The Mitsubishi MUZ-GS09NA-U1 is a 9,000 BTU outdoor condenser designed for single zone application. This efficient unit requires a compatible indoor unit for operation. Mitsubishi has over 50 years of experience in the industry, providing effective comfort solutions.

• Equipped with inverter technology
• Features an anti-rust Blue Fin condenser
• Operates with high energy efficiency

Product Highlights

The MUZ-GS09NA-U1 uses advanced temperature control technology to adjust compressor speed and refrigerant flow for optimal performance. The Blue Fin coating enhances durability against environmental factors.

Product Information

Standard Information

• Brand: Mitsubishi
• Type: Outdoor Condenser

Technical Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 10,900 BTU/h
• Voltage: 208-230 Volts
• Dimensions: 31 1/2 inches (W) x 11 1/4 inches (D) x 21 5/8 inches (H)
• Weight: 79 pounds
• Refrigerant Type: R-410A
• Warranty: 10 years (requires registration)
• Minimum Outdoor Temperature for Cooling: 14°F
• Maximum Line Length: 65 feet
