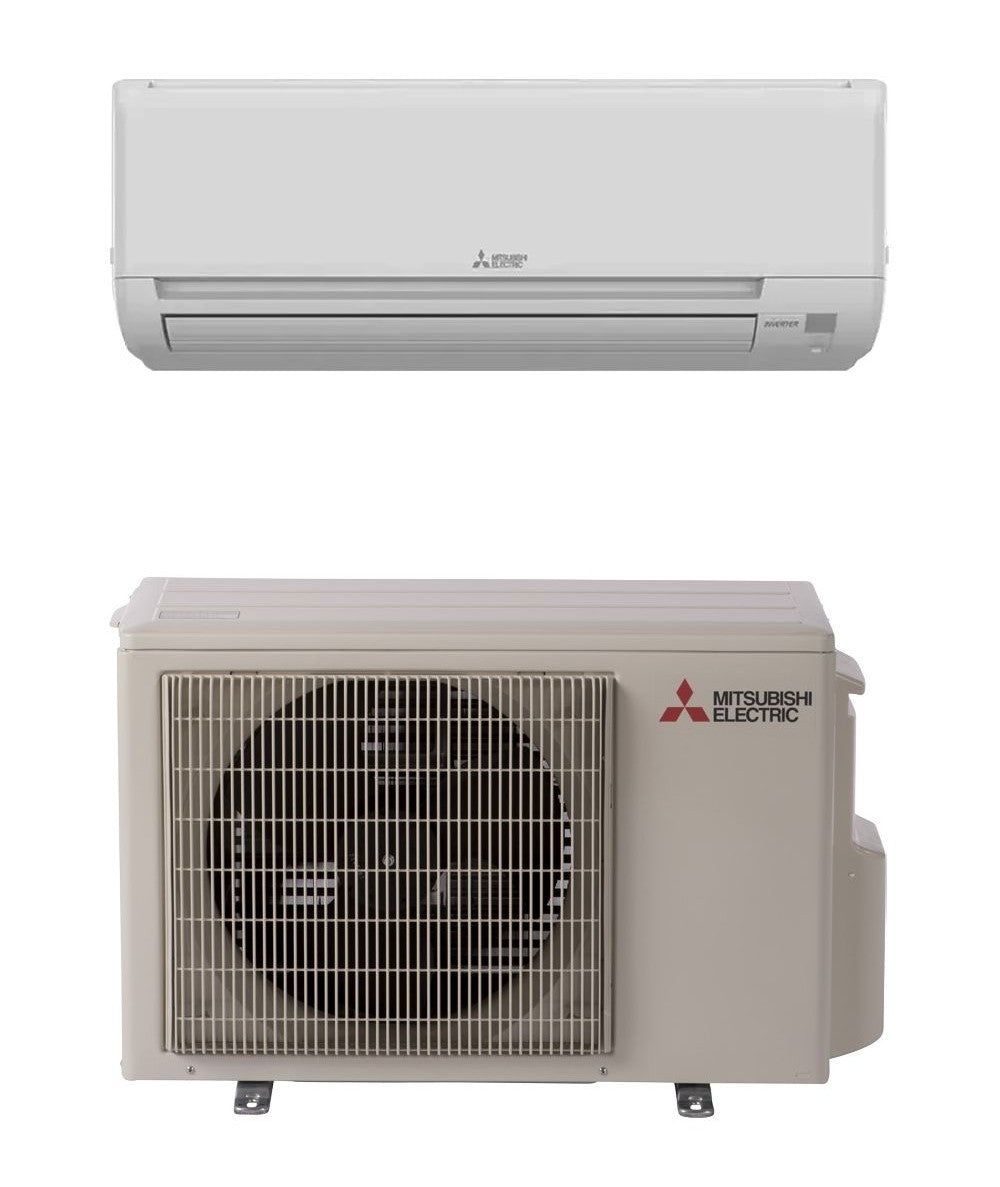

MITSUBISHI ELECTRIC SINGLE-ZONE 18 SEER2 HEAT PUMP SYSTEMS MUZ-WX24NL+MSZ-WX24NL - BTU 24000 - SEER 18 - R454B

Product Description

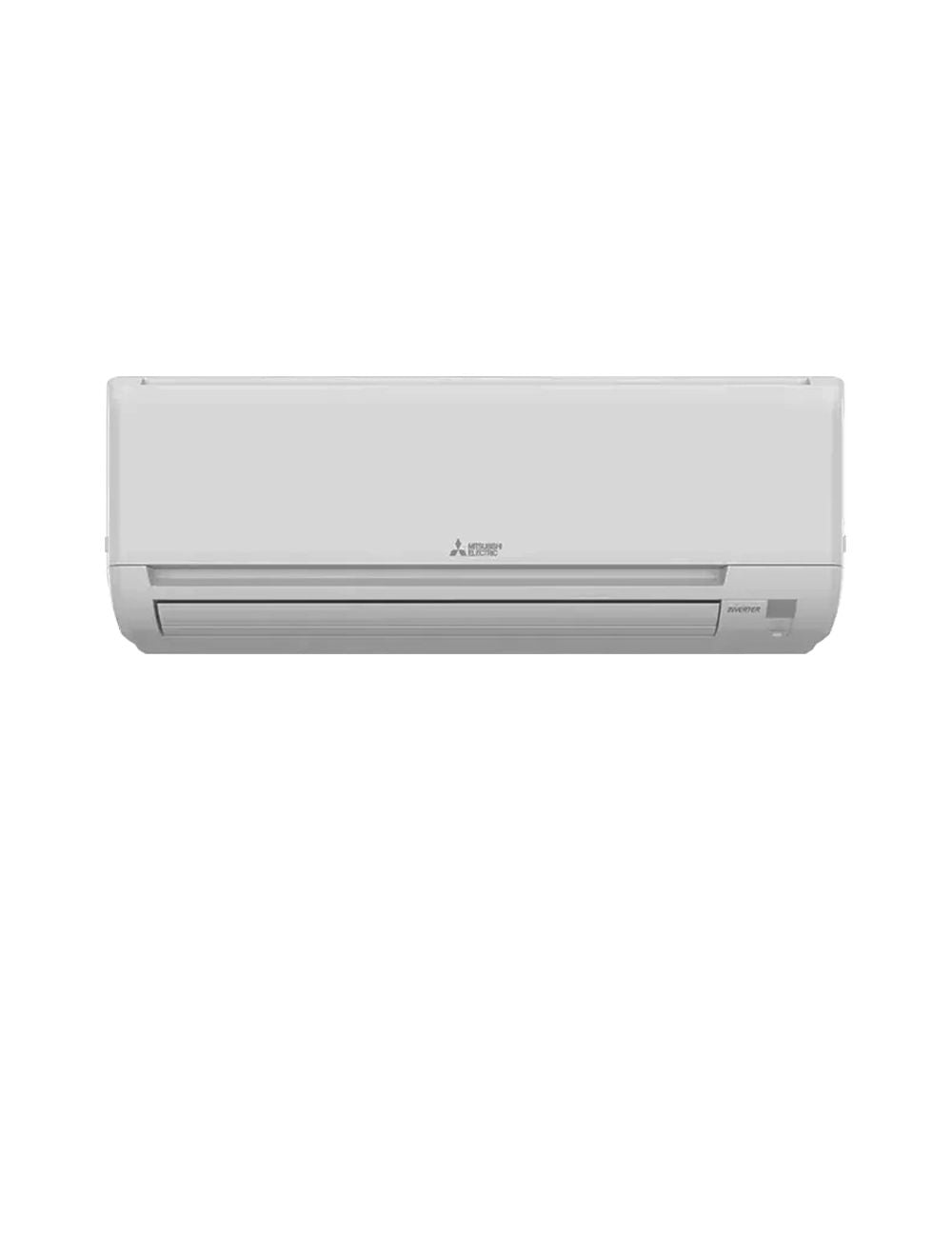

The Mitsubishi Electric MSZ-WX24NL is a ductless mini-split indoor unit designed for single-zone applications. It offers both cooling and heating functions using R-454B refrigerant. This unit is equipped with multiple fan speeds and includes advanced filtration options such as an electrostatic enzyme filter and a nano platinum filter. The wall-mounted design is ideal for various settings and operates on 208/230V power.

• Cools with 22,400 BTU/hr and heats with 26,000 BTU/hr.
• Features 4 fan speeds and has an operational sound level of 50 dBA.
• Includes Econo Cool and Smart Dry Mode for energy-efficient performance.

Product Highlights

This unit is suitable for rooms up to 1,000 square feet and maintains comfort across various environments.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-WX24NL

Technical Specifications

• Unit Type: Single Zone
• Product Line: WX Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Cooling Minimum Temperature: -1 F
• Heating Minimum Temperature: -14 F
• Room Capacity: 1,000 sq ft
• Airflow Cooling CFM: 322-622
• Airflow Heating CFM: 335-698
• Noise Level dB(A): 33-50
• Overall Dimensions: 36-5/16 in x 10-5/16 in x 12 in
• Line Set Size: 1/4 x 1/2
• Refrigerant: R-454B
• Input Voltage: 208/230 V
• Power Rating: 2,800 W Cooling, 2,680 W Heating
• Number of Fan Speeds: 4
• WiFi Enabled: Yes, with Comfort App

Product Description

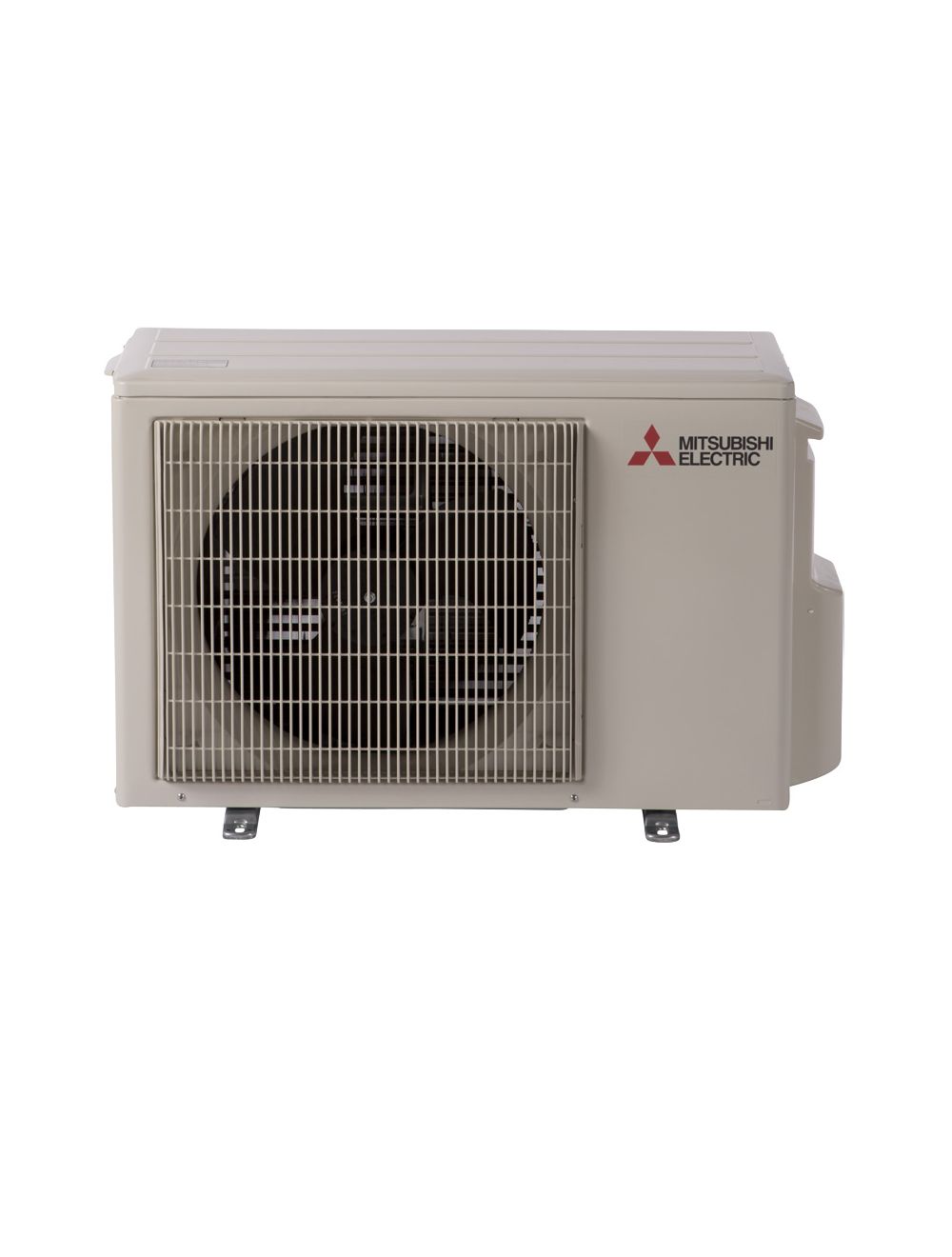

The Mitsubishi Electric MUZ-WX24NL is an outdoor unit for wall-mounted mini-split systems. It operates as a heat pump, providing both cooling and heating. The unit includes an INVERTER-driven compressor that adjusts its capacity to keep the desired temperature. It is designed for seamless operation with an automatic restart feature in case of power loss. Additionally, it has a Blue Fin coating that protects the heat exchanger's aluminum fins from corrosion.

• Functions as an outdoor unit for mini-split systems.
• Provides up to 22,400 BTU/H of cooling and heating.
• Features an anti-corrosion Blue Fin coating.

Product Highlights

The unit ensures energy efficiency with a SEER rating of 18, making it suitable for various climate conditions.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: MUZ-WX24NL

Technical Specifications

• Type: Heat Pump
• Zones: 1-Zone
• Cooling BTU: 22,400
• Heating BTU: 22,400
• Voltage: 208/230V
• Refrigerant Type: R-454B
• Min. Operating Temp.: -4°F
• Outdoor Unit Dimensions: 31.5 W x 11.25 D x 28.125 H inches
• Total Shipping Weight: 149 lbs.
• Parts Warranty: 10 years
• Compressor Warranty: 10 years
