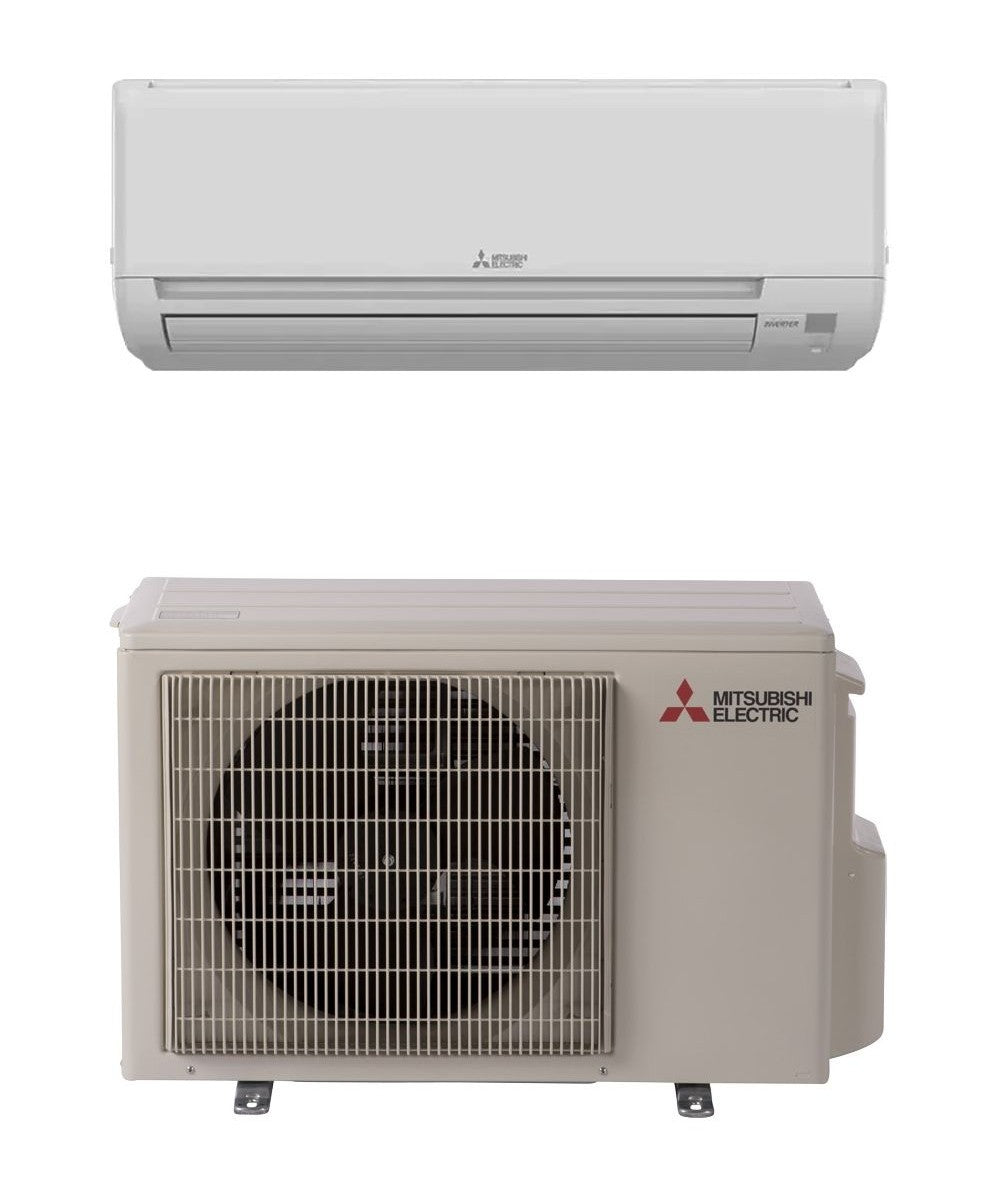

MITSUBISHI ELECTRIC SINGLE-ZONE 18 SEER2 HEAT PUMP SYSTEMS MUZ-WX18NL+MSZ-WX18NL - BTU 18000 - SEER 18 - R454B

Product Description

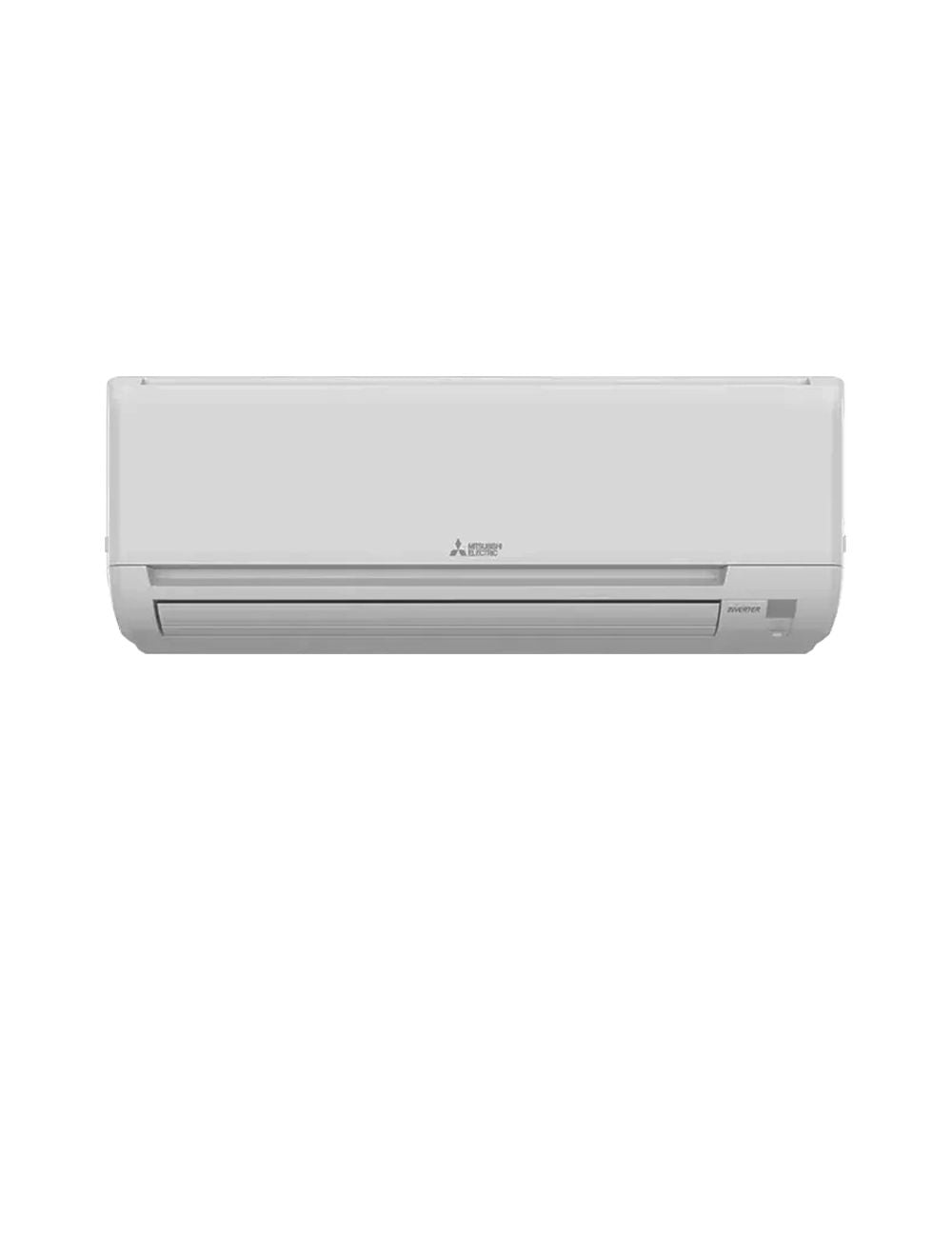

The Mitsubishi Electric MSZ-WX18NL is a wall-mounted indoor unit suitable for ductless mini-split systems. It offers heating and cooling functions with varying fan speeds and airflow options. Designed for indoor installation, this unit uses R-454B refrigerant. It has a filtration system that supports multiple operating modes. Users can control the unit via a wireless remote and integrate it with a smart control app.

• Provides both heating and cooling.
• Operates with multiple fan speeds.
• Features smart app control for convenience.

Product Highlights

This indoor unit is effective in delivering comfortable air, adaptable for single-zone use. It operates quietly, making it ideal for homes or offices.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-WX18NL

Technical Specifications

• Product Type: Indoor Unit
• Mounting Type: Wall Mounted
• Operating Mode: Heating and Cooling
• Zone Compatibility: Single Zone
• Refrigerant Type: R-454B
• Cooling Capacity: up to 18,000 BTU
• Heating Capacity: up to 20,800 BTU
• SEER2: 18
• EER2: 9.5
• HSPF2: 8.5
• Voltage: 208/230 Volts
• Frequency: 60 Hz
• Dimensions: 33 inches Length x 9 inches Width x 11-1/4 inches Height
• Weight: 20 lbs
• Remote Control: Wireless
• WiFi Enabled: Yes with Comfort App
• ETL Listed: Yes
• AHRI Certified: Yes

Product Description

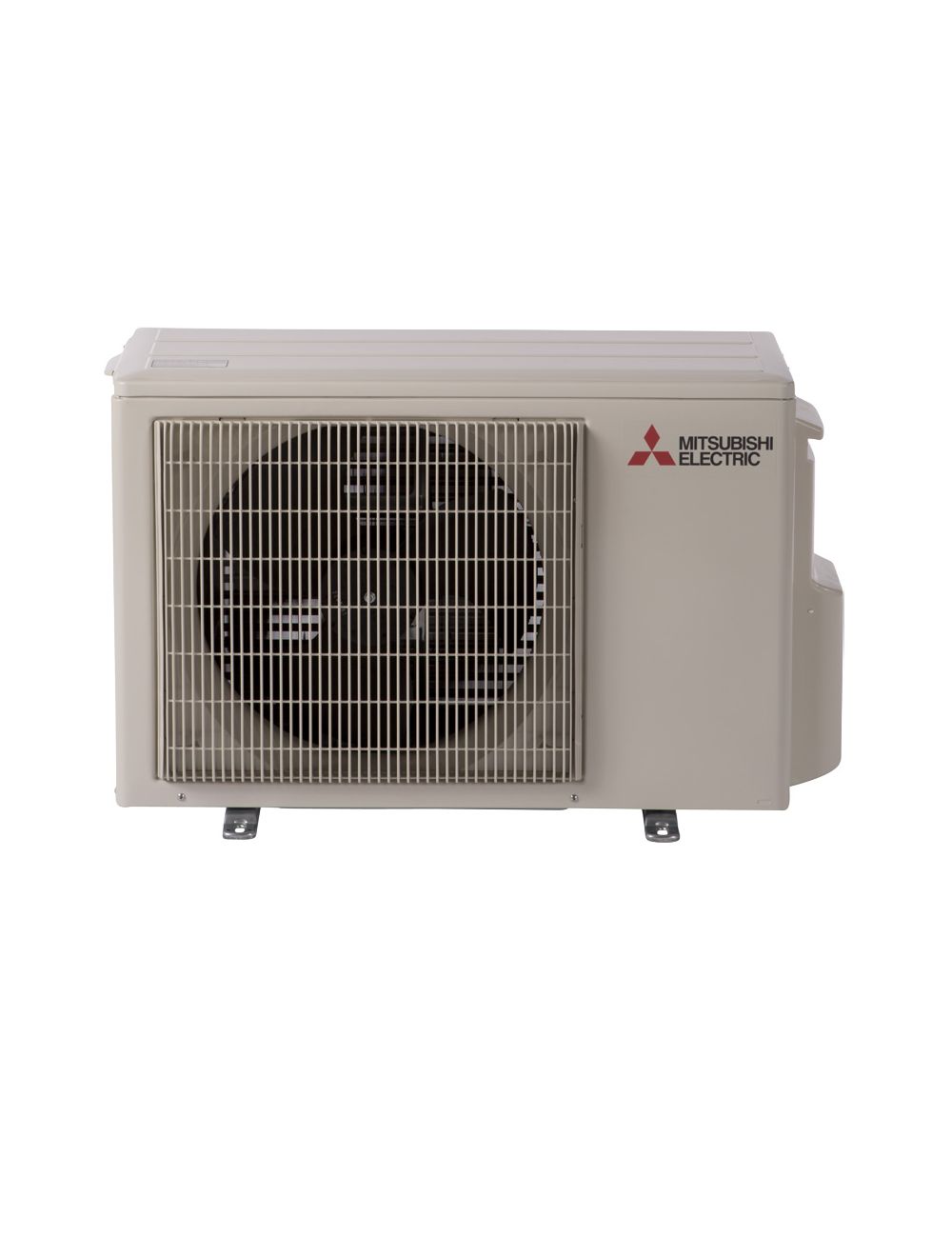

The Mitsubishi Electric MUZ-WX18NL is an outdoor unit specifically built for wall-mounted air systems. This mini-split heat pump condenser offers both cooling and heating capabilities. It uses R-454B refrigerant and operates with an inverter-driven compressor to optimize capacity based on temperature requirements.

• Type: Outdoor Unit
• Refrigerant: R-454B
• Blue Fin coating for added corrosion resistance

Product Highlights

This unit is designed for reliable operation in various environments. It features a quiet operation and is suitable for both commercial and residential applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-WX18NL

Technical Specifications

• Input Voltage: 208/230 V
• Power Consumption: 1680 W
• Cooling Capacity: 17,200 BTU/h (max: 18,000 BTU/h, min: 5,800 BTU/h)
• Heating Capacity: 18,000 BTU/h (max: 20,800 BTU/h, min: 5,400 BTU/h)
• Overall Dimensions: 31.5 inches x 11.25 inches x 21.625 inches
• Color: Ivory
• Noise Level: 51 dBA (heating), 53 dBA (cooling)
• Heating Operating Temperature: 47°F
• Cooling Operating Temperature: 95°F
