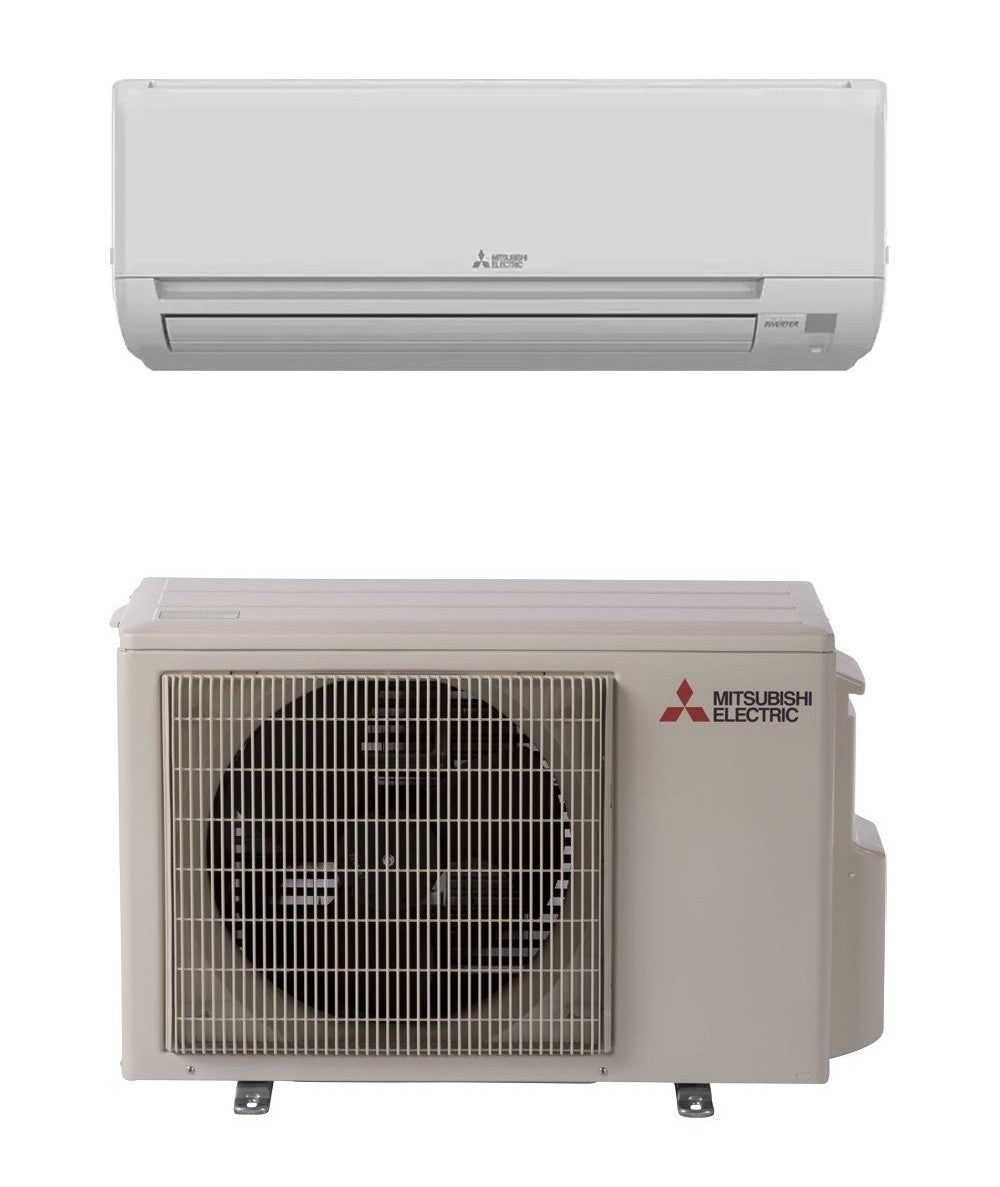

MITSUBISHI ELECTRIC SINGLE-ZONE 18 SEER2 HEAT PUMP SYSTEMS MUZ-WX12NL+MSZ-WX12NL - BTU 12000 - SEER 18 - R454B

Product Description

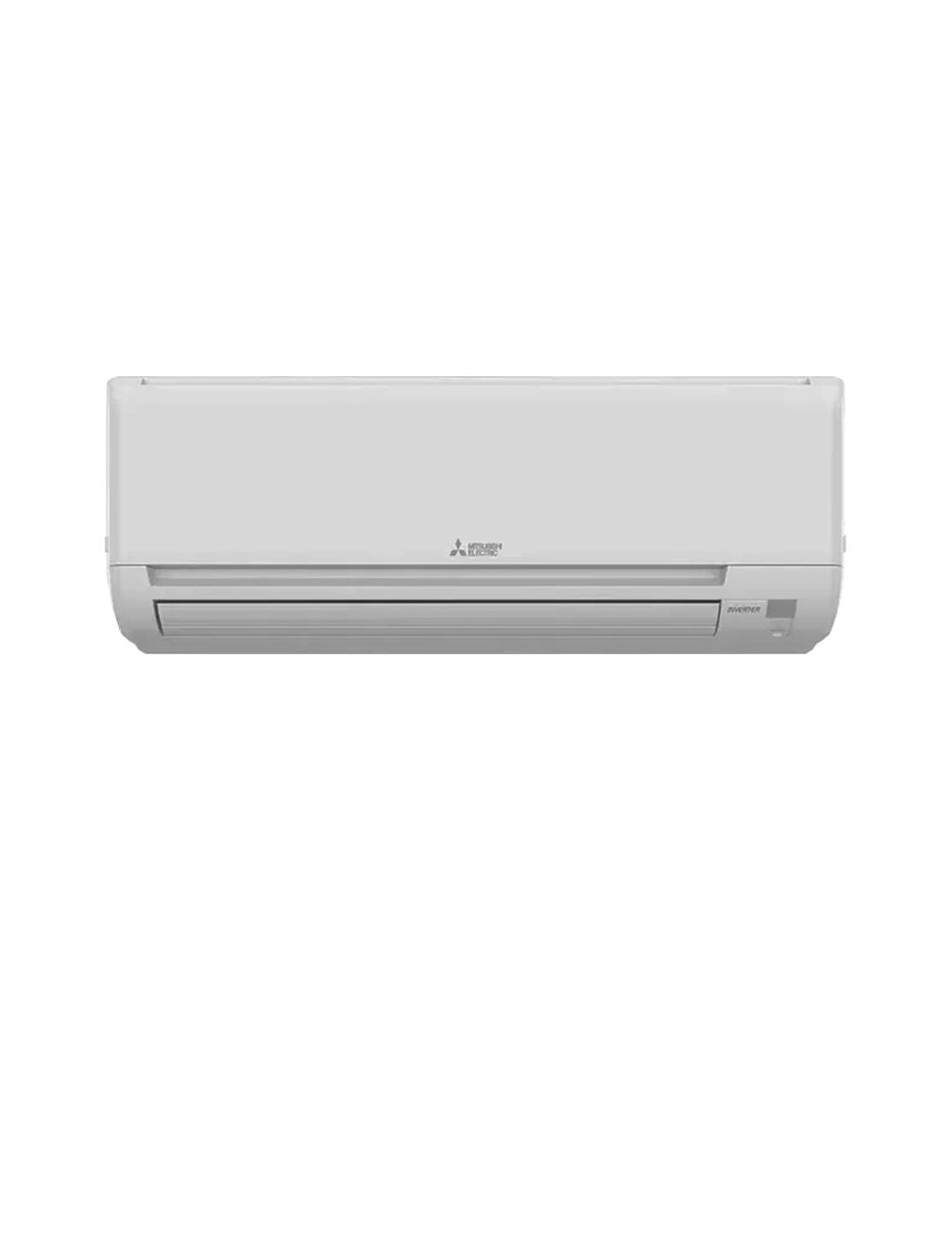

The Mitsubishi Electric MSZ-WX12NL is a wall-mounted mini split system designed for efficient heating and cooling in a single zone. The system includes an indoor unit and is designed for compatibility with a single-zone outdoor unit. It utilizes R-454B refrigerant for efficient operation and comes with various operating modes, fan speeds, and adjustable airflow directions.

• Wall-mounted indoor unit for single-zone systems.
• Heating and cooling functionality.
• Includes a wireless remote controller for easy operation.

Product Highlights

This mini split system effectively manages indoor temperatures and provides dehumidification. Its advanced filtration system enhances air quality.

Product Information

Standard Information

• Product Type: Mini Split System
• Model Number: MSZ-WX12NL

Technical Specifications

• Brand: Mitsubishi Electric
• Operating Mode: Heating and Cooling
• Installation Location: Indoor
• Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• Moisture Removal: 3.1 Pints/Hour
• Maximum Air Flow: 391 CFM
• Minimum Air Flow: 132 CFM
• Minimum Sound Level: 22 dB
• Maximum Sound Level: 45 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• SEER2: 18.0
• EER2: 9.0
• HSPF2: 8.5
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 32 F
• Maximum Cooling Wattage: 1,400 W
• Maximum Cooling Amperage: 6.1 Amps
• Maximum Heating Wattage: 1,340 W
• Maximum Heating Amperage: 5.8 Amps
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Remote Control: Wireless
• Mounting Type: Wall Mounted
• Product Height: 11.06 Inches
• Product Width: 33 Inches
• Product Depth: 9 Inches
• Indoor Unit Weight: 20 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Compressor Type: Inverter
• Number of Speeds: 4
• Maximum Line Length: 65 ft.
• Liquid Line O.D.: 1/4 in.
• Suction Line O.D.: 3/8 in.

Product Description

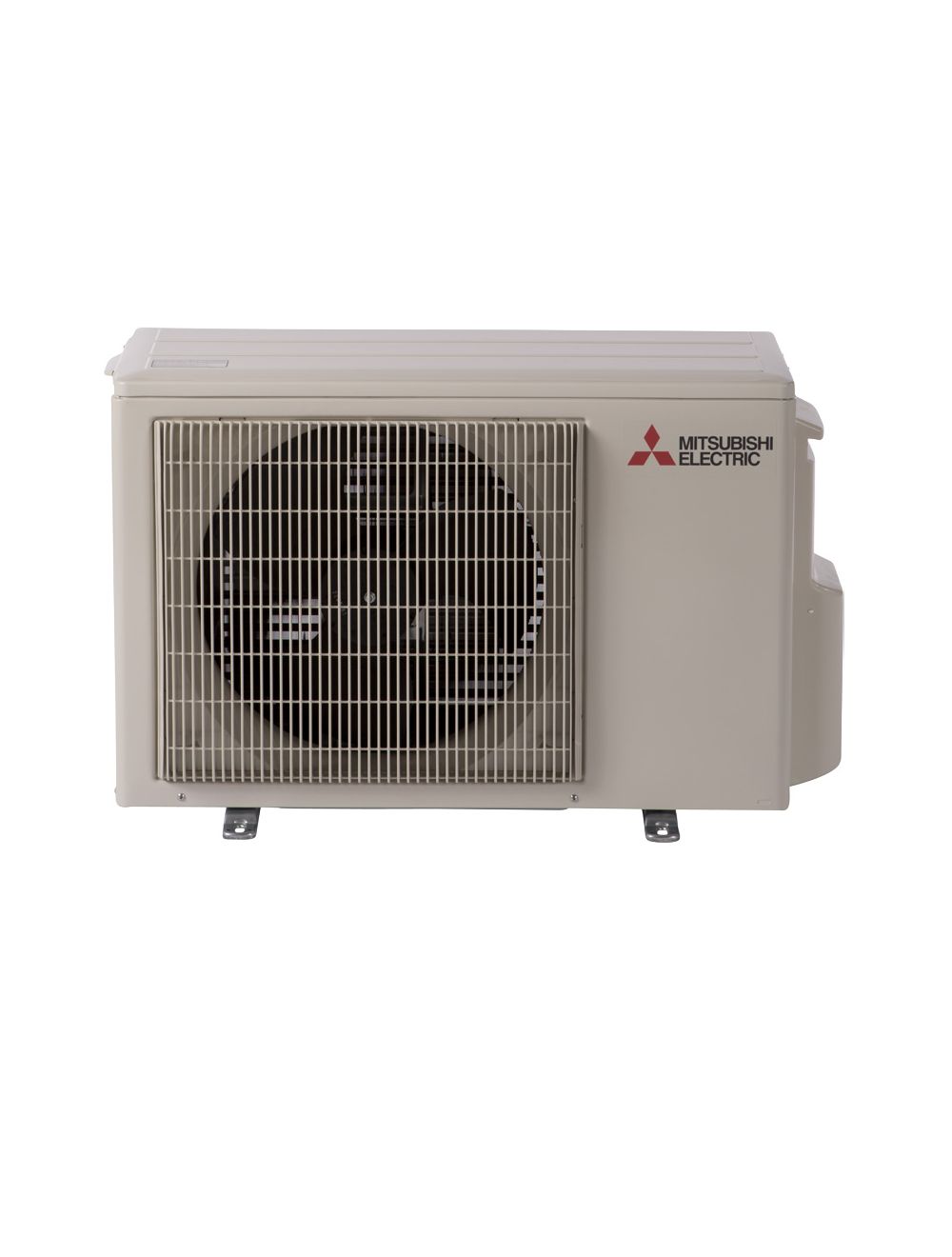

The Mitsubishi Electric MUZ-WX12NL is a key component for wall-mounted mini-split air conditioning systems. This outdoor unit serves as a heat pump condenser, providing essential cooling and heating capabilities. It operates with R-454B refrigerant and features an inverter-driven compressor that adjusts its capacity based on the temperature needs of the environment.

• Functions as an outdoor unit for mini-split systems.
• Offers both heating and cooling functionalities.
• Utilizes energy-efficient R-454B refrigerant.

Product Highlights

Designed for effective heating and cooling, the MUZ-WX12NL is equipped with Blue Fin Coating to resist corrosion and extend the unit's lifespan. It ensures quiet operation, making it suitable for residential use. The unit is engineered for energy efficiency, offering a seasonal energy efficiency ratio (SEER) of eighteen.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Model Number: MUZ-WX12NL

Technical Specifications

• Type: Outdoor Unit
• Cooling BTU: 12000
• Heating BTU: 12000
• SEER: 18
• HSPF: 8.5
• Voltage: 208/230V
• Electrical Phase(s): 1-Phase
• Frequency: 60 Hz
• Refrigerant Type: R-454B
• Compressor Type: High Efficiency Rotary
• Decibel Level (dB): 51
• Overall Dimensions: 31.5 inches Length, 11.25 inches Width, 21.625 inches Height
