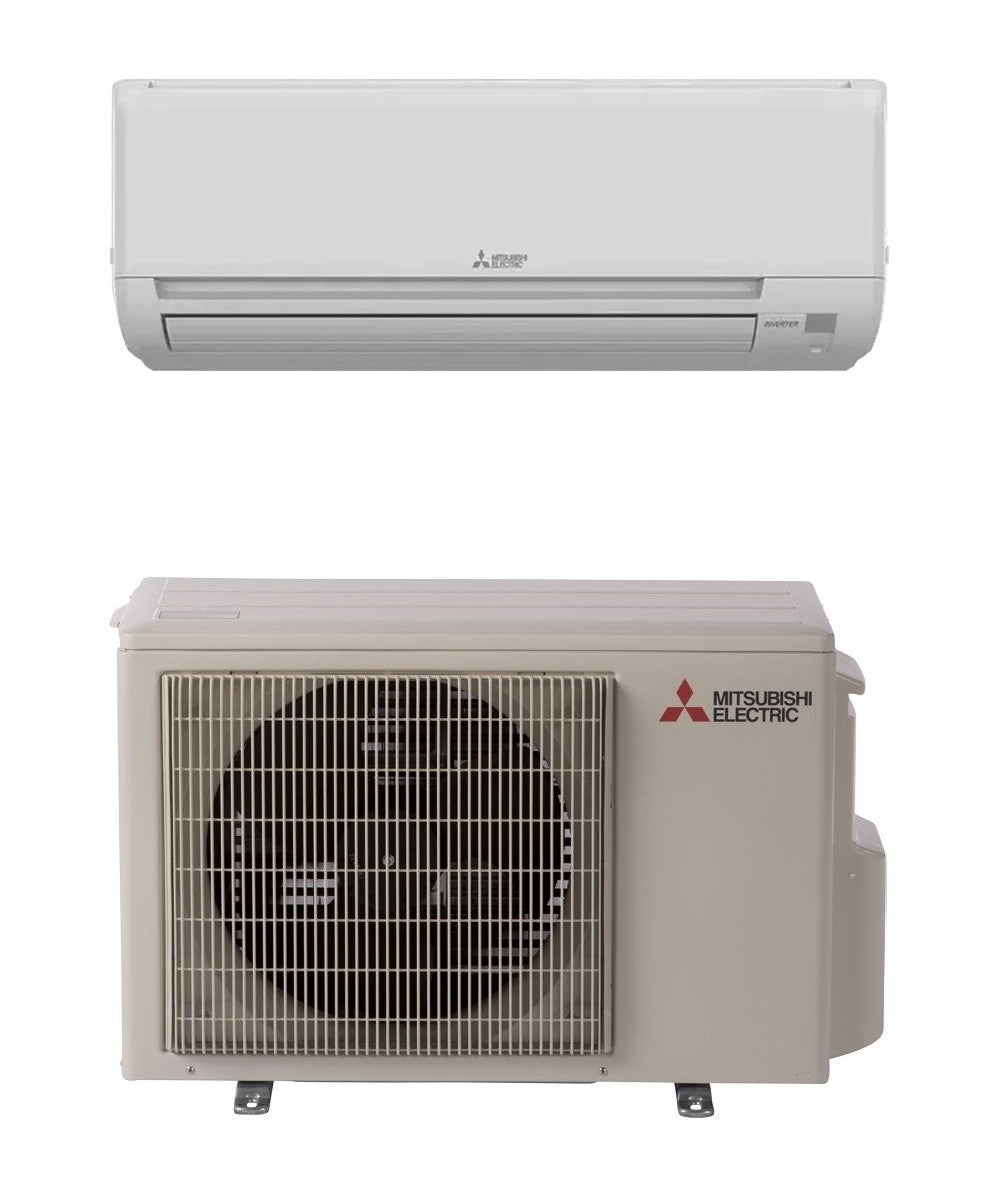

MITSUBISHI ELECTRIC SINGLE-ZONE 18 SEER2 HEAT PUMP SYSTEMS MUZ-WX09NL+MSZ-WX09NL - BTU 9000 - SEER 18 - R454B

Product Description

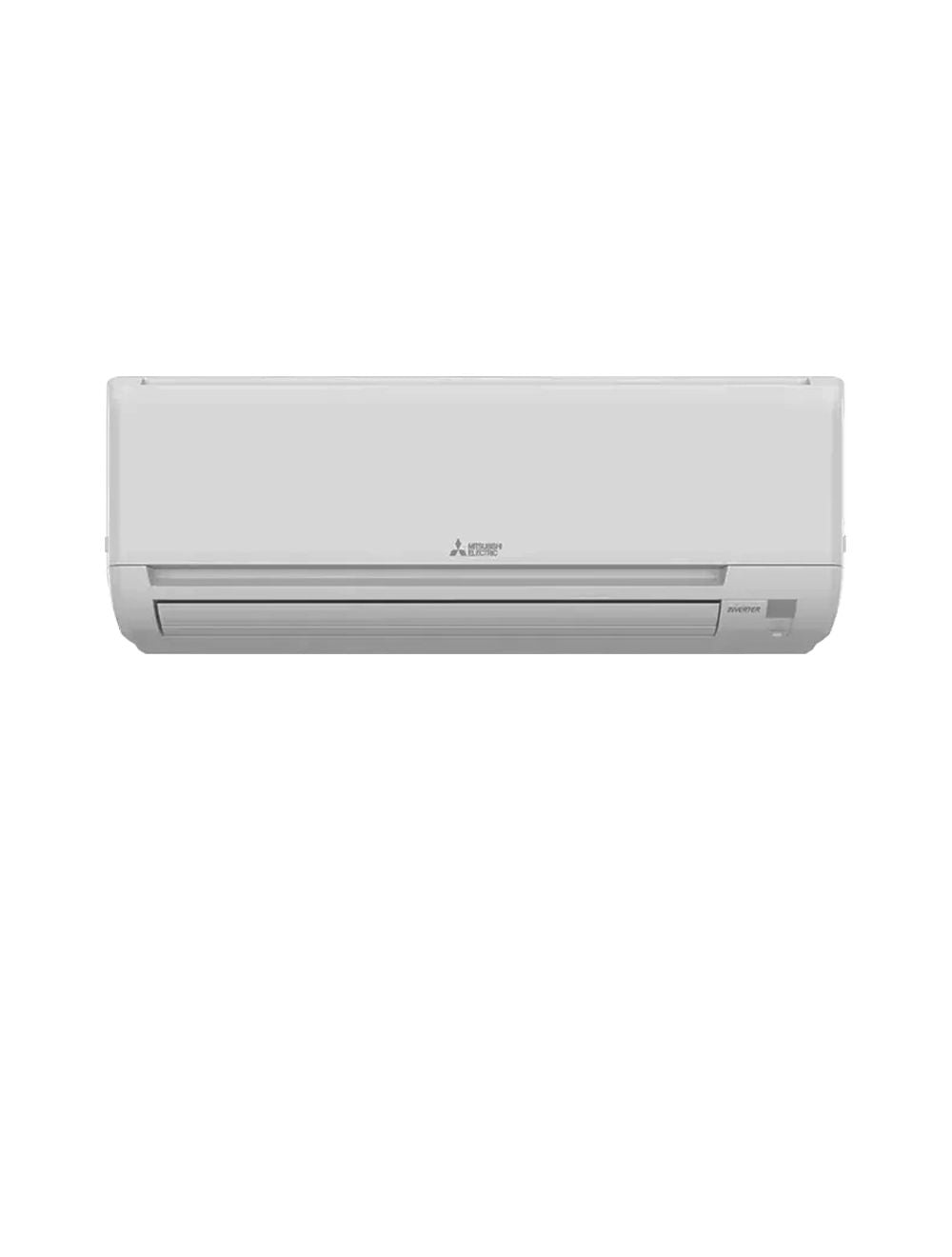

The Mitsubishi Electric MSZ-WX09NL is a wall-mounted mini-split indoor unit designed for efficient heating and cooling. This unit is part of the M-Series, featuring advanced technology for optimal climate control. It operates in both cooling and heating modes, providing comfort in various temperatures.

• Delivers both heating and cooling functionality.
• Adjustable fan speeds for customizable airflow.
• Includes an advanced hybrid platinum filter for improved air quality.

Product Highlights

This unit is compatible with the Comfort App, allowing easy remote monitoring and control.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-WX09NL

Technical Specifications

• Product Line: M-Series, WX Series
• Unit Type: Single Zone
• Operating Mode: Cooling & Heating
• Installation Location: Indoor
• Refrigerant Type: R-454B
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• SEER Rating: 18
• EER Rating: 11
• HSPF Rating: 8.5
• Moisture Removal: 1.6 Pints/Hour
• Maximum Air Flow: 391 CFM
• Sound Level: 43 dBA
• Voltage: 208/230 Volts
• Dimensions: 33 W x 9 D x 11-1/16 H
• Weight: 20 Pounds
• WiFi Enabled: Yes
• Remote Control: Wireless, Included

Product Description

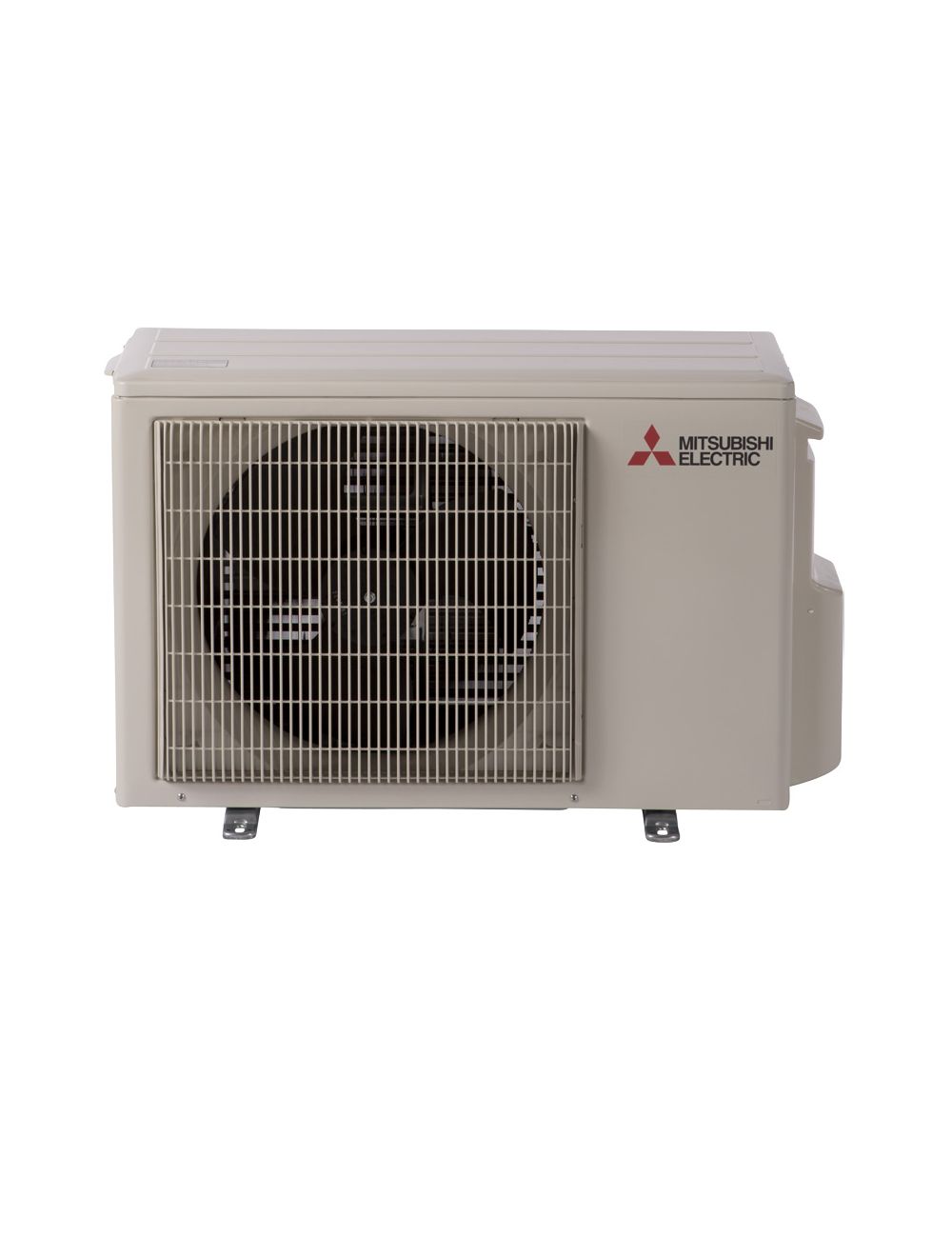

The Mitsubishi Electric MUZ-WX09NL is an outdoor condenser suitable for single-zone mini-split systems. This unit delivers heating and cooling with a cooling capacity of nine thousand BTU and a heating capacity of ten thousand nine hundred BTU. It operates on two hundred eight or two hundred thirty volts and utilizes R-454B refrigerant. The condenser is AHRI certified and ETL listed, ensuring quality and compliance.

• Designed for single-zone mini split applications.
• Provides both heating and cooling.
• Features Blue Fin coating for corrosion protection.

Product Highlights

This outdoor condenser ensures efficient temperature control for residential spaces while accommodating dynamic climate needs.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-WX09NL

Technical Specifications

• Product Type: Outdoor Condenser
• Product Line: M-Series
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Maximum Sound Level: 50 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 32 F
• Input Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 10 Amps
• Recommended Breaker Size: 17 Amps
• Maximum Line Length: 65 Feet
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 21.625 Inches
• Product Width: 31.5 Inches
• Product Depth: 11.25 Inches
• Product Weight: 20 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
