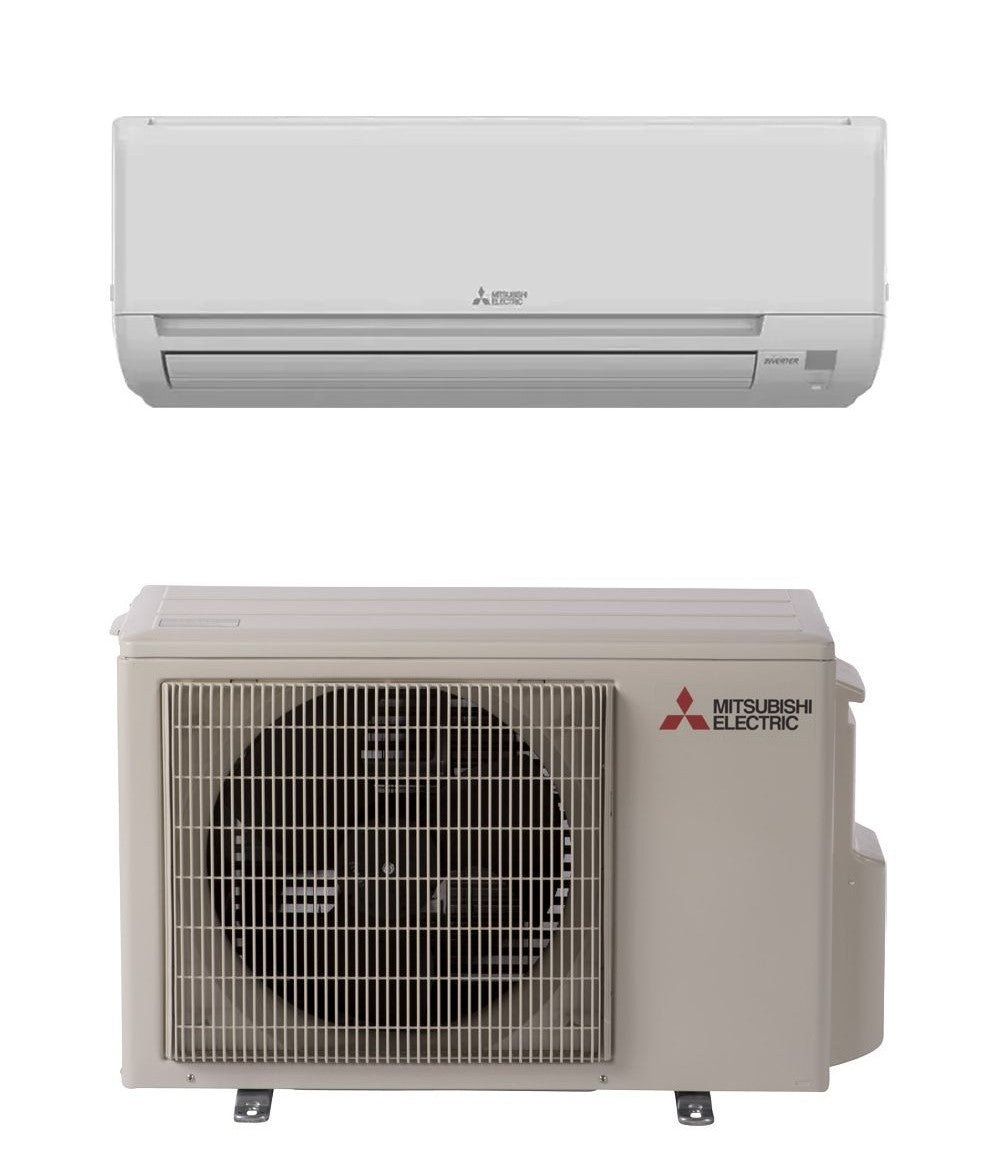

MITSUBISHI ELECTRIC SINGLE-ZONE 115V HEAT PUMP SYSTEMS MUZ-JX12WL+MSZ-JX12WL - BTU 12000 - SEER 20 - R454B

Product Description

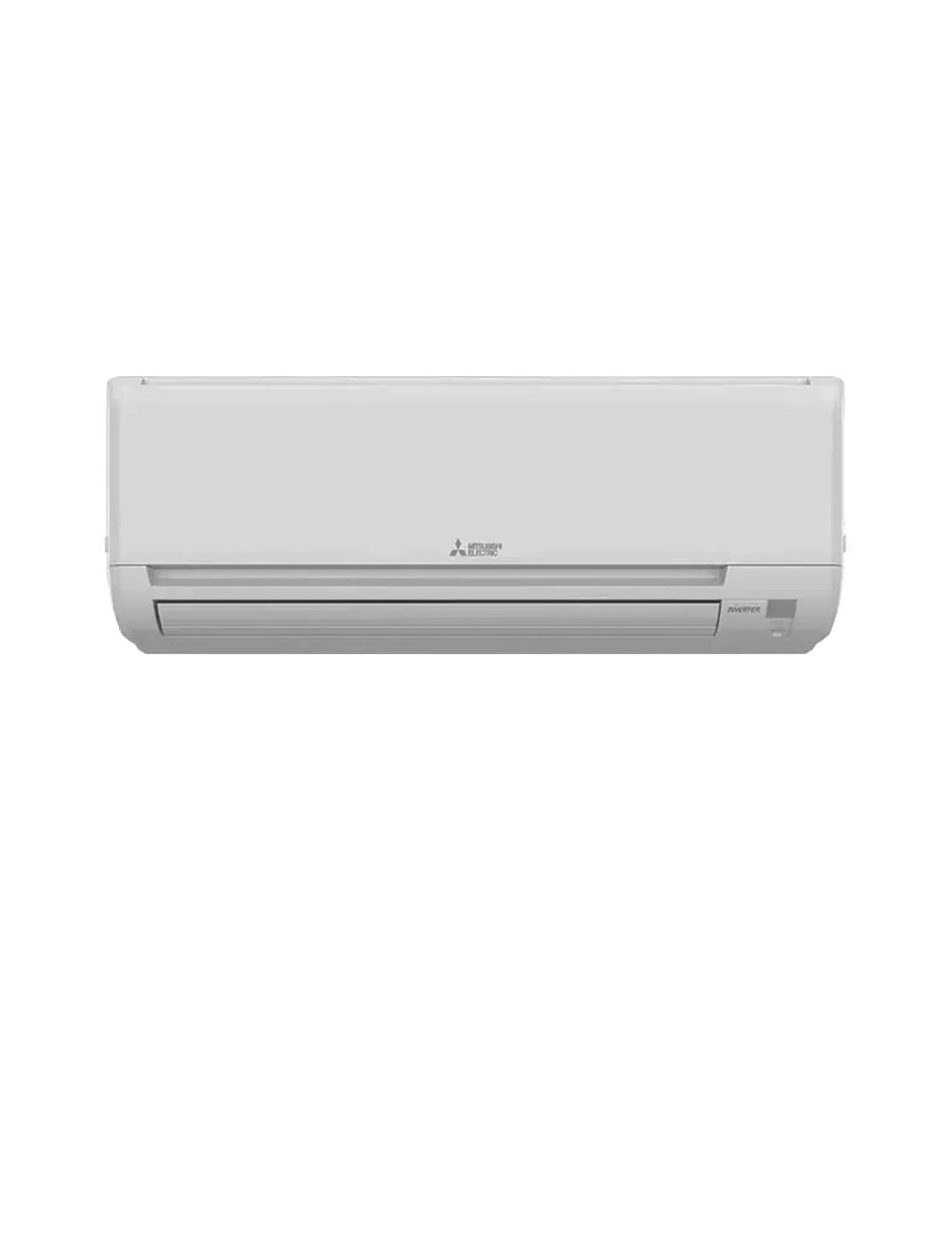

The Mitsubishi Electric MSZ-JX12WL is a wall-mounted, single-zone mini-split indoor unit designed for both heating and cooling purposes. This unit operates on 115V power and makes use of R-454B refrigerant, making it suitable for various indoor locations. It comes equipped with multiple fan speeds and adjustable airflow directions for optimal comfort. A wireless remote control allows for easy and convenient operation. The unit is engineered for quiet performance, featuring Econo Cool mode and a dual barrier coating to enhance energy efficiency.

• Wall mounted indoor unit for single-zone systems.
• Operates on 115V power and uses R-454B refrigerant.
• Includes wireless remote control for convenience.

Product Highlights

Designed for efficient heating and cooling, the MSZ-JX12WL fits well in different spaces while ensuring minimal noise.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-JX12WL

Technical Specifications

• Product Type: Mini Split System Components
• Mounting Type: Wall Mounted
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling Capacity: 12000 BTU
• Heating Capacity: 12200 BTU
• SEER2: 20
• EER2: 12.5
• HSPF2: 10
• Airflow Cooling CFM, Dry: 168-243-333-468
• Noise Level dB(A), Cooling: 22-30-38-47
• Input Voltage: 115 V
• Width: 33 inches
• Depth: 9.25 inches
• Height: 11.031 inches
• Weight: 20 lbs

Product Description

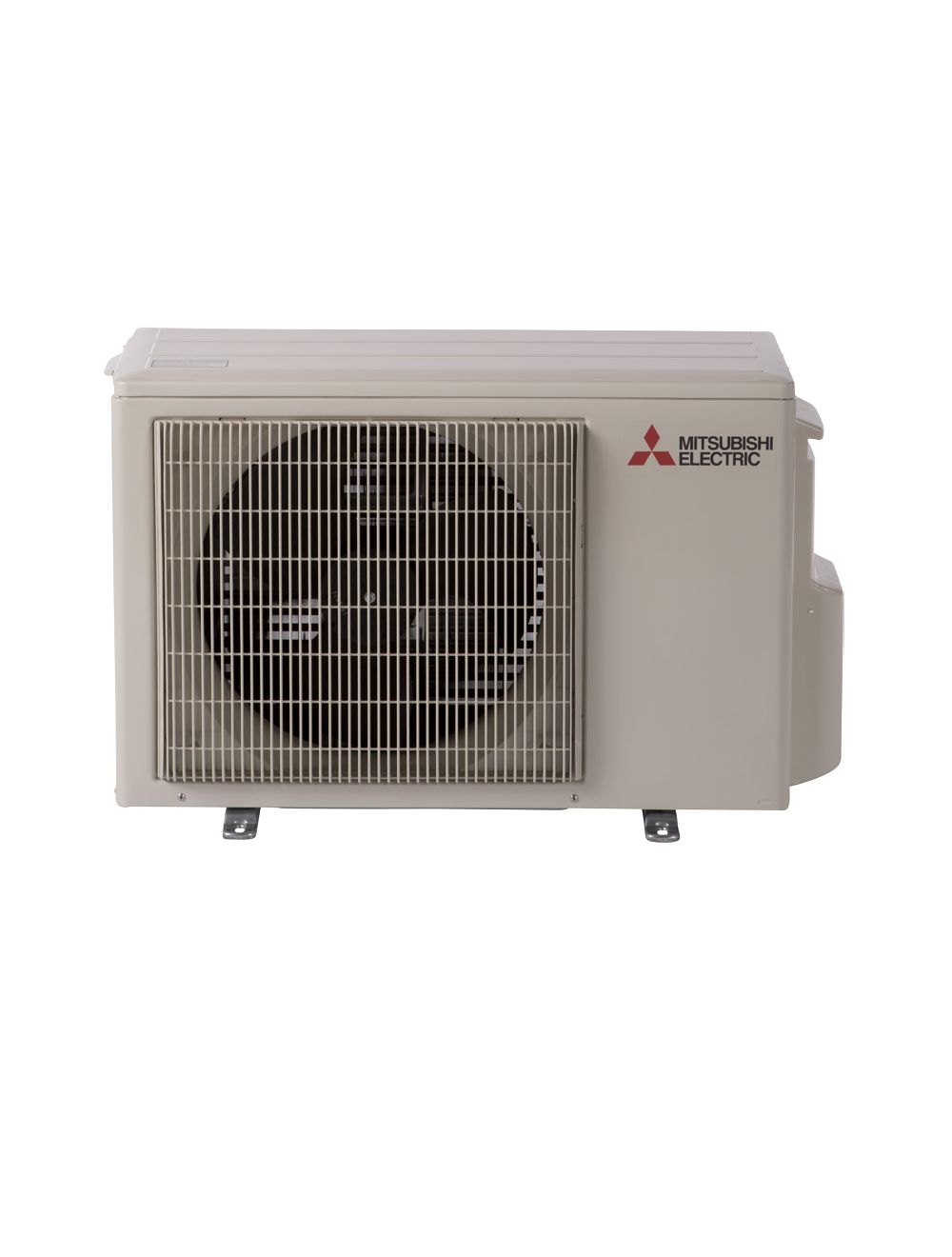

The Mitsubishi Electric MUZ-JX12WL is an outdoor unit for single-zone cooling and heating systems. This model is part of the M-Series (JX) and is intended to pair with the MSZ-JX12WL indoor unit. The outdoor unit features an inverter-driven compressor that adjusts its speed for better energy efficiency. A Blue Fin coating protects the aluminum fins from corrosion. It operates on one hundred fifteen volts and is suitable for wall mounting.

• Part of the M-Series (JX) single-zone system.
• Features Blue Fin coating for corrosion protection.
• Compatible with MSZ-JX12WL indoor unit.

Product Highlights

This outdoor unit excels in performance and longevity, ideal for residential or commercial applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MUZ-JX12WL

Technical Specifications

• Product Line: M-Series (JX)
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 12,000 BTU
• Cooling Capacity: up to 13,400 BTU
• Heating Capacity: up to 15,500 BTU
• SEER2: 20
• EER2: 12.5
• HSPF2: 10
• Heating Minimum Temp: -14 F
• Cooling Minimum Temp: -1 F
• Noise Level Cooling (Outdoor Unit): 49 dB(A)
• Noise Level Heating (Outdoor Unit): 51 dB(A)
• Dimensions: 31-1/2 W x 11-1/4 D x 21-5/8 H
• Weight (Outdoor Unit): 51 lbs
• Input Voltage: 115V
