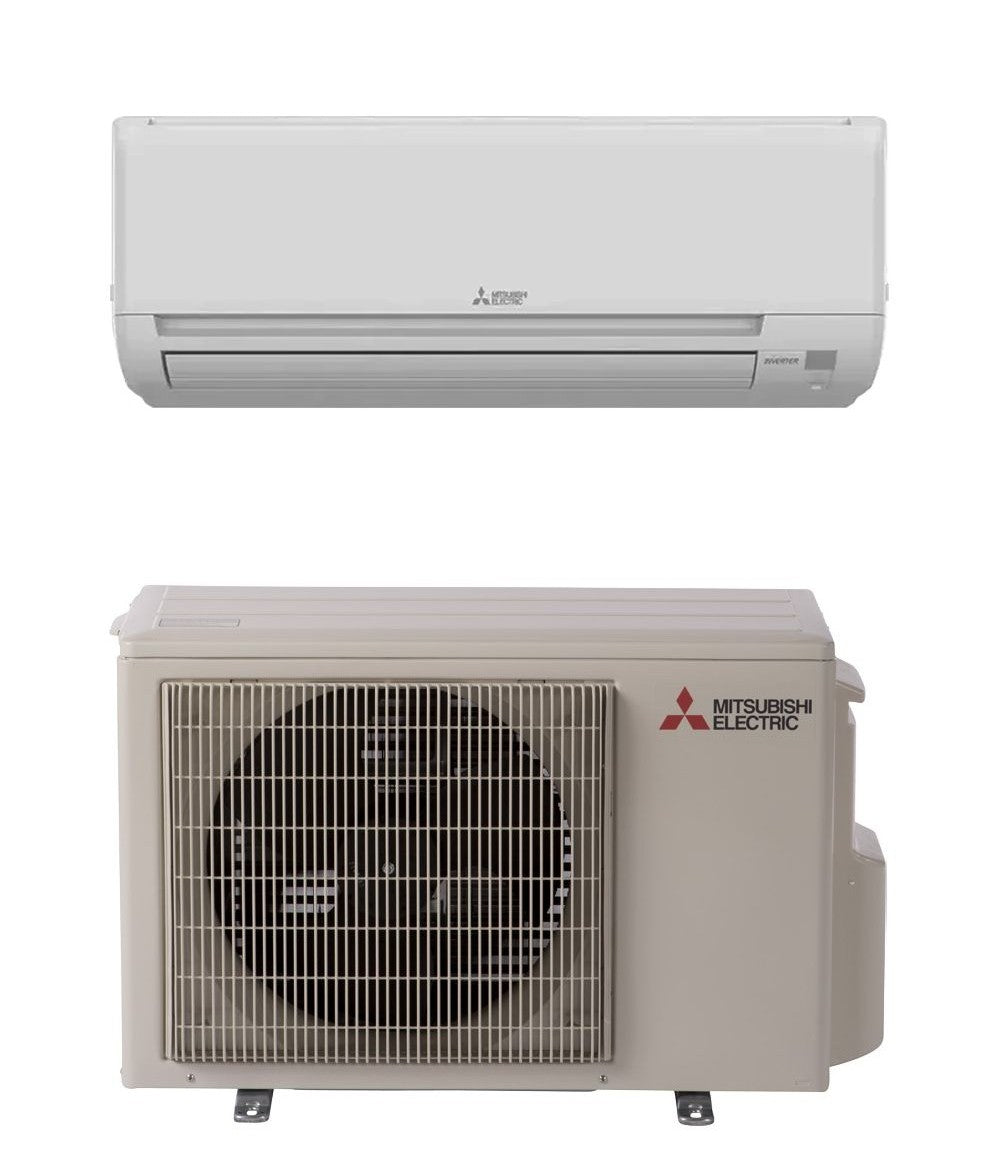

MITSUBISHI ELECTRIC SINGLE-ZONE 115V HEAT PUMP SYSTEMS MUZ-JX09WL+MSZ-JX09WL - BTU 9000 - SEER 20 - R454B

Product Description

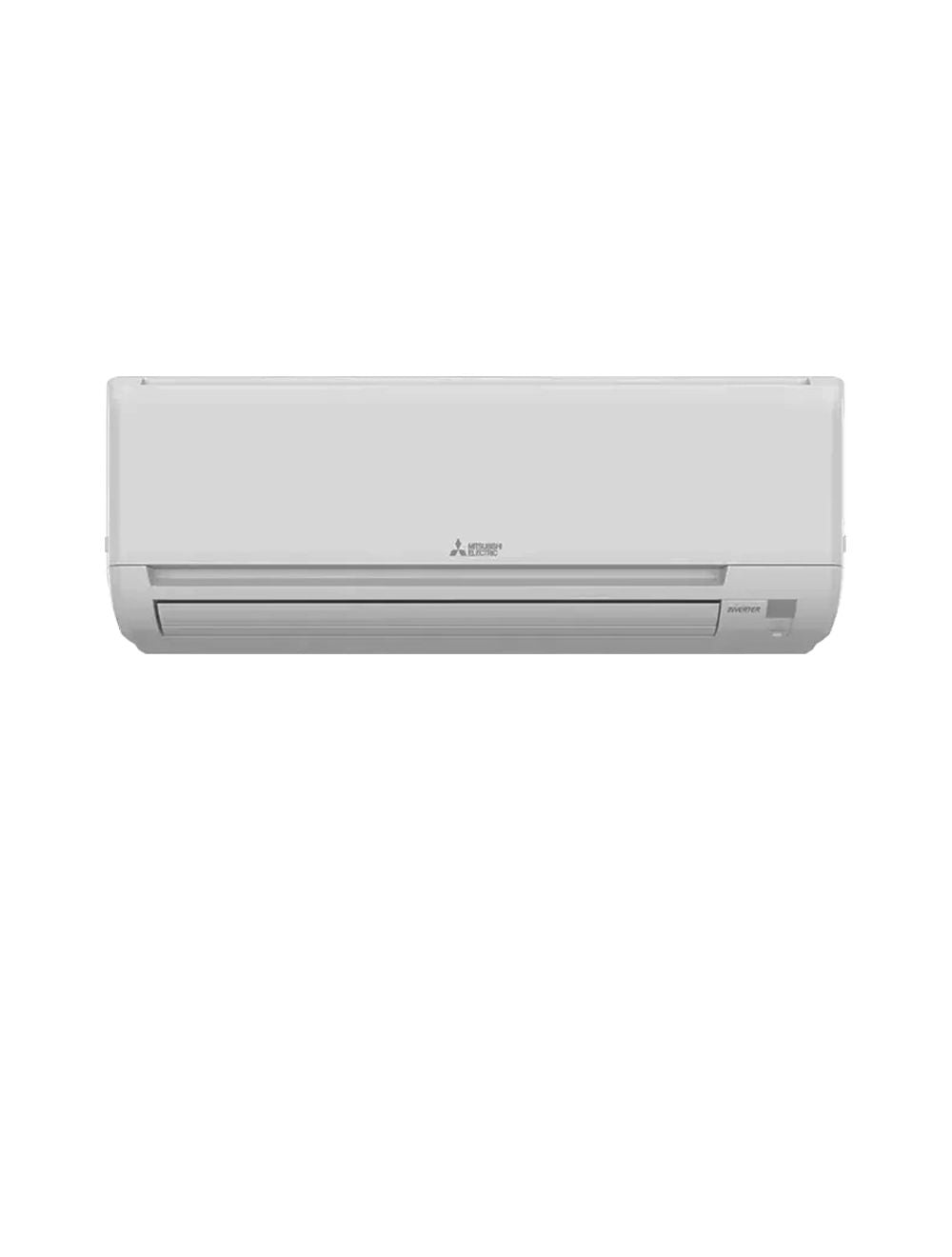

The Mitsubishi Electric MSZ-JX09WL is a wall-mounted mini-split indoor unit with functionality for both heating and cooling. This unit uses R-454B refrigerant and operates on a 115V power supply. It provides flexibility with multiple fan speeds and adjustable airflow directions.

• Functions in heating and cooling modes.
• Incorporates advanced air filtration with an enzyme-based anti-allergy filter.
• Compatible with Mitsubishi mini-split outdoor condensers for seamless installation.

Product Highlights

Ideal for single-zone heating and cooling applications.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: MSZ-JX09WL

Technical Specifications

• Product Line: M-Series, JX Series
• Operating Mode: Heating and Cooling
• Installation Location: Indoor
• Mounting Type: Wall
• Refrigerant Type: R-454B
• Voltage: 115 Volts
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• SEER Rating: 20
• EER Rating: 12.5
• HSPF Rating: 10
• Maximum Air Flow: 384 CFM
• Minimum Air Flow: 131 CFM
• Sound Level: 43 dB
• Moisture Removal: 1.8 Pints/Hour
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Width: 33 Inches
• Depth: 9.25 Inches
• Height: 11.25 Inches
• Weight: 20 Pounds
• Number of Fan Speeds: 4
• Operating Temperature: 67 to 90 F
• Fuse Rating: 15 A
• AHRI Certified: Yes

Product Description

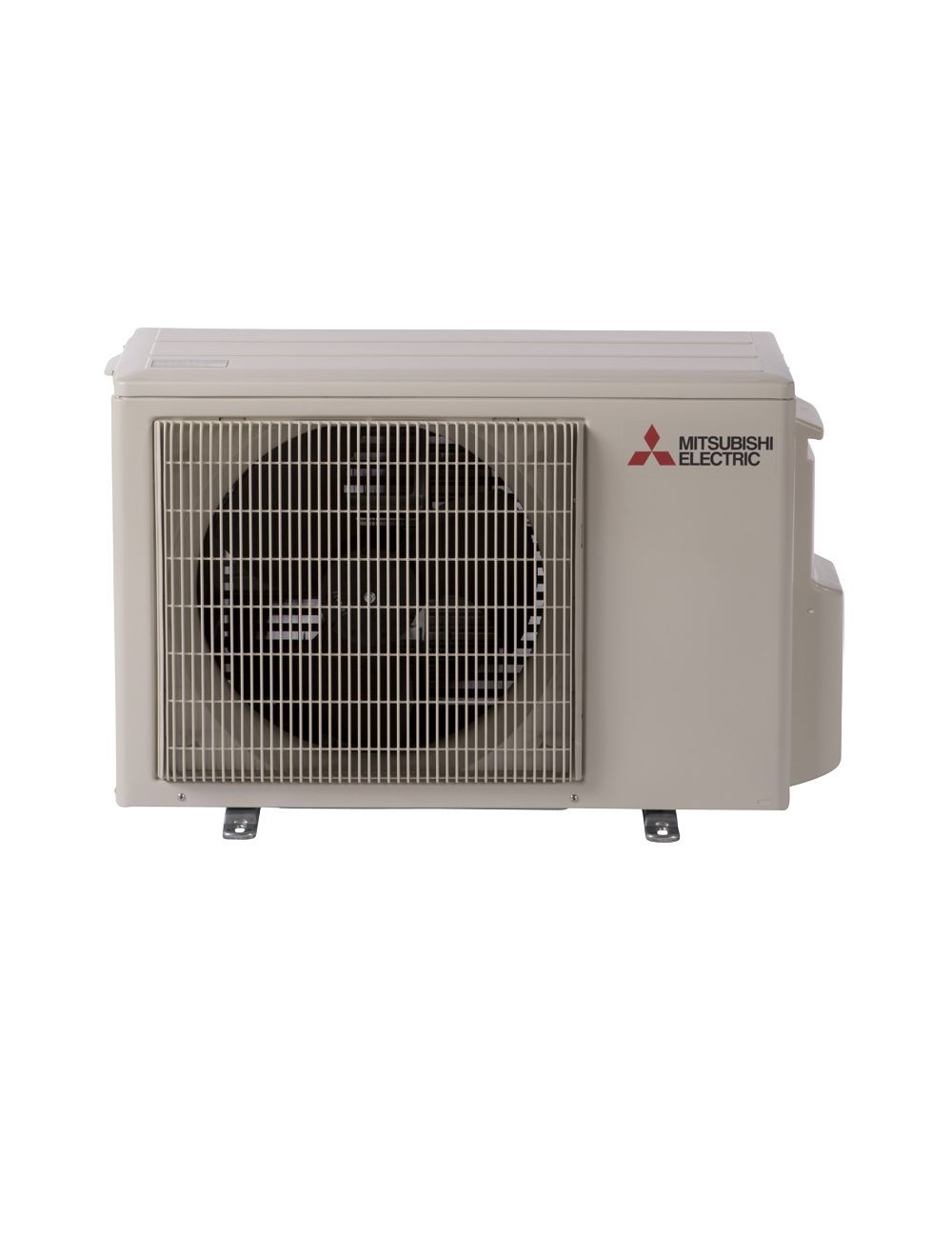

The Mitsubishi Electric MUZ-JX09WL is an outdoor condenser ideal for single-zone mini-split systems. This unit offers both heating and cooling capabilities. The inverter technology used in this model allows for efficient operation by adjusting the compressor speed and refrigerant flow as needed. Designed for outdoor environments, it uses R-454B refrigerant and features a blue fin coating that enhances its resistance to corrosion.

• Designed for single-zone mini-split applications.
• Features advanced inverter technology for energy savings.
• Includes a blue fin coating to improve durability against corrosion.

Product Highlights

This unit is suitable for residential and light commercial applications, making it versatile in various settings.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• Manufacturer Part Number: MUZ-JX09WL

Technical Specifications

• Type: Heat Pump
• Product Line: M-Series
• Cooling Capacity: 9000 BTU
• Heating Capacity: 10900 BTU
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Maximum Sound Level: 50 dB
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Input Voltage: 115 Volts
• Compressor Stage: Inverter
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
