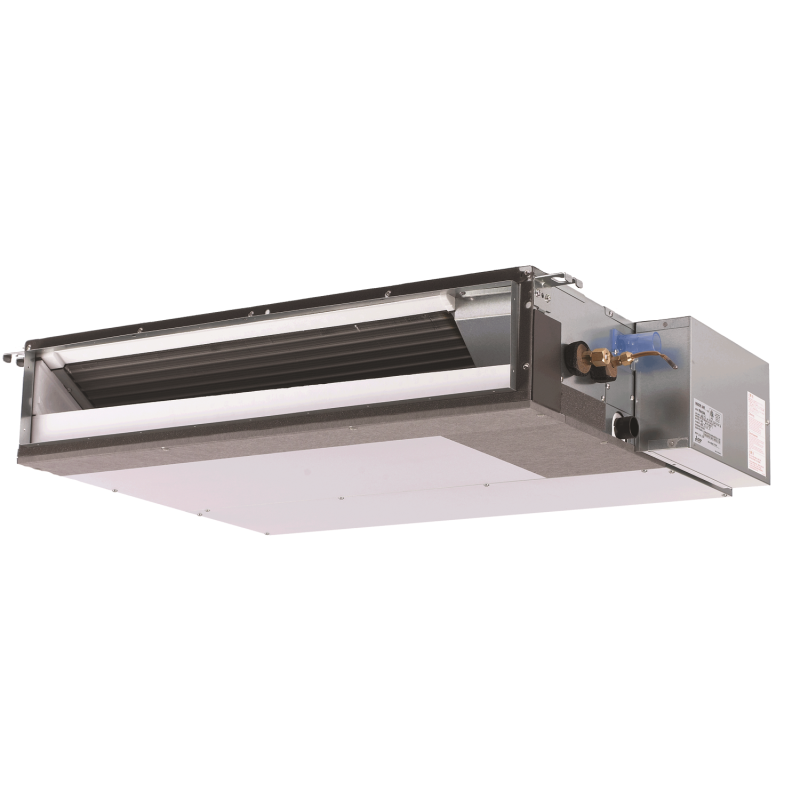

Mitsubishi Electric SEZ-KD18NA4R1 18,000 BTU Concealed Duct Mini Split Multi Zone KD Series Air Handler

Product Description

The MITSUBISHI ELECTRIC SEZ-KD18NA4R1 is an 18,000 BTU slim-ducted air handler compatible with both single and multi-zone mini-split systems. Designed for applications where standard air handlers are too large, it fits in tight locations like crawlspaces. It supports small duct runs, including branch-offs, or can direct airflow directly into a room. It has a dehumidification rate of 0.35 gallons per hour.

• 18,000 BTU slim ducted air handler
• Designed for both small ductwork runs and airflow directly into a room
• 0.35 gallon per hour dehumidification rate

Product Highlights

This Mitsubishi Electric air handler provides enhanced comfort in a convenient form factor, ideal for small spaces and targeted climate control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: SEZ-KD18NA4R1

Technical Specifications

• SKU: SEZ-KD18NA4R1.TH
• Brand/Manufacturer: Mitsubishi
• Controller: Not Included
• Additional Information: Drain: 1-1/4"
• Cooling BTU: 17,200 BTU
• Heating BTU: 21,600 BTU
• Maximum CFM: 381-635 CFM
• Decibel Level (dBA): 30-38
• Refrigerant: R410A
• Capacity: Dehumidification Rate: 0.35 gal/hr
• Liquid Line: 1/4"
• Suction Line: 1/2"
• Electrical: 208/230V 1 Phase 60 Hz
• Phase: Single Phase
• BTU/Tonnage: 18,000 BTU/1.5 Ton
• Mini Split Type: Concealed Duct
• Zone Compatibility: Multi Zone
• Operating Mode: Cooling, Heating
• Height: 7-7/8"
• Width: 46-7/8"
• Depth: 27-9/16"
