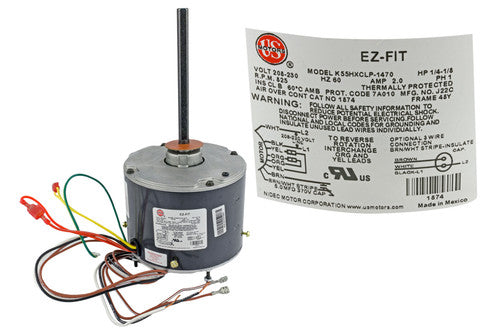

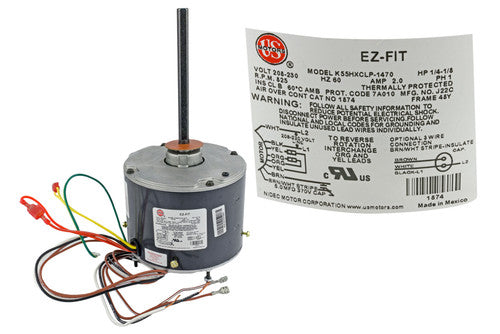

Mitsubishi Electric S89-127 Replacement Motor 1/4-1/8 HP K55HXCLP-1470

Product Description

The MITSUBISHI ELECTRIC S89-127 is a replacement motor designed for various applications, including fan systems. This single-phase motor operates at 208-230V and 60 Hz, delivering 1/4-1/8 horsepower with a speed of 825 RPM. It features a 48Y frame, 1/2-inch shaft diameter, and is thermally protected for enhanced safety and durability. This electric motor is ideal for HVAC systems or other equipment requiring a reliable replacement.

• Operates at 208-230V, 60 Hz, 1 phase with 2 Amps.
• Delivers 1/4-1/8 horsepower at 825 RPM with CCW Lead End or reversible rotation.
• Features a 48Y frame, 1/2-inch shaft diameter, and is thermally protected.

Product Highlights

Replacement motor with thermal protection and reversible rotation for versatile applications.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: S89-127
• Country of Origin: Mexico

Technical Specifications

• Brand: Mitsubishi Electric Corporation
• SKU: S89-127
• Manufacturer: Nidec Motor Corporation
• Manufacturer Part Number: K55HXCLP-1470
• Horsepower: 1/4-1/8
• Voltage: 208-230
• Frequency: 60 Hz
• Phases: 1
• Current: 2 Amps
• RPM: 825
• Rotation: CCW Lead End Or Reversible
• Frame: 48Y
• Shaft Diameter: 1/2"
• Shaft Length: 5-3/4"
• Mounting Type: Stud
• Bearing Type: Self-Align
• Enclosure Type: TENV
• Capacitor Requirement: 5 MFD @ 370 VAC
• Cooling Type: Continuous Air Over
• Thermal Protection: Yes
• Insulation Class: B
• Rotation Reversal Method: Interchange Orange And Yellow Leads
• Product Type: Fan Motor
