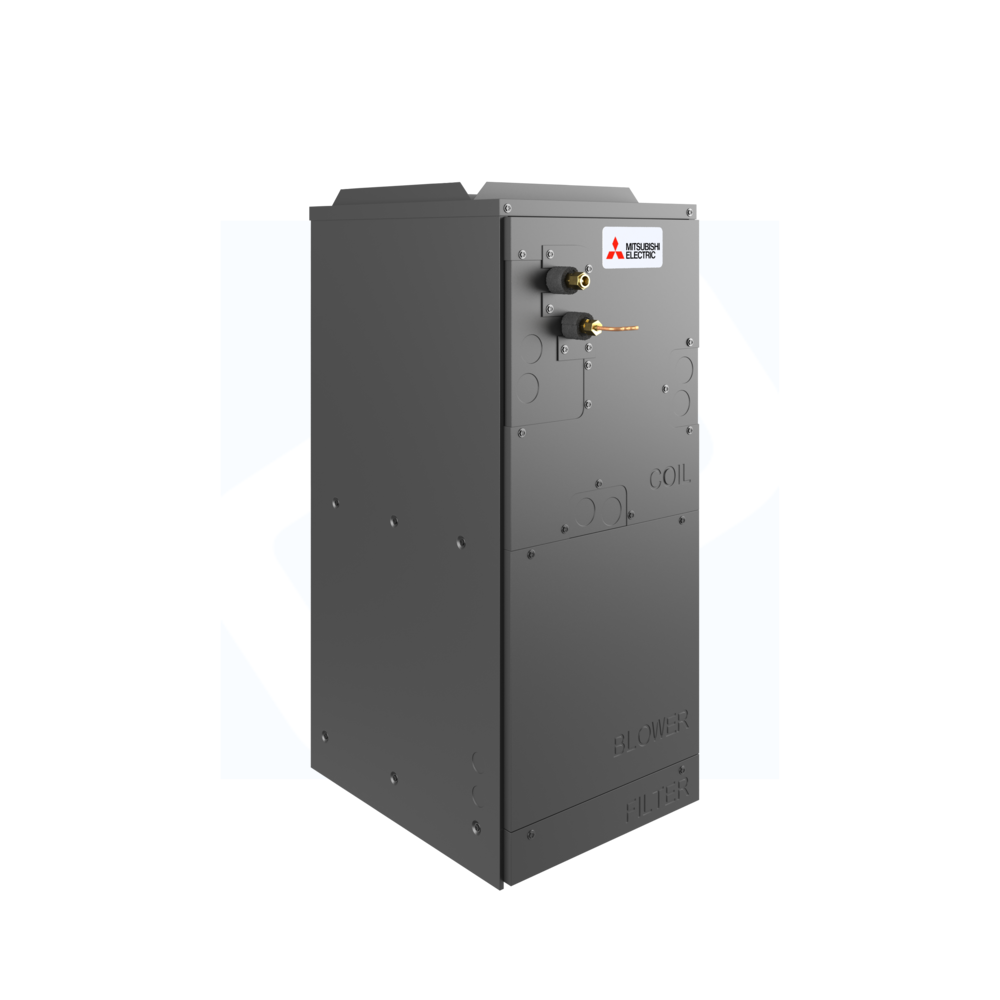

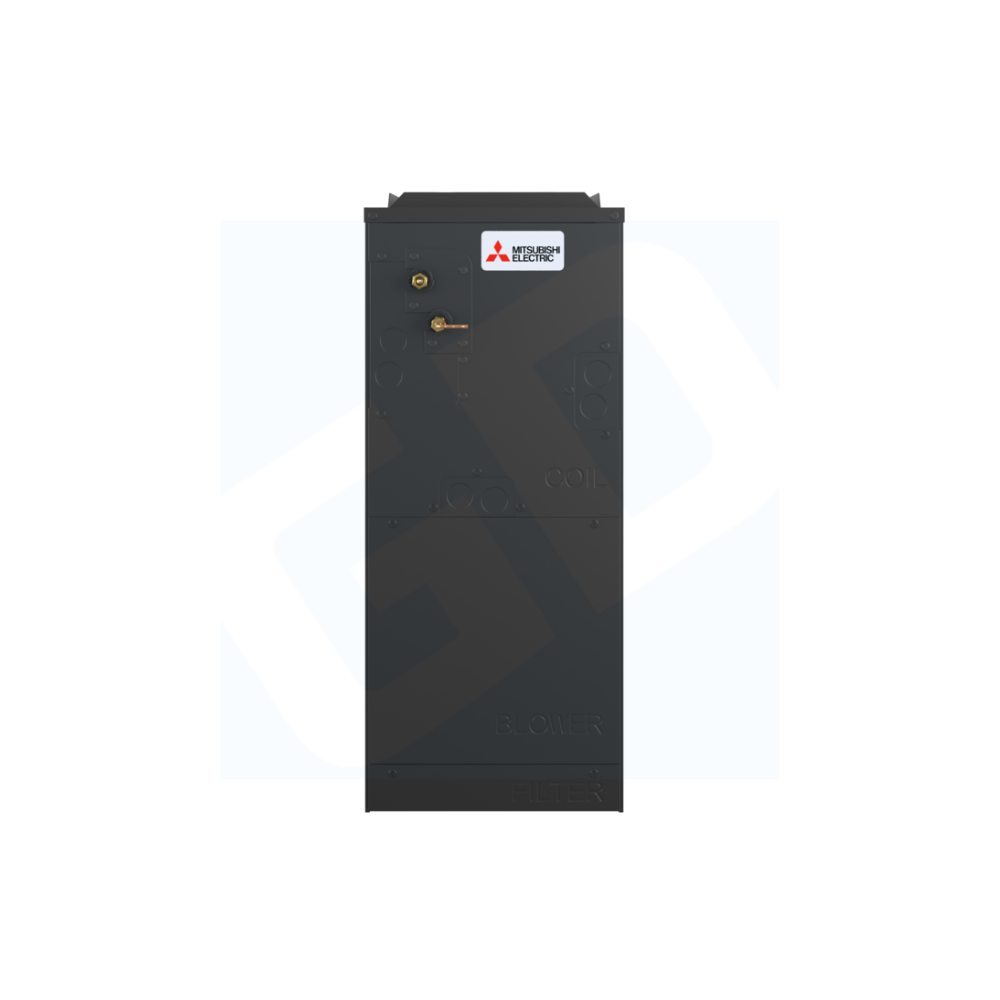

Mitsubishi Electric PVA-AA48NL Air Handler 48,000 BTU

Product Description

The Mitsubishi Electric PVA-AA48NL delivers 48,000 BTU of heating and cooling for spaces up to 2,000 sq ft. This P-Series PVA indoor unit features a slim, multi-position design and offers quiet, energy-efficient operation. Compatible with smart controls and zoning for flexible comfort. Suitable for light commercial applications.

• Ducted air handler provides a solution to cool and heat large zones
• Features a highly efficient totally enclosed ECM motor
• Multi-position installation: horizontal (left or right), vertical (up or down)

Product Highlights

The PVA-AA48NL air handler provides powerful, efficient, and flexible climate control for a variety of spaces.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PVA-AA48NL

Technical Specifications

• Unit Type: Indoor Unit
• Product Line: P-Series PVA
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 48,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Indoor Unit: PVA-AA48NL
• Cooling Capacity: ranging from min: 18,100 - max: 48,000 BTU
• Heating Capacity: ranging from min:14,700 - max: 60,000 BTU
• Room Cooling/Heating Capacity: up to 2,250 sq ft
• Airflow Cooling CFM, Dry: 1,040-1,262-1,485
• Airflow Heating CFM, Dry: 1,040-1,262-1,485
• Noise Level dB(A), Cooling: 45-48-52
• Noise Level dB(A), Heating: 45-48-52
