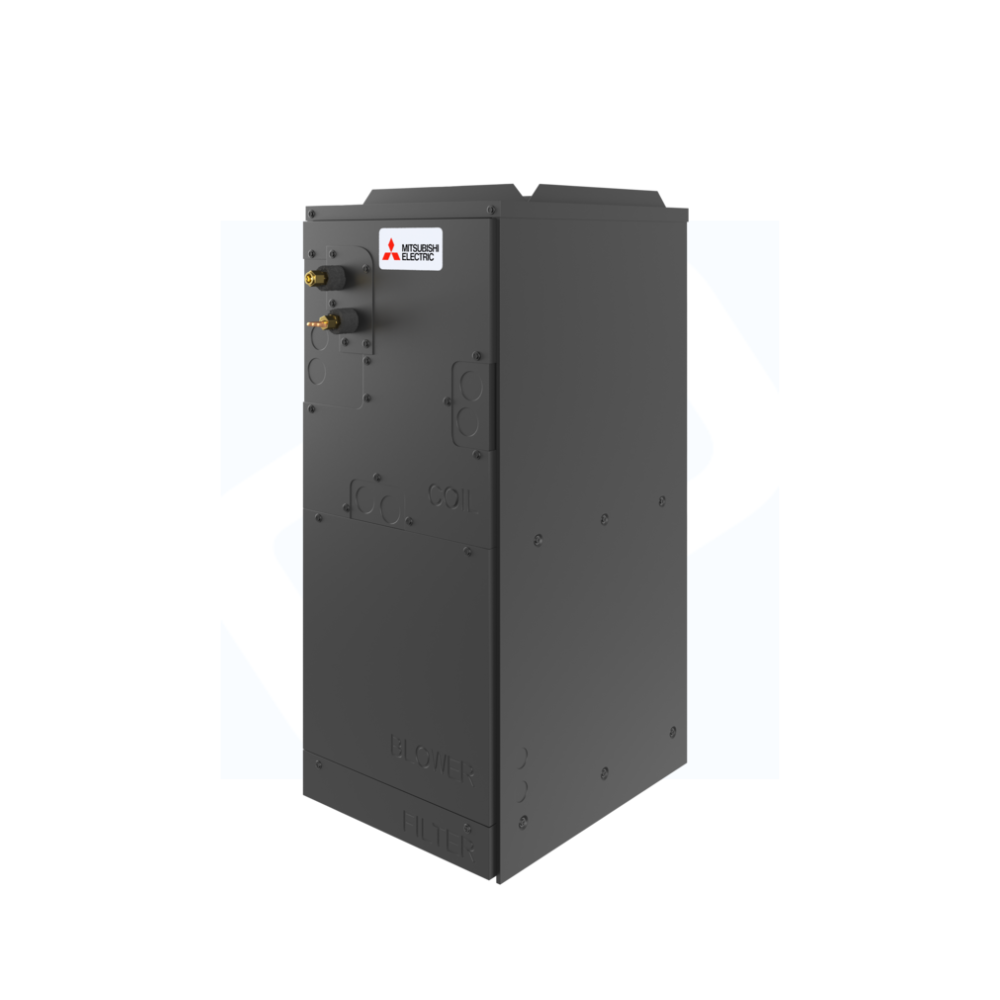

Mitsubishi Electric PVA-AA36NL R454B: 36,000 BTU P-Series Multi-Position Air Handler

Product Description

The Mitsubishi Electric PVA-AA36NL is a 36,000 BTU/h ducted air handler designed for single-zone applications. Its multi-position installation capability makes it ideal for various residential and light commercial settings, offering both flexibility and efficiency. Operates at low sound pressure levels, ranging from 30 to 38 dB(A), ensuring minimal noise disruption.

• Multi-Position Installation
• Efficient ECM Motor
• Fiberglass-Free Insulation

Product Highlights

This air handler features selectable static pressure, quiet operation, and a positive pressure cabinet. It also has a unique blow-through design and supports advanced controls.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PVA-AA36NL

Technical Specifications

• SKU: PVA-AA36NL
• Brand/Manufacturer: Mitsubishi
• HSPF2: 9.2
• Heating BTU: 36,000 BTU
• Maximum CFM: 788-1,125 CFM
• Decibel Level (dBA): 38-43 decibel
• Energy Star: Yes
• Refrigerant: R454B
• Tonnage: 3 Ton
• Zone Compatibility: Single Zone
• Height: 59 1/2"
• Width: 25"
• Depth: 21 5/8"
• Unit Type: Indoor Unit
• Product Line: P-Series PVA
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 36,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Indoor Unit: PVA-AA36NL
• Cooling Capacity up to: 37,000 BTU
• Heating Capacity up to: 40,000 BTU
• Room Cooling/Heating Capacity up to: 1,500 sq ft
• Airflow Cooling CFM, Dry: 788-956-1,125
• Airflow Heating CFM, Dry: 788-956-1,125
• Noise Level dB(A), Cooling: 38-43-43
• Noise Level dB(A), Heating: 38-43-43
• Cooling Capacity (BTU): 36000
• Heating Capacity (BTU): 36000
• Installation Type: Ducted
• Manufacturer Name: Mitsubishi
