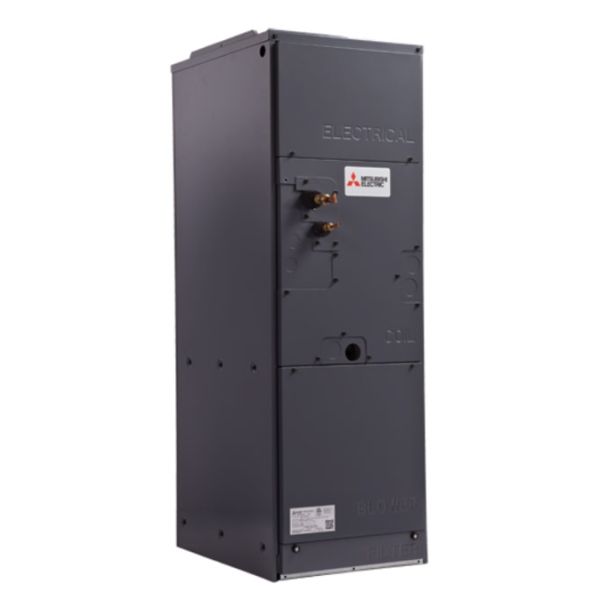

Mitsubishi Electric PVA-AA18NL 18,000 BTU P-Series Single Zone Central Mini Split Air Handler R454B

Product Description

The Mitsubishi Electric PVA-AA18NL is a ducted air handler with a capacity of eighteen thousand BTU per hour. This unit is suitable for single-zone applications in residential and light commercial settings. It supports multi-position installations, which provide flexibility in mounting options.

• Multi-position installation allows horizontal and vertical configurations.
• Equipped with an efficient ECM motor for energy savings.
• Includes fiberglass-free insulation to minimize condensation and enhance efficiency.

Product Highlights

The PVA-AA18NL offers adjustable external static pressure settings and multiple fan speeds to optimize airflow control.

Product Information

Standard Information

• Brand: Mitsubishi
• Manufacturer: Mitsubishi Electric

Technical Specifications

• SKU: PVA-AA18NL
• Weight: 113 pounds
• HSPF2: 8.6
• Heating BTU: 18,000 BTU
• Maximum CFM: 515-735 CFM
• Decibel Level: 31-40 dBA
• Energy Star: Yes
• Refrigerant: R454B
• Tonnage: 1.5 Ton
• Zone Compatibility: Single Zone
• Height: 50.25 inches
• Width: 17 inches
• Depth: 21.625 inches
• Unit Type: Multi-Position Air Handler
• Product Line: P-Series PVA
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• Unit Size: 18,000 BTU
• Line Set Size: 1/4 x 1/2 inches
• WiFi Enabled: Yes with Kumo Cloud
• Indoor Unit: PVA-AA18NL
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 23,000 BTU
• Airflow Rate: 515-625-735 CFM
• Room Capacity: Up to 850 sq ft
• Noise Level (Cooling): 28-36 dB(A)
• Noise Level (Heating): 28-36 dB(A)
• Installation Type: Ducted
• Type: Indoor Unit
• Series: PVA
