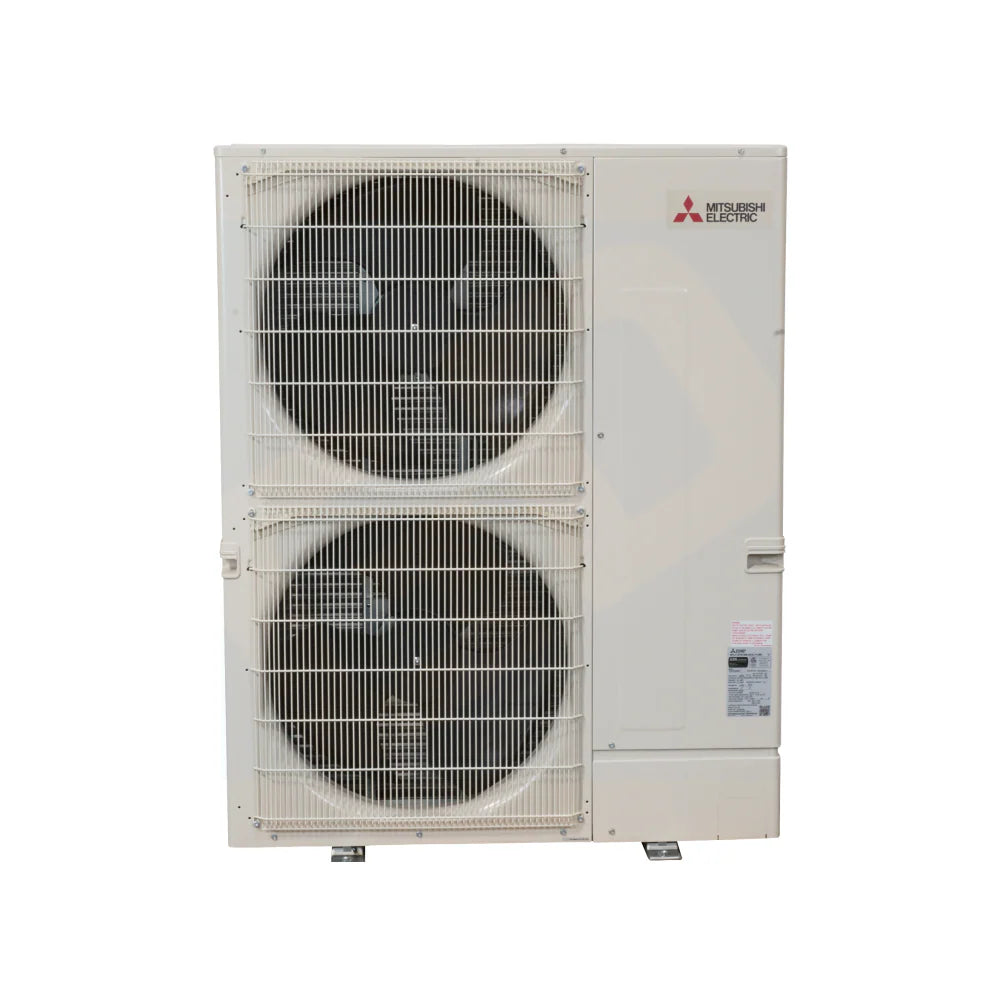

Mitsubishi Electric PUZ-AK60NL 60,000 BTU Hyper Heat Pump Outdoor Unit - R454B

Product Description

The Mitsubishi Electric PUZ-AK60NL is a high-capacity 60,000 BTU/H heat pump outdoor unit engineered for light commercial and large-scale residential applications. This unit features an inverter-driven twin rotary compressor that precisely adjusts energy usage to maintain consistent comfort levels while maximizing efficiency. Designed for durability in harsh environments, it includes Blue Fin anti-corrosion coating and specialized Seacoast Protection to safeguard the heat exchanger against salt and airborne contaminants. Operating on next-generation R454B refrigerant, the system provides reliable cooling and heating performance even in extreme conditions.

• Auto Changeover: The system automatically switches between heating and cooling modes to maintain the desired temperature.
• Inverter Driven Compressor: Advanced technology uses only the necessary energy to maintain precise space comfort.
• Seacoast Protection: Built-in design features protect the unit from the corrosive effects of salt-air environments.

Product Highlights

High-efficiency 60,000 BTU/H performance with advanced inverter technology, comprehensive corrosion protection, and reliable heating sustained down to -13°F.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK60NL

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: P-Series PUZ
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 60,000 BTU/H
• Line Set Size: 3/8" x 3/4"
• Outdoor Unit: PUZ-AK60NL
• Cooling Capacity (Rated): 60,000 BTU/H
• Heating Capacity (Rated): 64,500 BTU/H
• Heating Capacity at 17°F: 42,500 BTU/H
• Series: PUZ-AK-NL
• Product Category: Heat Pump Outdoor Unit
• Refrigerant Type: R454B
• Outdoor Unit Size: 60,000 BTU/H
• Cooling BTU Range: 18,500 to 60,000 BTU/H
• Heating BTU Range: 14,600 to 66,500 BTU/H
• Minimum Outdoor Temperature for Heating: -13°F
• Minimum Outdoor Temperature for Cooling: 23°F
• SEER2: 18.30
• EER2: 9.80
• HSPF2: 8.40
• Voltage: 208/230V
• Phase: 1 ph
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 38 Amps
• Maximum Overcurrent Protection (MOCP): 67 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Energy Star Listed: No
• ETL Listed: Yes
• Installation Location: Outdoor
• Base Pan Heater Included: Optional
• Maximum Line Length: 245 Feet
• Maximum Height Difference: 100 Feet
• Gas Connection Size: 3/4 Inch
• Power Input (Cooling Rated): 6,070 W
• Power Input (Heating Rated): 6,590 W
• Cooling Operating Temperature: 23°F to 115°F
• Heating Operating Temperature: -13°F to 70°F
