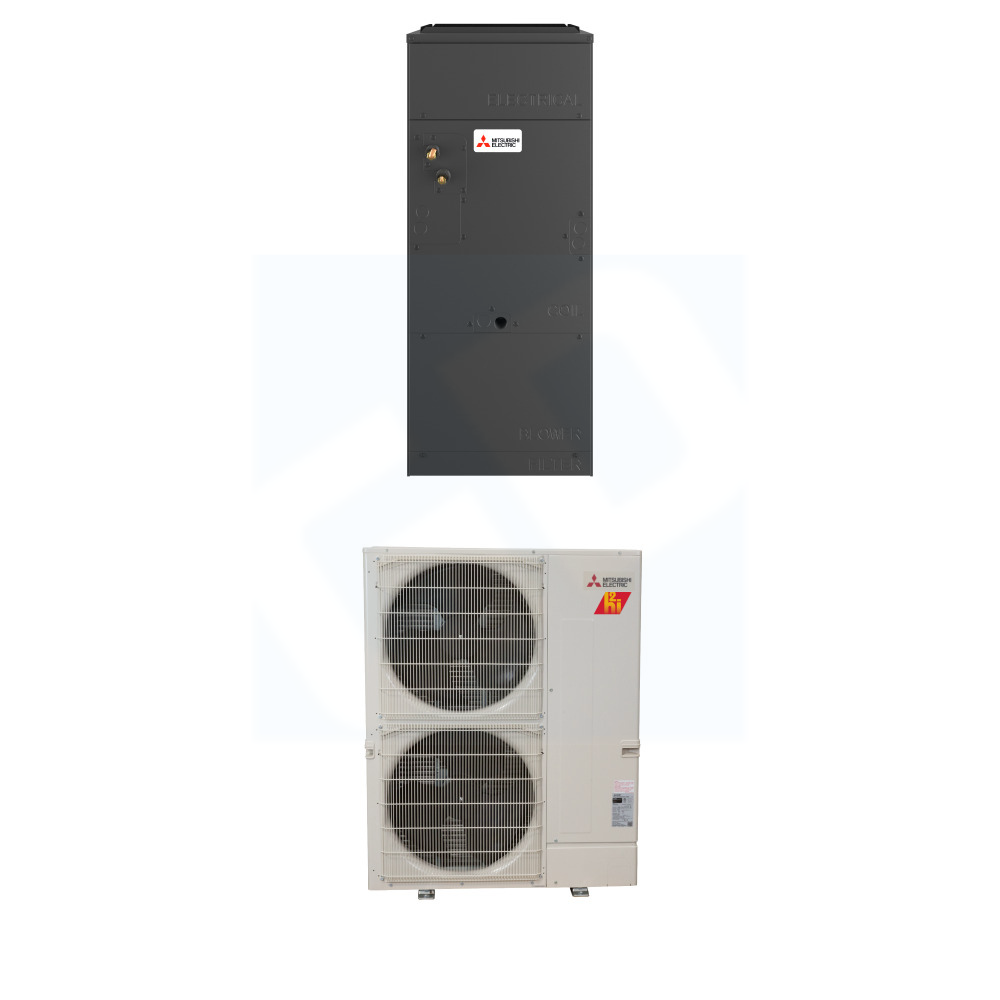

Mitsubishi Electric PUZ-AK42NLHZ PVA-AA42NL & PUZ-AK42NLHZ 42,000 BTU 18.7 SEER2 Multi-Position Air Handler Hyper Heat System - R454B

Product Description

The Mitsubishi Electric PVA-AA42NL & PUZ-AK42NLHZ is a 42,000 BTU ENERGY STAR® ducted heat pump system ideal for 1,750 sq ft. It delivers Hyper-Heat down to -13 °F, quiet operation, smart control compatibility, and flexible multi-position installation. The system is suitable for both cooling and heating, and is designed for single-zone applications.

• ENERGY STAR® certified
• Hyper-Heat down to -13 °F
• Smart control compatibility

Product Highlights

This ducted air handler provides a solution to cool and heat large zones with a highly efficient ECM motor and fiberglass-free insulation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK42NLHZ

Technical Specifications

• Unit Type: Single Zone
• Product Line: PVA Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 42,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No

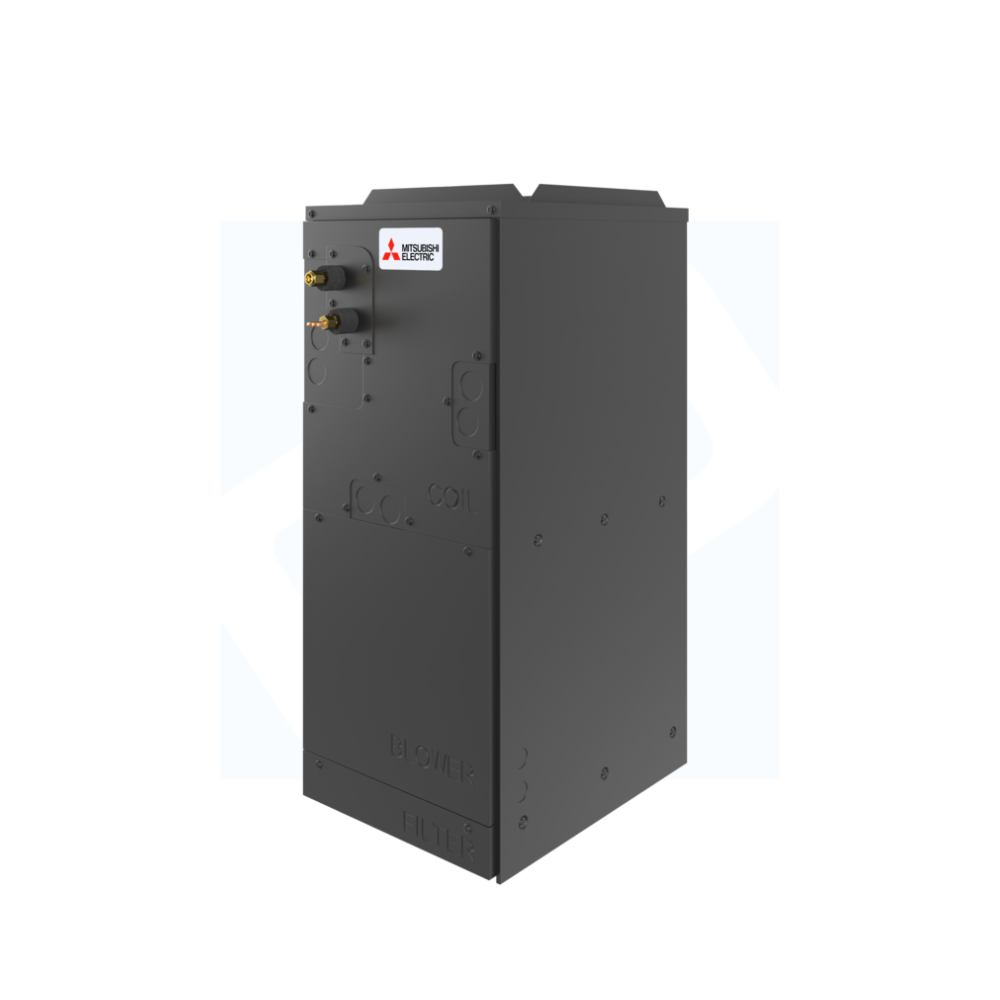

• Indoor Unit: PVA-AA42NL

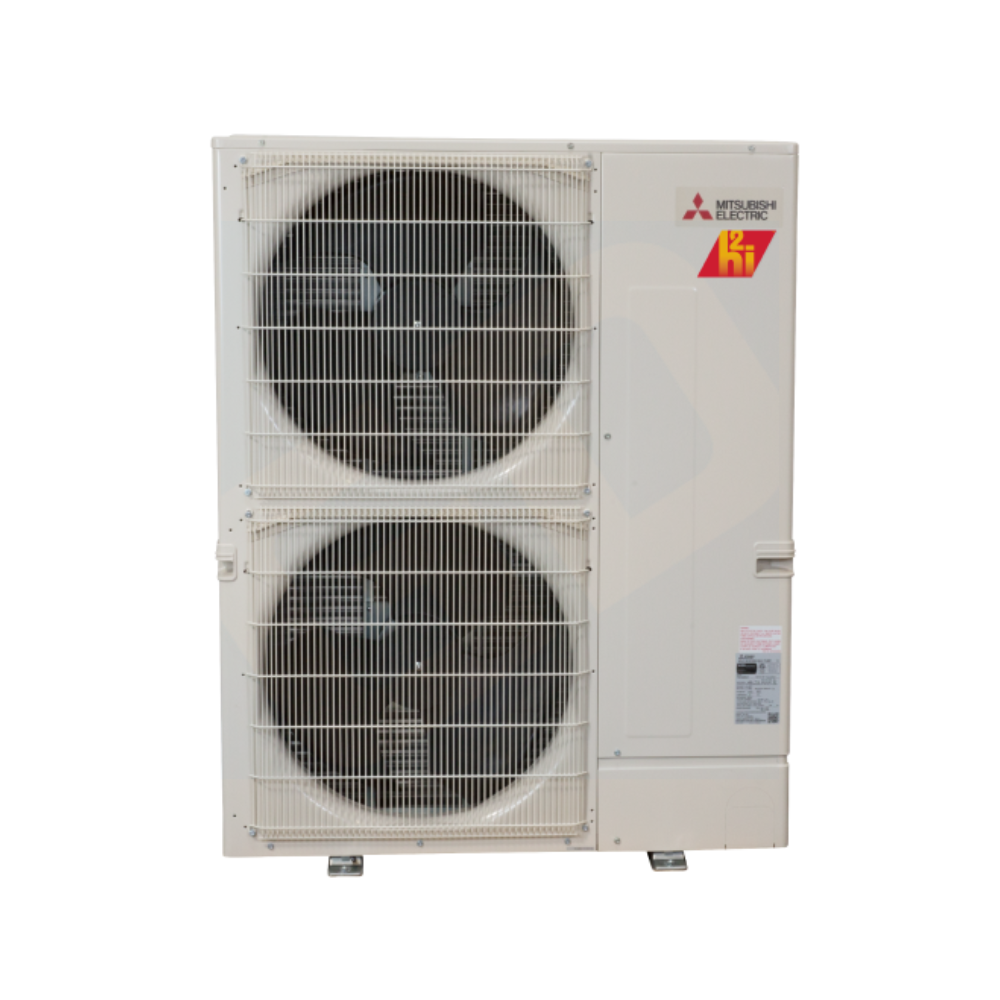

• Outdoor Unit: PUZ-AK42NLHZ
• Cooling Capacity up to: 43,000 BTU
• Heating Capacity up to: 54,000 BTU
• SEER2: 18.7
• EER2: 11.4
• HSPF2: 8.7
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: N/A
• Room Cooling/Heating Capacity up to: 1,750 sq ft
• Airflow Cooling CFM, Dry: 1,040-1,262-1,485
• Airflow Heating CFM, Dry: 1,040-1,262-1,485
• Noise Level dB(A), Cooling: 45-48-52
• Noise Level dB(A), Heating: N/A
• Series: P-Series
• Type: Heat pump
• Model: PUZ-NLHZ
• Capacity range: 24,000 to 42,000 BTU/H
• Sound level: As low as 52 dB(A)
• Refrigerant: R454B
• Amperage Rating: 35 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 17200 to 43000 Btu/hr
• Cooling Operating Temperature: 23 to 115 deg F
• Drive Type: Inverter
• Frequency Rating: 60 Hz
• Fuse Rating: 40 A
• Heating BTU Rating: 16100 to 54000 Btu/hr
• Heating Operating Temperature: -13 to 70 deg F
• Liquid Line Size: 3/8 in
• Phase: 1 ph
• Power Rating: 4220 W Cooling, 5260 W Heating
• Suction Line Size: 5/8 in
• Voltage Rating: 208/230 V
