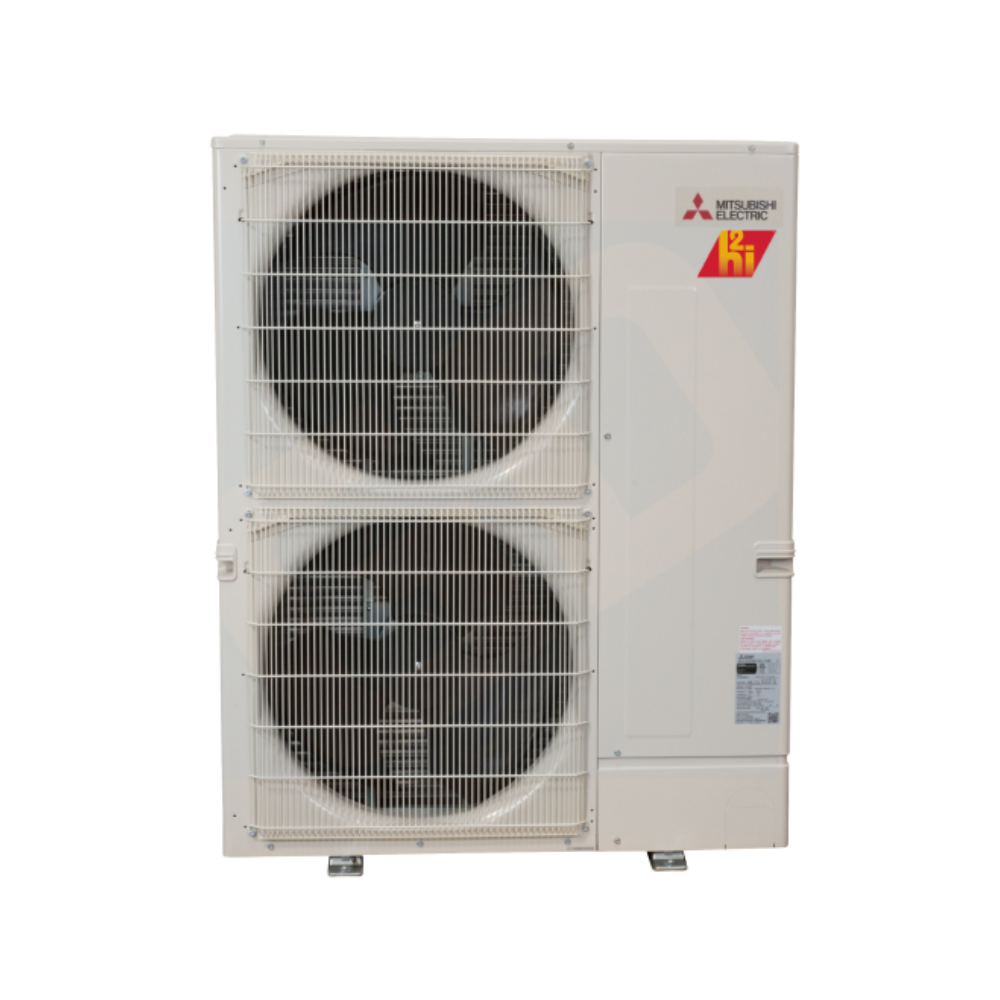

Mitsubishi Electric PUZ-AK36NLHZ 36,000 BTU Hyper Heat Pump Outdoor Unit - R454B

Product Description

The Mitsubishi Electric PUZ-AK36NLHZ is a 36,000 BTU Hyper-Heating outdoor unit offering efficient year-round comfort with heating down to -13°F and high SEER2 cooling. It features durable construction and quiet operation. Compatible with multiple indoor unit types, it uses R454B refrigerant and operates at 208/230 Volts. The unit provides cooling from 14400 to 37000 BTU/hr and heating from 13000 to 40000 BTU/hr.

• Built-in base pan heater
• High Speed Start-up: Hyper-Heating INVERTER reduces the time for heating at start up by about half compared to standard models
• Hyper-Heating INVERTER: Variable speed INVERTER-driven compressor

Product Highlights

Efficient year-round comfort with heating down to -13°F, durable construction, and quiet operation.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK36NLHZ

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: P-Series PUZ
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 36,000 BTU
• Line Set Size: 3/8" x 5/8"
• Outdoor Unit: PUZ-AK36NLHZ
• Cooling Capacity: up to 36,000 - 37,000 BTU
• Heating Capacity: up to 40,000 BTU
• Room Cooling/Heating Capacity: up to 1,500 sq ft
• Series: PUZ-AK-NLHZ Series
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split Heat Pump System
• Refrigerant Type: R-454B
• Outdoor Unit Size: 36000 BTU
• DOE Regional Compliance: Nationwide
• Cooling BTU Rating: 14400 to 37000 Btu/hr
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• SEER2: 22.2
• EER2: 12.2
• HSPF2: 9.5
• Voltage: 208/230 Volts
• Phase: 1 ph
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 29 Amps
• Recommended Breaker Size: 48 Amps
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215712214
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Line Length: 245 Feet
• Gas Connection Size: 5/8 Inch
• Power Rating: 3040 W Cooling, 2790 W Heating
• Cooling Operating Temperature: 23 to 115 deg F
• Cooling Sound Level: 52 dBA
• Heating Operating Temperature: -13 to 70 deg F
• Heating Sound Level: 53 dBA
• Maximum Air Flow: 990 CFM
• Minimum Air Flow: 705 CFM
• Minimum Sound Level: 37 dB
• Sound level: As low as 52 dB(A)
• EER Rating: 12.2
• HSPF Rating: 9.5
• Heating CFM Rating: 3740 cfm
• Cooling CFM Rating: 3740 cfm
