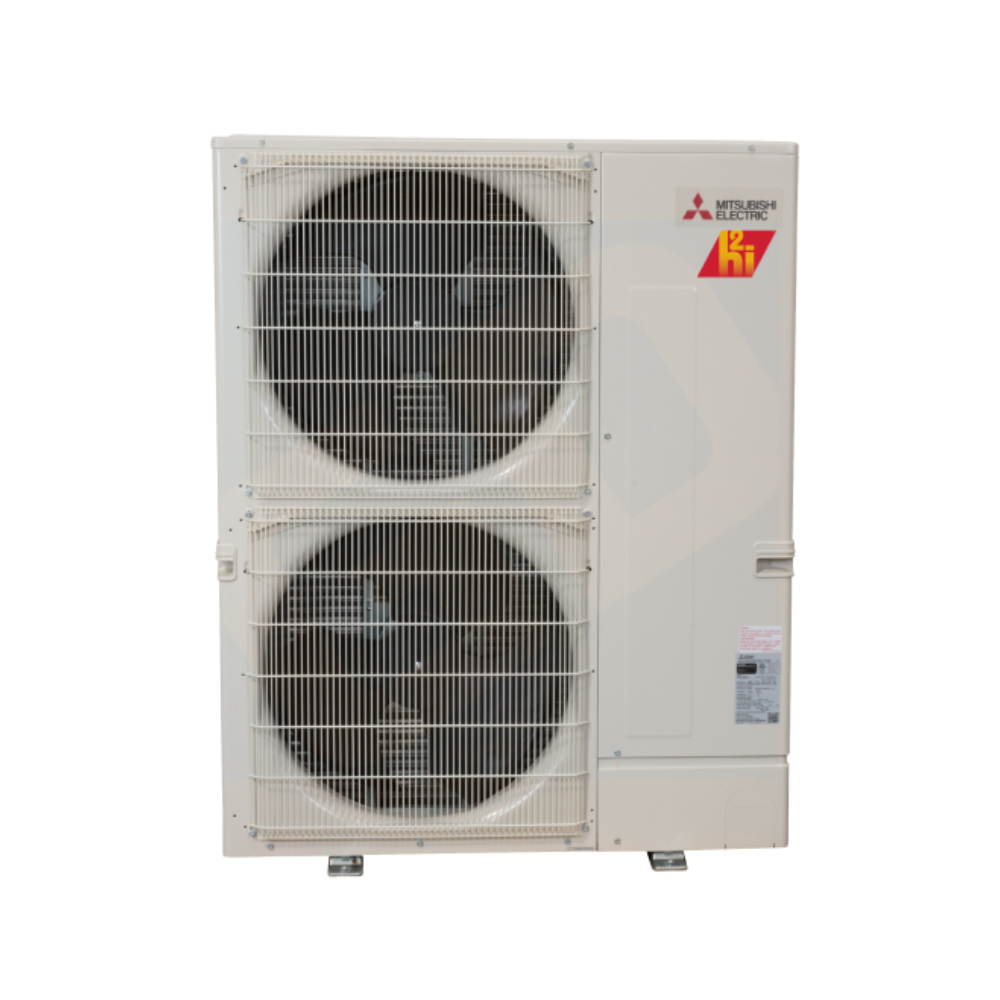

Mitsubishi Electric PUZ-AK30NLHZ Odu;Puz;H2I;30KBTU;W/Heater;R454B

Product Description

The MITSUBISHI ELECTRIC PUZ-AK30NLHZ is an ODU;PUZ;H2I;30KBTU;W/HEATER;R454B. This 30,000 BTU Hyper-Heating outdoor condenser offers efficient heating down to -13°F and cooling with R-454B refrigerant. It features quiet operation, durable construction, and versatile indoor compatibility for year-round comfort. Part of the P-Series PUZ product line, this unit operates in both cooling and heating modes.

• Built-in base pan heater
• High Speed Start-up: Hyper-Heating INVERTER reduces the time for heating at start up by about half compared to standard models
• Wide Heating Range: heating performance down to -13 deg F (average of 80% heating capacity)

Product Highlights

The PUZ-AK30NLHZ heat pump is designed for efficient and reliable heating and cooling, even in extreme temperatures. It is suitable for a variety of applications, including apartment buildings, churches, or strip malls.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK30NLHZ

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: P-Series PUZ
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 1
• System Capacity: 30,000 BTU
• Line Set Size: 3/8" x 5/8"
• Outdoor Unit: PUZ-AK30NLHZ
• Cooling Capacity: up to 30,800 - 31,000 BTU
• Heating Capacity: up to 34,000 - 35,000 BTU
• Room Cooling/Heating Capacity: up to 1,250 sq ft
• Series: PUZ-AK-NLHZ Series
• Refrigerant: R-454B
• SEER2: Up to 23.8
• HSPF2: Up to 9.9
• Type: Heat pump
• Model: PUZ-NLHZ
• Sound level: As low as 52 dB(A)
• Cooling BTU: 30000
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• EER2: 12.7
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 29 Amps
• Recommended Breaker Size: 48 Amps
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215712206
• Outdoor Condenser - Type: Outdoor Condenser
• Outdoor Condenser - Product Line: P-Series H2i
• Outdoor Condenser - Product Sub-line: Hyper-Heating
• Outdoor Condenser - Product Category: Mini Split System Components
• Outdoor Condenser - Operating Mode: Heating and Cooling
• Outdoor Condenser - Maximum Number of Zones: 1
• Outdoor Condenser - Multi-Zone Compatible: No
• Outdoor Condenser - Refrigerant Type: R-454B
• Outdoor Condenser - Installation Location: Outdoor
• Outdoor Condenser - Base Pan Heater Included: Yes
• Outdoor Condenser - Cooling BTU: 30000
• Outdoor Condenser - Cooling Capacity: 30000 BTU
• Outdoor Condenser - Heating Capacity: 34000 BTU
• Outdoor Condenser - Maximum Sound Level: 53 dB
• Outdoor Condenser - Low Ambient Heating: Yes
• Outdoor Condenser - Maximum Line Length: 245 Feet
• Outdoor Condenser - Gas Connection Size: 5/8 Inch
• Outdoor Condenser - Product Height: 52 2/3 Inches
• Outdoor Condenser - Product Width: 41 17/48 Inches
• Outdoor Condenser - Product Depth: 14 Inches
• Amperage Rating: 29 A
• Compressor Type: Twin Rotary
• Connection Type: Flared
• Cooling BTU Rating: 12300 to 31000 Btu/hr
• Cooling CFM Rating: 3740 cfm
• Cooling Operating Temperature: 23 to 115 deg F
• Cooling Sound Level: 52 dBA
• Drive Type: Inverter
• EER Rating: 12.3
• Fuse Rating: 30 A
• HSPF Rating: 9.4
• Heating BTU Rating: 11500 to 35000 Btu/hr
• Heating CFM Rating: 3740 cfm
• Heating Operating Temperature: -13 to 70 deg F
• Heating Sound Level: 53 dBA
• Liquid Line Size: 3/8 in
• Overall Height: 52-43/64 in
• Overall Length: 41-11/32 in
• Overall Width: 14 in
• Power Rating: 2550 W Cooling, 2710 W Heating
• SEER Rating: 21.9
