Mitsubishi Electric PUZ-AK24NLHZ P-Series H2i Ductless Mini Split Heat Pump System - Single-Zone - 24k BTU - 21.8 SEER2

Product Description

The Mitsubishi Electric PUZ-AK24NLHZ P-Series H2i mini split system provides efficient, user-friendly comfort solutions. Designed for large homes or businesses, this single-zone heat pump system delivers effective heating and cooling. It features advanced technology to modulate temperature, avoiding energy-wasting overshoots and short-cycling. The condenser is constructed with industrial-grade materials for consistent performance in harsh conditions.

• H2i Technology: Provides heating in outdoor conditions as low as -13 degrees Fahrenheit.
• Precision Temperature Control Technology: Improves temperature accuracy and system efficiency through precise adjustments of compressor speed and refrigerant flow.
• Dehumidification: Removes unwanted moisture, improving comfort and reducing the chance of mold growth.

Product Highlights

The PUZ-AK24NLHZ mini split system ensures consistent performance with its industrial-grade construction and advanced temperature modulation technology.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK24NLHZ

Technical Specifications

• Condition: New
• Type: Wall Mounted
• Product Line: P-Series H2i
• Product Sub-line: Hyper-Heating
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 24
• Outdoor Unit Size: 24000 BTU
• DOE Regional Compliance: Nationwide
• Line Set Size: 3/8" x 5/8"
• Cooling BTU: 24000
• Cooling Capacity: 24000 BTU
• Heating Capacity: 28000 BTU
• Maximum Sound Level: 45 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -13 F
• Minimum Outdoor Temperature for Cooling: 23 F
• SEER2: 21.8
• EER2: 14.5
• HSPF2: 9.4
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 24 Amps
• Recommended Breaker Size: 39 Amps
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215712197
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: Yes
• Maximum Sound Level (Outdoor): 53 dB
• Maximum Line Length: 165 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 52.666666666666664 Inches
• Product Width: 41.35416666666667 Inches
• Product Depth: 14 Inches
• Product Weight (Outdoor): 231 Pounds
• Product Line (Indoor): P-Series
• Product Category (Indoor): Mini Split System Components
• Multi-Zone Compatible (Indoor): No
• Installation Location (Indoor): Indoor
• Moisture Removal: 6.2 Pints/Hour
• Maximum Air Flow: 775 CFM
• Minimum Air Flow: 635 CFM
• Minimum Sound Level (Indoor): 39 dB
• Maximum Sound Level (Indoor): 45 dB
• Gas Connection Size (Indoor): 5/8 Inch
• Liquid Connection Size (Indoor): 3/8 Inch
• Product Height (Indoor): 14.375 Inches
• Product Width (Indoor): 46.0625 Inches
• Product Depth (Indoor): 11.625 Inches
• Product Weight (Indoor): 46 Pounds
• System Capacity: 24,000 BTU
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No

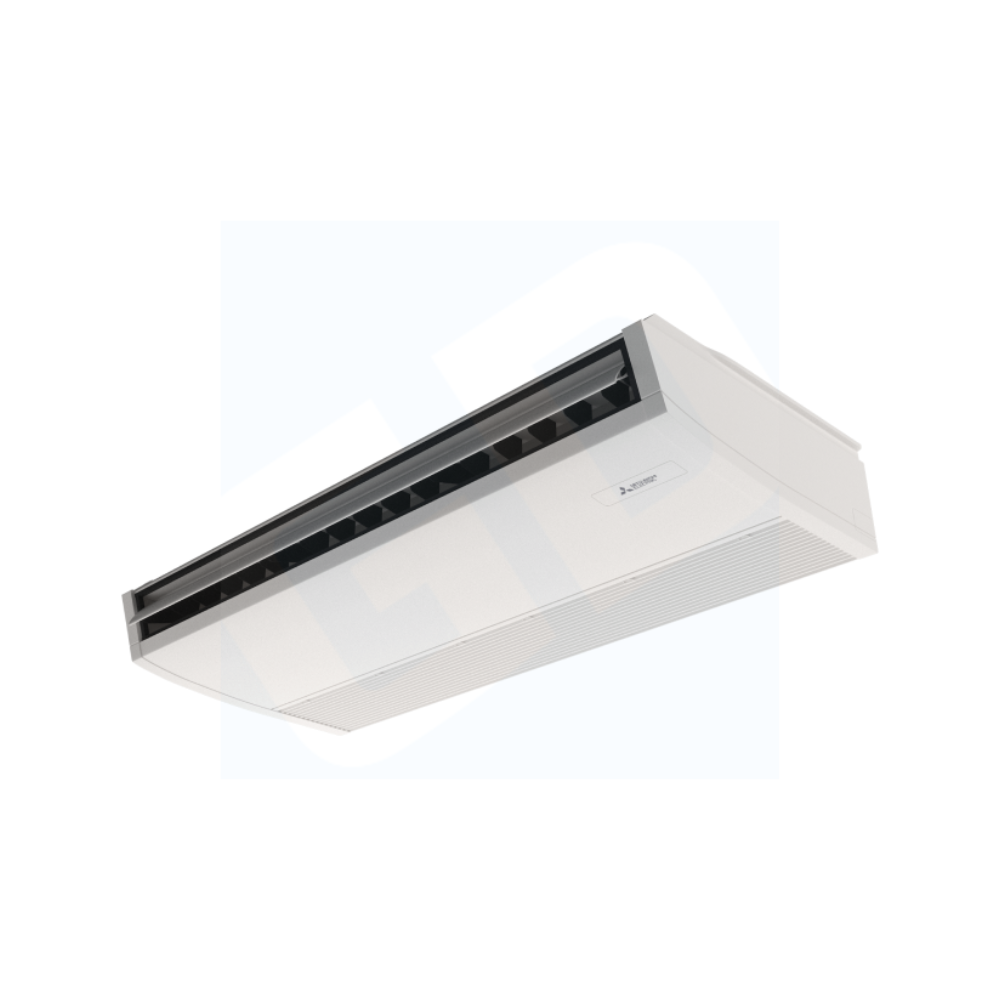

• Indoor Unit: PCA-AK24NL

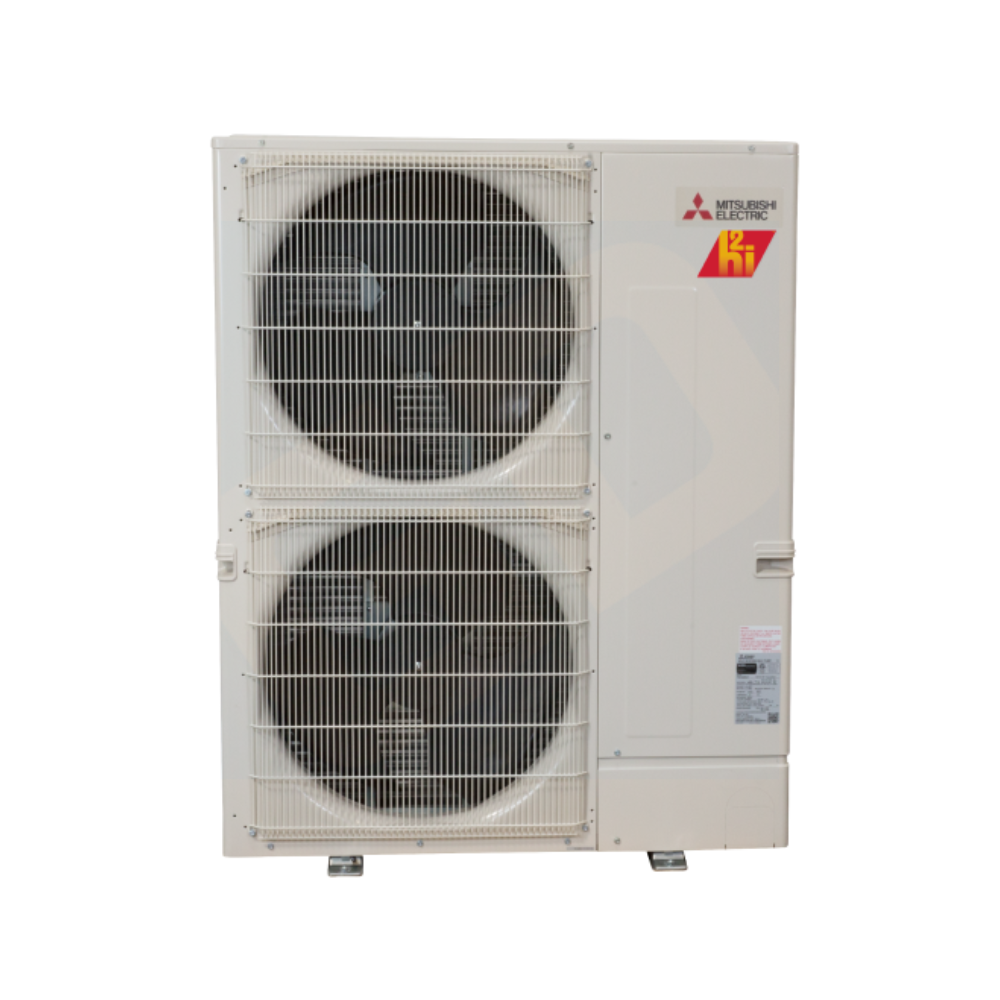

• Outdoor Unit: PUZ-AK24NLHZ
• Cooling Capacity up to: 24,800 BTU
• Heating Minimum Temp: -22 F
• Cooling Minimum Temp: N/A
• Room Cooling/Heating Capacity up to: 1,000 sq ft
• Airflow Cooling CFM, Dry: 495-530-565-635
• Airflow Cooling CFM, Wet: 530-565-600-670
• Airflow Heating CFM, Dry: 495-530-565-635
• Noise Level dB(A), Cooling: 33-35-37-40
• Noise Level dB(A), Heating: 33-35-37-40
• Size W x D x H: 50-3/8" x 26-3/4" x 9-1/16"
• Suction Connection Size: 5/8 Inch
