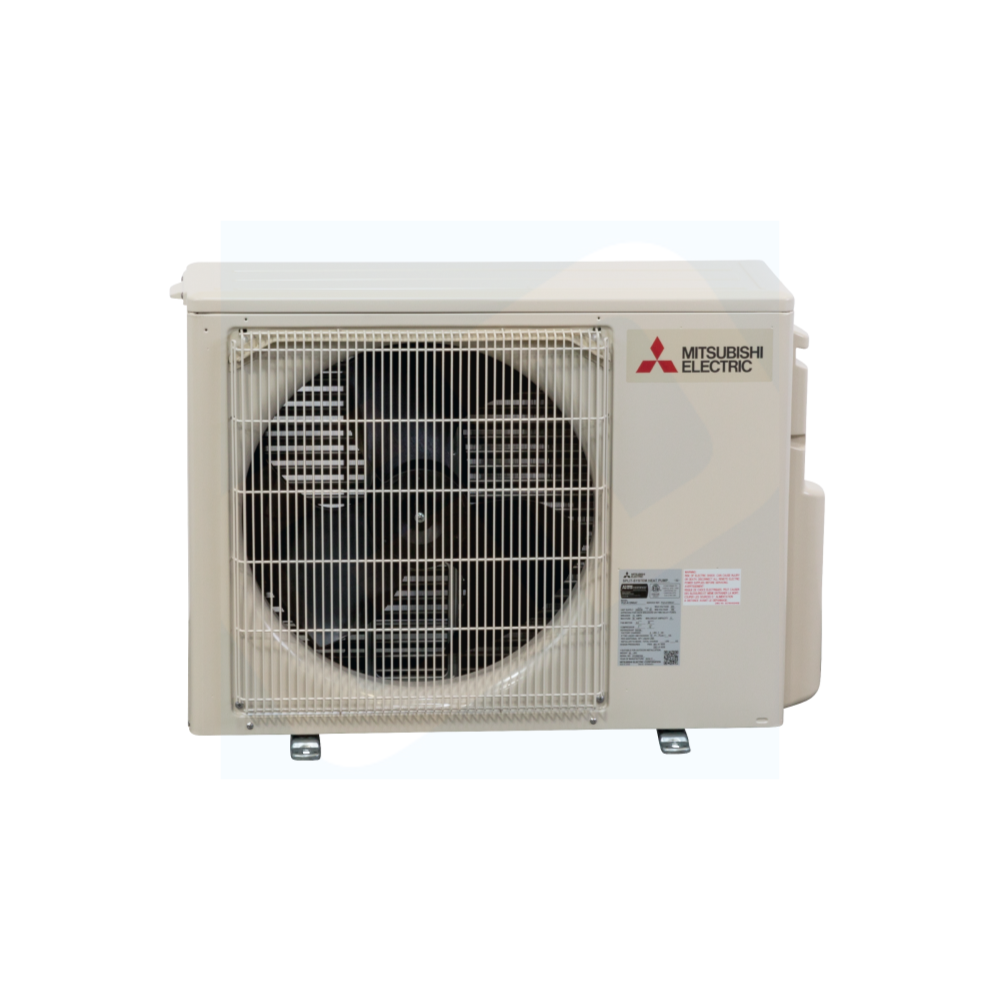

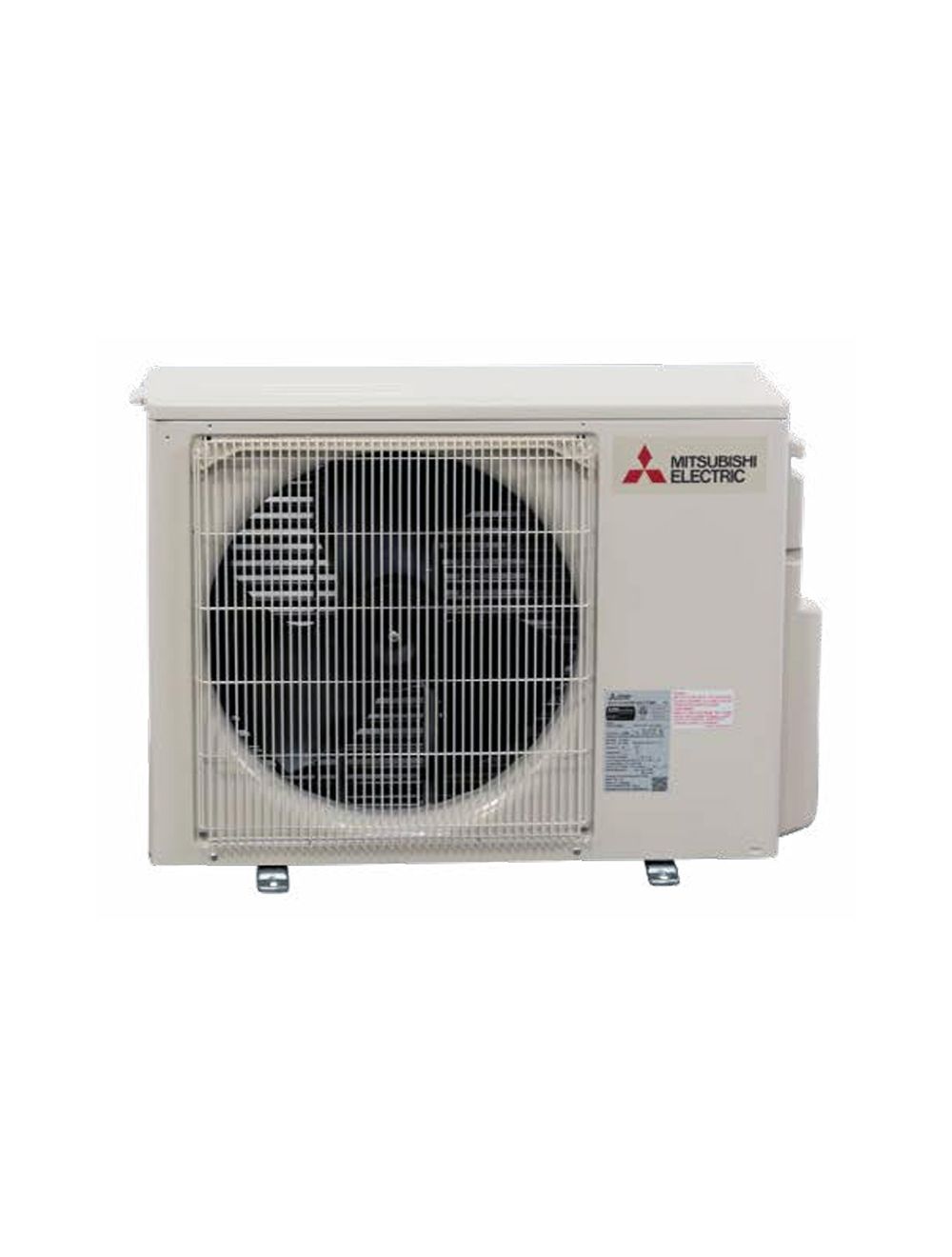

Mitsubishi Electric PUZ-AK18NL Mini-Split Heat Pump Outdoor Unit

Product Description

The Mitsubishi Electric PUZ-AK18NL is an outdoor mini-split heat pump condenser designed for single-zone applications. It operates on 208/230V and uses R-454B refrigerant. This unit features an inverter-driven compressor which adjusts capacity to maintain stable temperatures in various conditions.

• Twin rotary compressor for enhanced performance.
• Continuous operation in cooling mode for up to 24 hours.
• Efficient cooling even at low ambient temperatures, down to 0°F.

Product Highlights

This unit is built with Blue Fin coating for corrosion resistance, making it ideal for coastal areas. It is pre-charged with refrigerant, simplifying installation for specified line lengths.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PUZ-AK18NL

Technical Specifications

• Type: Outdoor Unit
• Series: PUZ-AH-NL
• Voltage: 208/230 V
• Amperage: 16 A
• Frequency: 60 Hz
• Refrigerant: R-454B
• Compressor: Twin Rotary Compressor
• Unit Capacity: 18,000 BTU
• Cooling BTU/hr: 4700 to 18500
• Heating BTU/hr: 4200 to 22000
• Cooling Wattage: 1590 W
• Heating Wattage: 1900 W
• EER Rating: 11.7
• SEER: 20.1
• HSPF: 8.8
• Cooling CFM Rating: 1590 cfm
• Cooling Operating Temperature: 23 to 115 deg F
• Heating Operating Temperature: -4 to 70 deg F
• Dimensions: 34-19/64 W x 11-13/16 D x 24-13/16 H
• Color: Ivory
