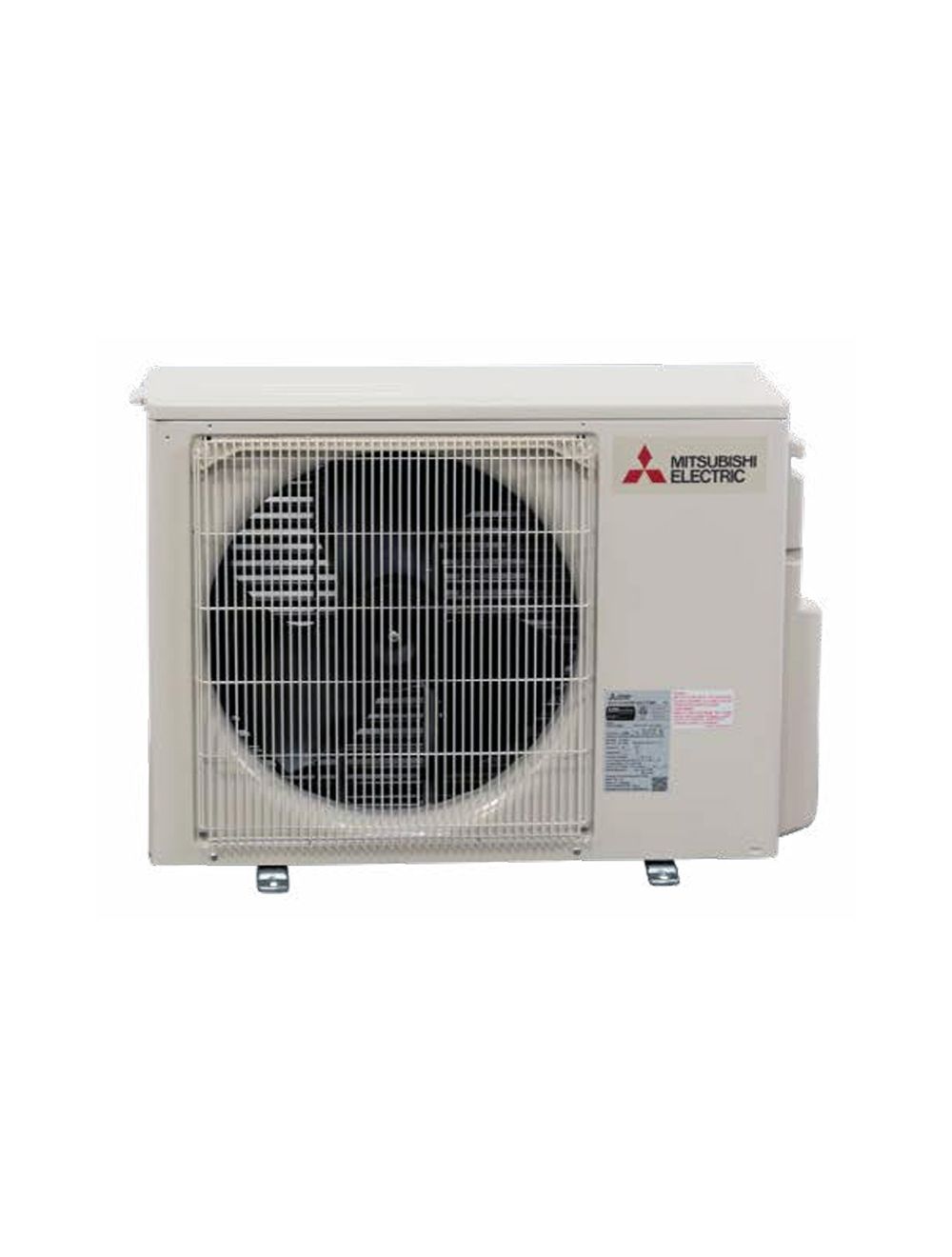

Mitsubishi Electric PUZ-AK12NL R454B P-Series Heat Pump Condenser 12000 BTU

Product Description

The Mitsubishi Electric PUZ-AK12NL is a R454B P-Series heat pump condenser with a 12000 BTU capacity. Designed to bring efficient heating and cooling to residential and light-commercial spaces, this single-zone outdoor unit offers inverter-driven efficiency and weather-resistant durability. It is compatible with a variety of indoor units and is ideal for spaces needing reliable, quiet cooling.

• Features precision temperature control technology.
• Equipped with an inverter-driven compressor for efficient operation.
• Offers a wide temperature operation range.

Product Highlights

This heat pump condenser provides superior energy efficiency and is suitable for diverse climate conditions.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-AK12NL

Technical Specifications

• Product Line: P-Series
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-454B
• Outdoor Unit Size: 12000 BTU
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 18000 BTU
• Maximum Sound Level: 34 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 23 F
• SEER2: 20.0
• EER2: 14.4
• HSPF2: 9.5
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 16 Amps
• Recommended Breaker Size: 27 Amps
• Suction Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Energy Star Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 215712173
• Multi-Zone Compatible: No
• Installation Location: Outdoor
• Base Pan Heater Included: No
• Maximum Line Length: 100 Feet
• Gas Connection Size: 1/2 Inch
• Product Height: 24 13/16 Inches
• Product Width: 34 1/4 Inches
• Product Depth: 11 13/16 Inches
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Moisture Removal: 1 Pint/Hour
• Maximum Air Flow: 494 CFM
• Minimum Air Flow: 353 CFM
• Minimum Sound Level: 27 dB
• Unit Type: Outdoor Unit
• System Capacity: 12,000 BTU
• Model Number: PUZ-AK12NL
