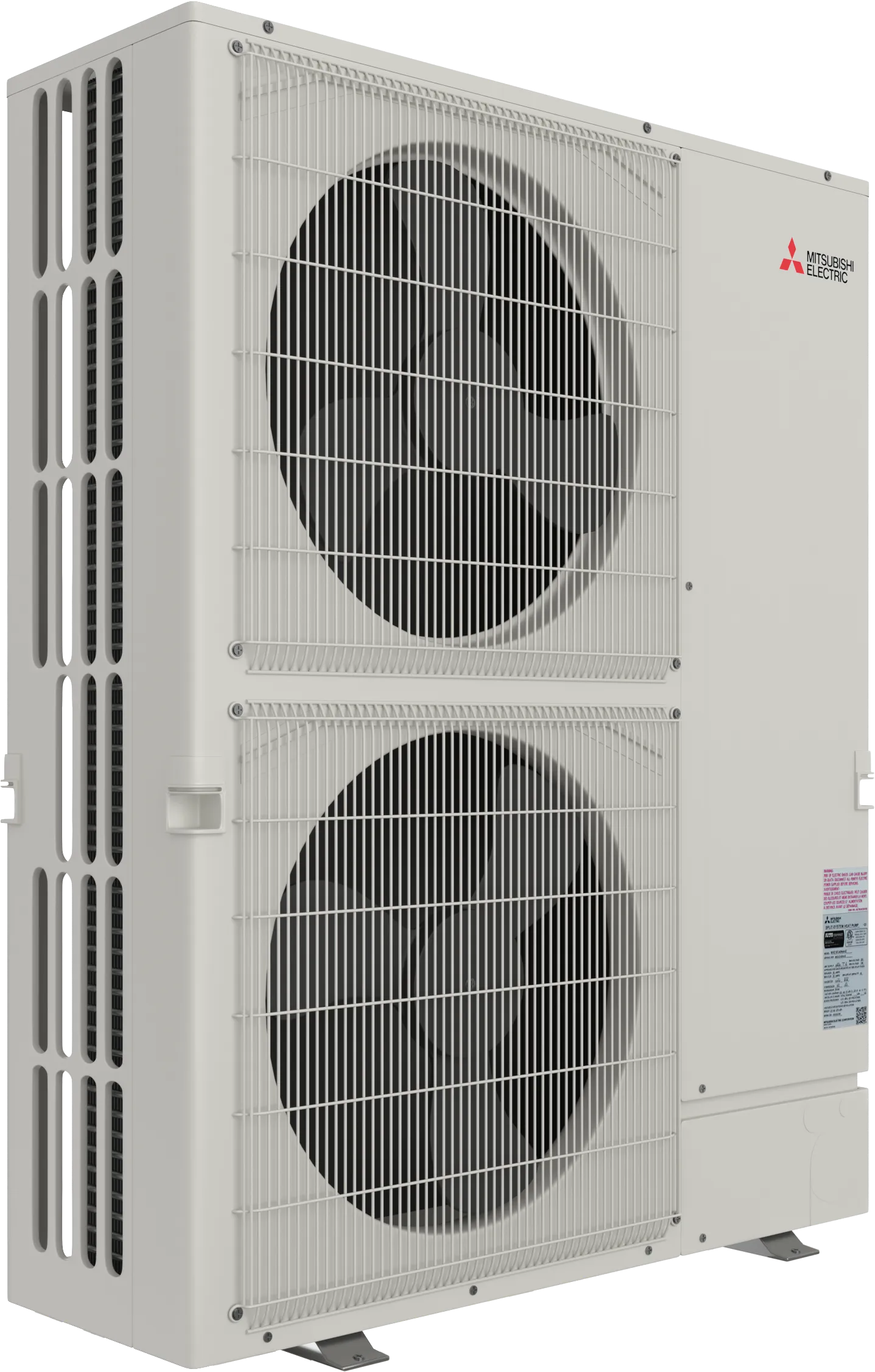

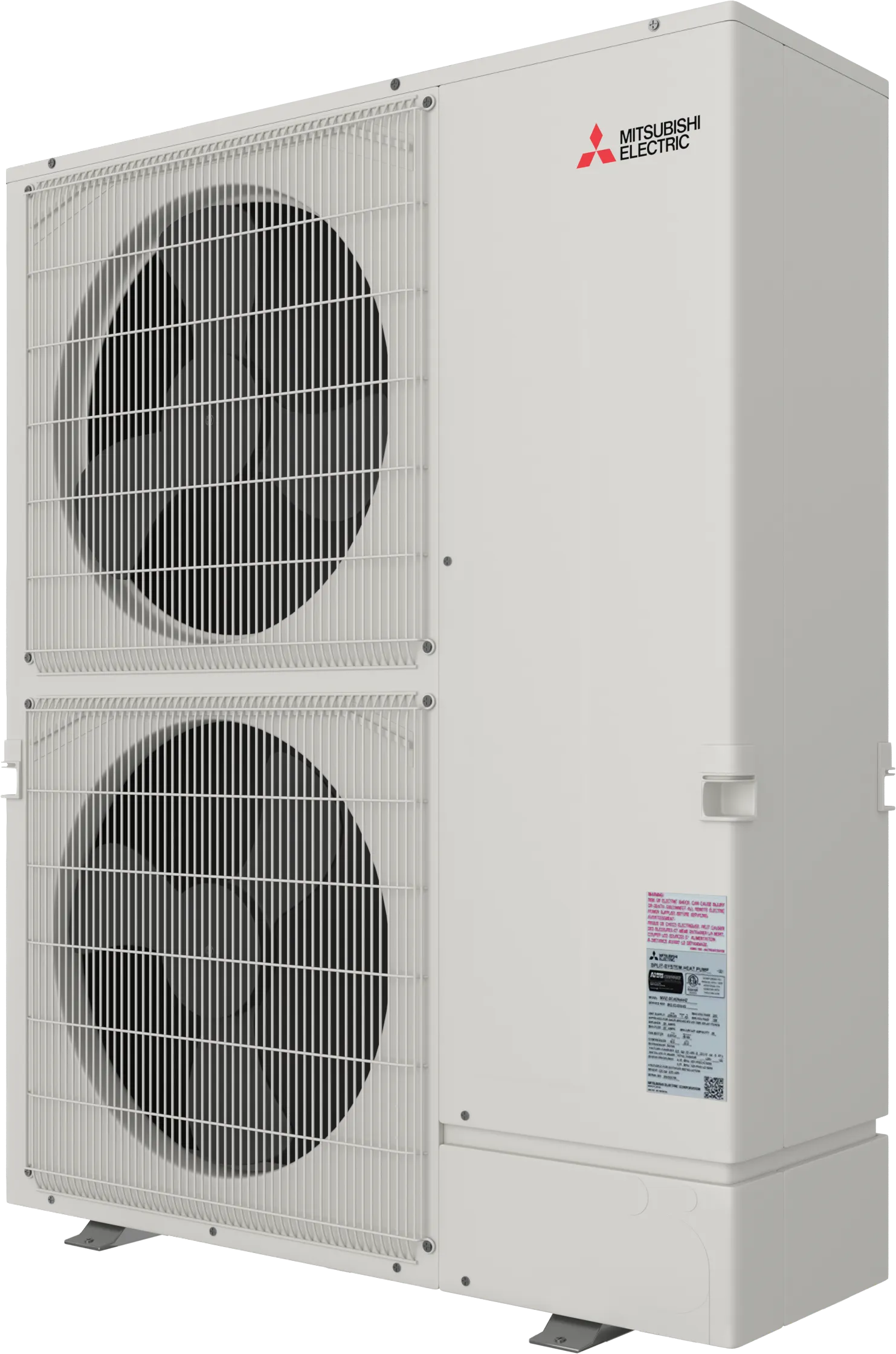

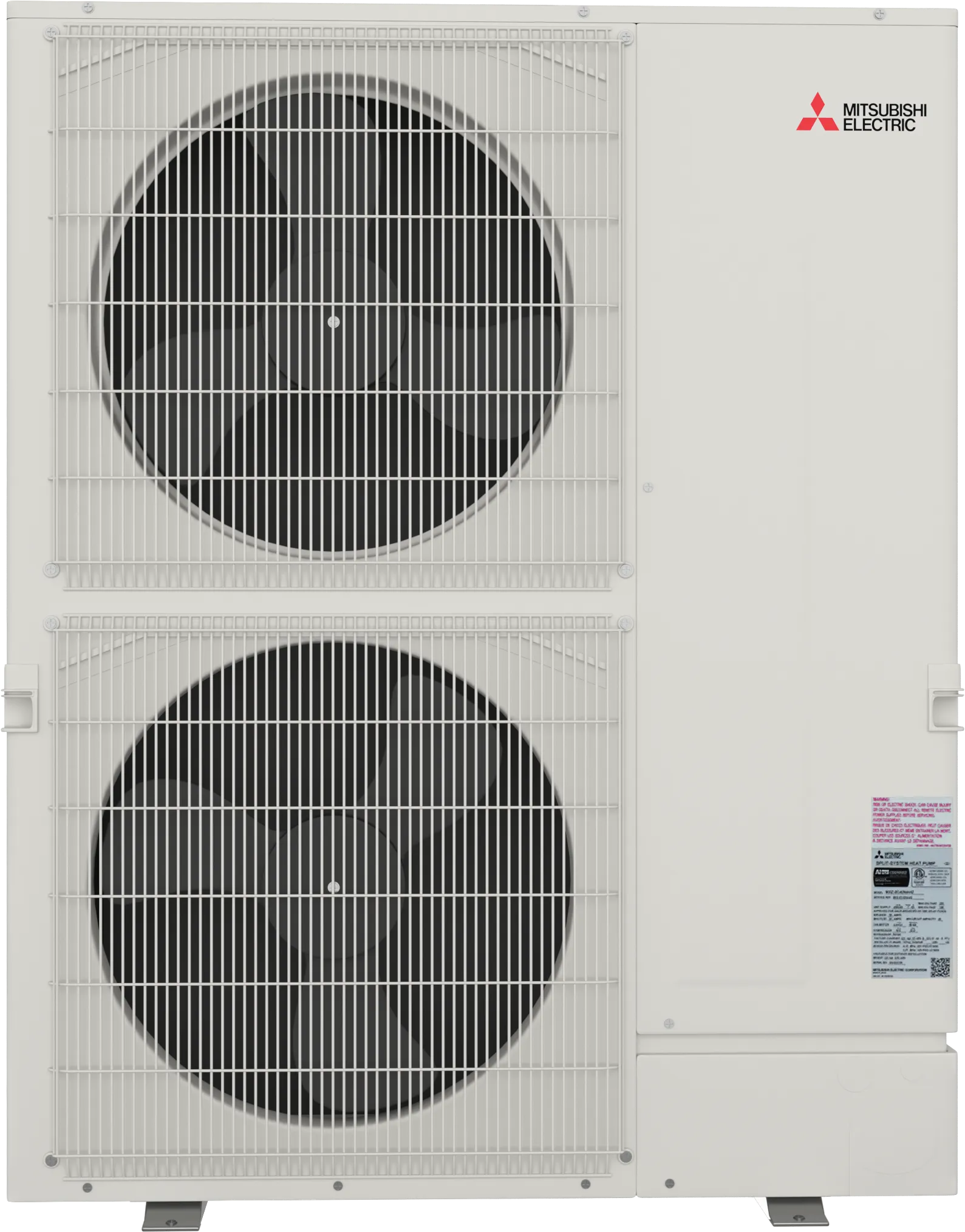

Mitsubishi Electric PUZ-A42NKA7 P-Series Outdoor Condenser 42000 BTU

Product Description

The Mitsubishi Electric PUZ-A42NKA7 P-Series outdoor condenser requires a compatible indoor unit for functionality. Equipped with inverter technology and an electronic linear expansion valve, it improves temperature accuracy and system efficiency. The condenser features an anti-rust coating to extend its lifespan and an inverter-driven compressor to ensure optimal performance with minimal energy consumption. It operates in both heating and cooling modes.

• Features precision temperature control technology.
• Equipped with a seacoast protected condenser.
• Utilizes an energy-efficient inverter compressor.

Product Highlights

This Mitsubishi Electric outdoor condenser provides efficient and user-friendly comfort solutions with its advanced technology and durable construction.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUZ-A42NKA7

Technical Specifications

• Type: Outdoor Condenser
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Cooling BTU: 42000
• Cooling Capacity: 42000 BTU
• Heating BTU: 48000
• Maximum Sound Level: 52 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 25 Amps
• Recommended Breaker Size: 30 Amps
• Maximum Line Length: 165 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 52.75 Inches
• Product Width: 41.31 Inches
• Product Depth: 14 Inches
• Shipping Weight: 245 Pounds
• ETL Listed: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Series: P-Series
• Model: PUZ
• SEER2: Up to 26.9
• HSPF2: Up to 10.9
• Refrigerant: R410A
• ENERGY STAR: Yes
