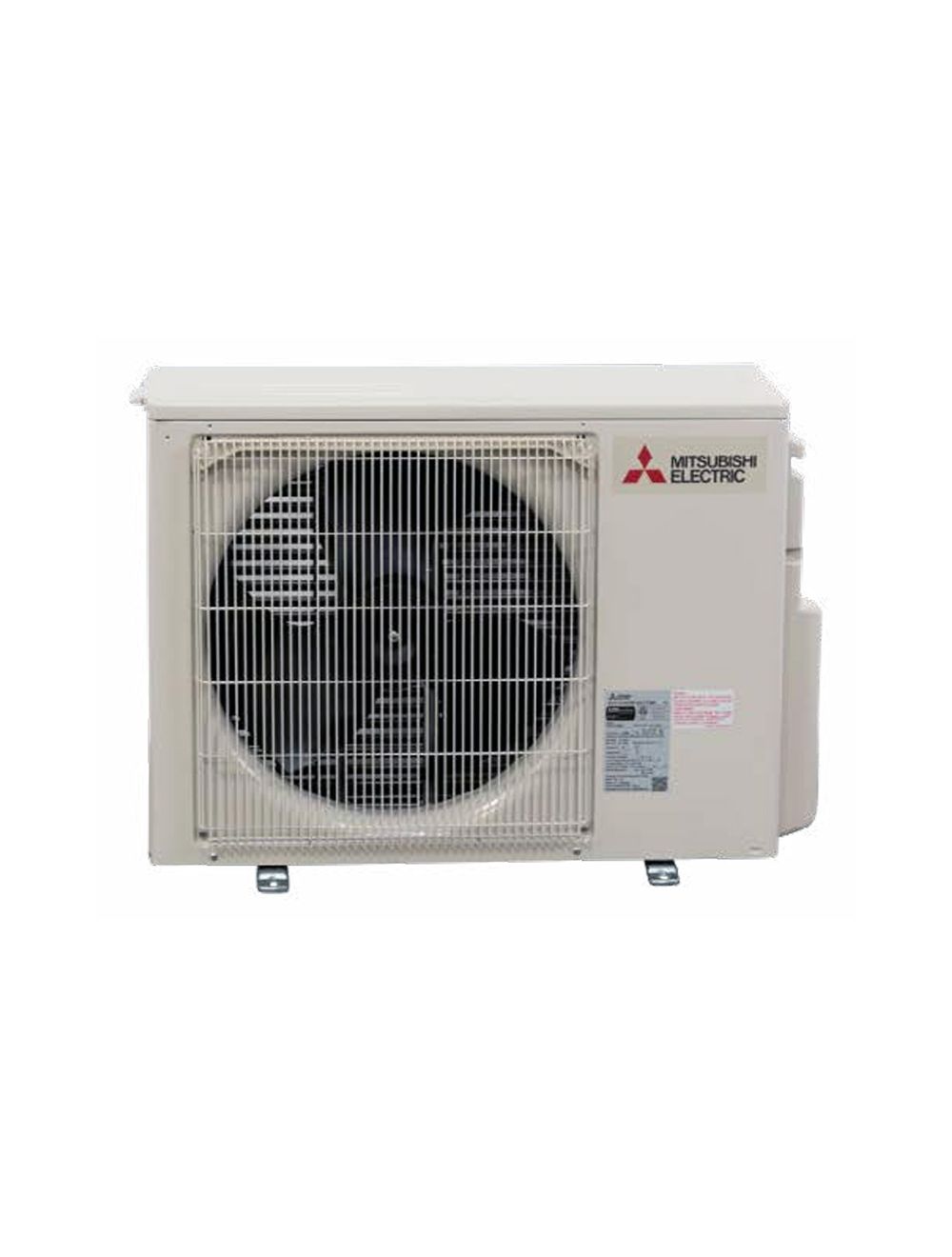

Mitsubishi Electric PUY-AK12NL R454B: 12,000 BTU P-Series Straight Cool Condenser

Product Description

The Mitsubishi Electric PUY-AK12NL is a 12,000 BTU P-Series straight cool condenser utilizing R454B refrigerant. Equipped with inverter technology and an electronic linear expansion valve, this outdoor condenser improves temperature accuracy and system efficiency. It is designed for single-zone mini split applications, providing efficient ductless cooling.

• Equipped with inverter technology and an electronic linear expansion valve for improved temperature accuracy and system efficiency.
• Blue Fin Condenser: Coated with an anti-rust coating to extend its lifespan.
• Continuous operation: 24-hour continuous operation (cooling mode)

Product Highlights

This Mitsubishi Electric condenser delivers efficient cooling with features like Blue Fin coating and inverter technology, ensuring durability and precise temperature control.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PUY-AK12NL

Technical Specifications

• Type: Outdoor Condenser
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Installation Location: Outdoor
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Maximum Sound Level: 44 dB
• Minimum Outdoor Temperature for Cooling: 23 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 16 Amps
• Recommended Breaker Size: 27 Amps
• Maximum Line Length: 165 Feet
• Gas Connection Size: 1/2 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 24.81 Inches
• Product Width: 34.29 Inches
• Product Depth: 11.81 Inches
• Shipping Weight: 112 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• Unit Type: Outdoor Unit
• Number of Zones: 1
• System Capacity: 12,000 BTU
• Line Set Size: 1/4" x 1/2"
• Outdoor Unit: PUY-AK12NL-U1
• Model Number: PUY-AK12NL
• Series: P-Series
• Model: PUY-NL
• Sound level: As low as 44 dB(A)
• SEER2: Up to 24.8
• Refrigerant: R454B
• Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous operation: 24-hour continuous operation (cooling mode)
• Fast restart: Fast restart
• High pressure protection: High pressure protection
• INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
• Low ambient cooling: Low ambient cooling down to -40 deg F providing 100% capacity (with wind baffles)
• Pre-charged refrigerant: 12k -30k BTU/h come pre-charged for ease of installation. 24k - 30k BTU/h are pre-charged to maximum line length of 225 feet. 12k - 18k BTU/h are pre-charged for up to 165 feet of line length. For units with a capacity of 36,000 BTU/h and above, additional refrigerant charges will be required.
• Seacoast protection: Seacoast Protection, made standard in the 2022 production, features a robust anti-corrosion system with phosphate and acrylicenamel coated external panels, epoxy resin-coated fan motor support and separator assembly valve beds, and Blue Fin treatment for the heat exchanger coil. These components are rated for 2,000 hours of durability under ASTM B117 testing standards, ensuring longevity in corrosive coastal environments.
