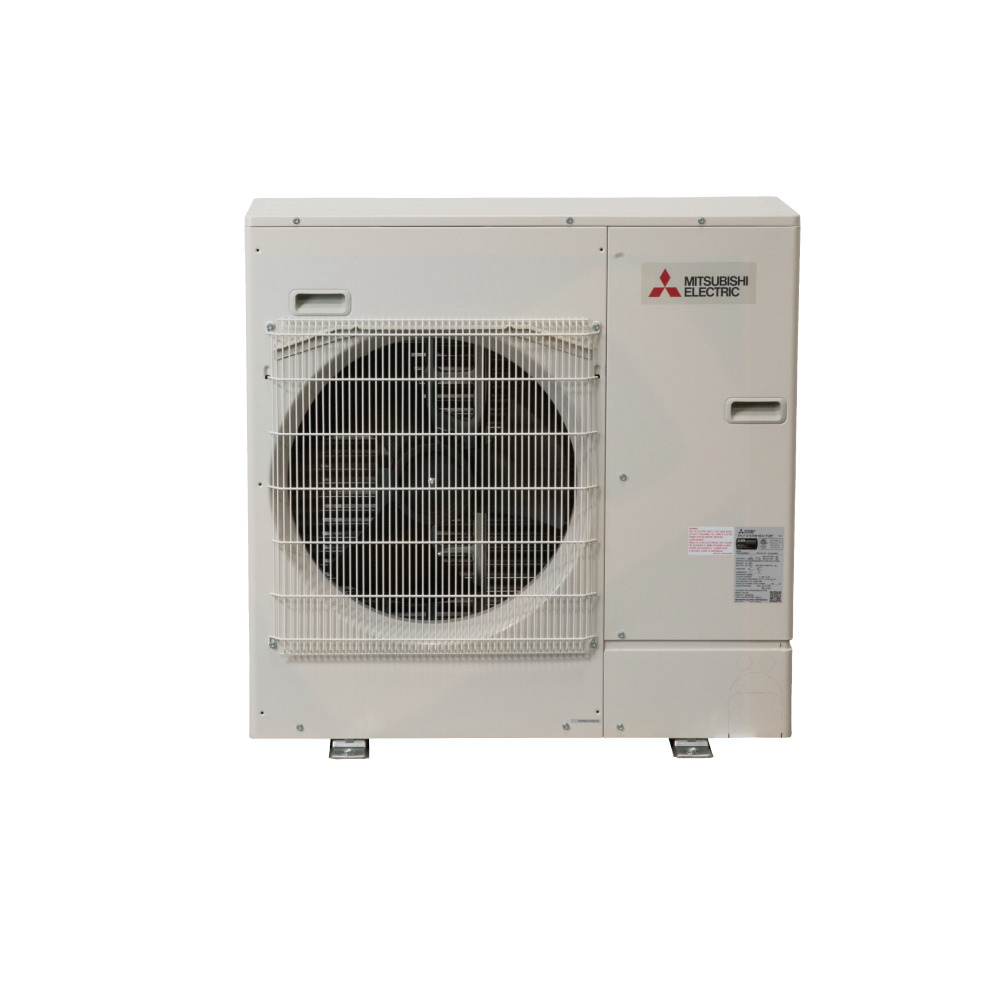

Mitsubishi Electric PUY-AH30NL P-Series Cooling Only Outdoor Condenser 30k BTU R-454B

Product Description

The Mitsubishi Electric PUY-AH30NL is an outdoor condenser designed for single-zone mini split systems. It provides efficient ductless cooling with advanced inverter technology. The anti-rust coating ensures durability, making it suitable for large residential or light-commercial spaces.

• Inverter technology enhances system efficiency and temperature control.
• Features Blue Fin Condenser technology for added protection against corrosion.
• Designed for continuous operation in cooling mode.

Product Highlights

This unit is tailored for effective cooling in various settings, ensuring comfort even in high-temperature environments.

Product Information

Standard Information

• Type: Outdoor Condenser
• Product Line: P-Series PUY

Technical Specifications

• Operating Mode: Cooling Only
• Maximum Number of Zones: 1
• Refrigerant Type: R-454B
• Cooling BTU: 30000
• Maximum Sound Level: 49 dB
• Minimum Outdoor Temperature for Cooling: 23 F
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 22 Amps
• Recommended Breaker Size: 37 Amps
• Maximum Line Length: 225 Feet
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 37.125 Inches
• Product Width: 37.3958 Inches
• Product Depth: 14 Inches
• Product Weight: 155 Pounds
• Shipping Weight: 179 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
