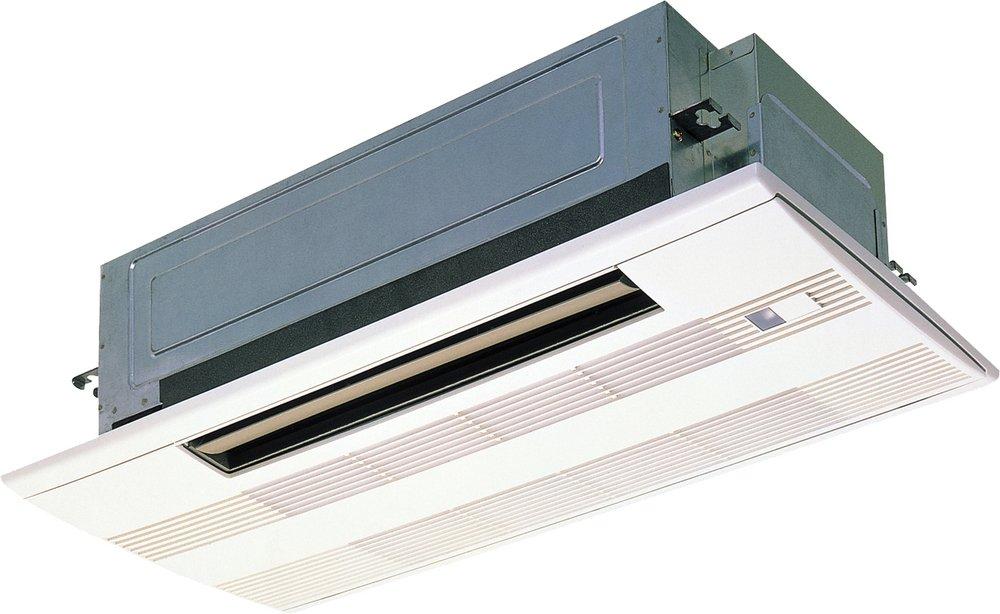

Mitsubishi Electric PMFY-P12NBMU-ER5 1-Way Ceiling Recessed Ductless

Product Description

The MITSUBISHI ELECTRIC PMFY-P12NBMU-ER5 is a ceiling recessed unit with a 1-way air outlet. It operates on 208 to 230 Volt AC and 60 Hertz, with a cooling/heating current rating of 0.21 Amp and a power rating of 0.04 Kilowatt. The unit has a cooling capacity of 12000 BTU/Hour and a heating capacity of 13500 BTU/Hour.

• Dual set point functionality
• Lightweight and compact design
• Four-speed fan settings

Product Highlights

This unit features a DC brushless motor, cross fin coil type, and a polypropylene honeycomb air filter material. ETL (Canada and US) approval.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PMFY-P12NBMU-ER5

Technical Specifications

• Approval: ETL (Canada and US)
• CATALOG NUMBER: PMFY-P12NBMU-ER5
• Category: HVAC/R & Fans
• Cooling Capacity: 12000 BTU/Hour
• Current Rating: 0.21 Amp (Cooling/Heating)
• Enclosure Finish: Grille
• Features/Benefits: Dual set point functionality; Lightweight and compact design; Four-speed fan settings; Built-in condensate lift mechanism; Ventilation air intake supported
• Frequency Rating: 60 Hertz
• Manufacturer Name: Mitsubishi Electric
• Manufacturer Part Number: PMFY-P12NBMU-ER5
• Number Of Phases: 1
• Power Rating: 0.04 Kilowatt (Cooling/Heating)
• Series/Model: PMFY
• Type: 1-Way
• UNSPSC Code: 40101701
• Voltage Rating: 208 to 230 Volt AC
• Heating Capacity: 13500 BTU/Hour
• Airflow Rating: 307 CFM
• Motor Type: DC Brushless Motor
• Coil Type: Cross Fin
• Air Filter Material: Polypropylene Honeycomb
• BTU Cooling Rating: 12000 Btu/h
• BTU Heat Rating: 13500 Btu/h
• Decibel Rating (dB): 37 dB
• Indoor Outdoor: Indoor
• Installation Type: Ceiling Cassette
• Liquid Line (OD): 1/4 in
• MBH: 12
• Max CFM: 328 cfm
• Max Fuse Size: 15
• Phase: Single Phase
• Refrigerant: R-410A
• Suction Line (OD): 1/2 in
• Tonnage: 1 Ton
• Volts: 208/230V
• Watts: 40 W
• Zones: 1
• A2L Compatible: No
• Application: Residential
• Auto Switching Heat: No
