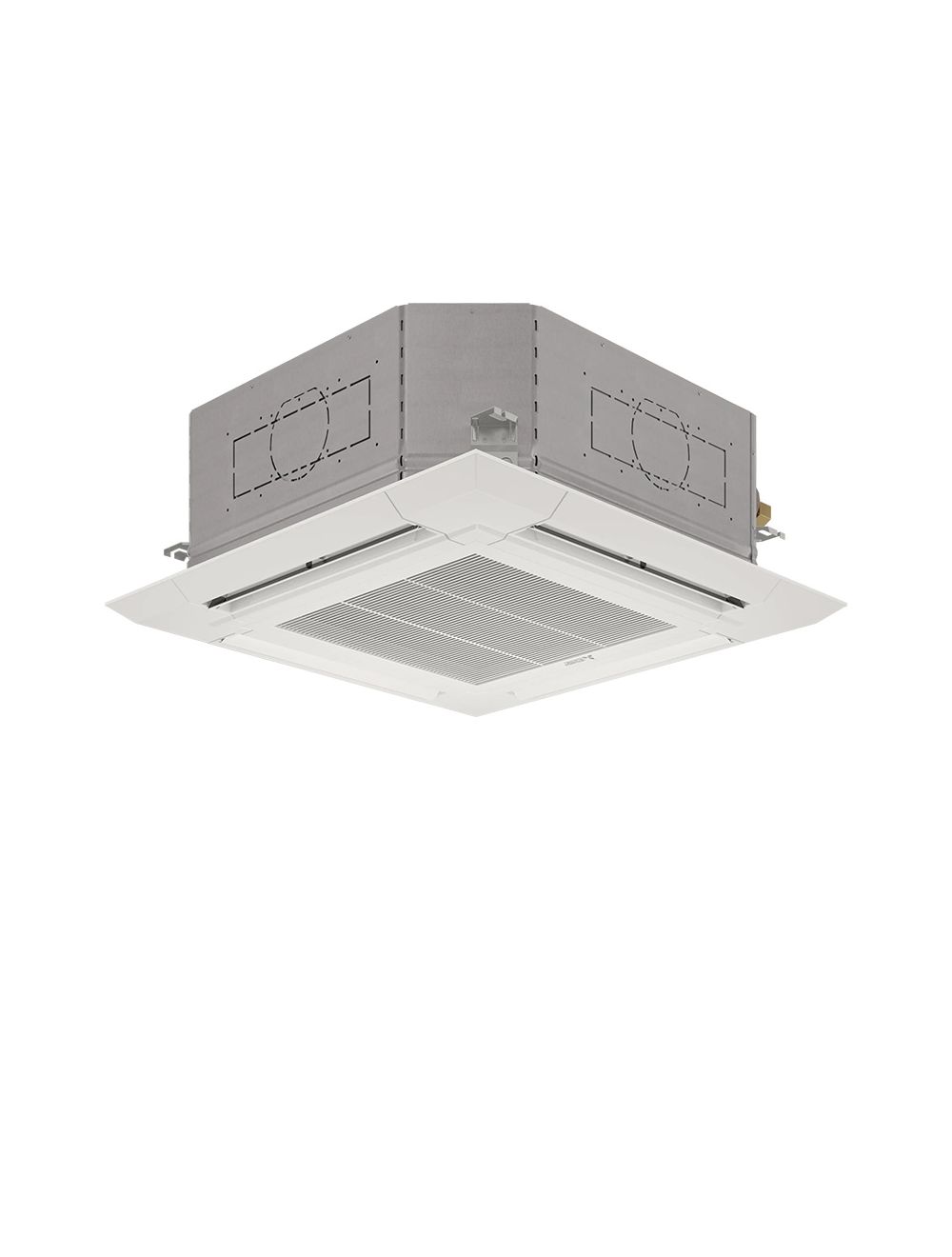

Mitsubishi Electric PLA-AE36NL R454B: 36,000 BTU 4-Way Cassette Air Handler

MITSUBISHI ELECTRIC
Brand: MITSUBISHI ELECTRIC
SKU: PLA-AE36NL
Availability: In Stock

Ships via freight in 1-3 business days
$4,130.06
$4,130.06
LTL Delivery

This product weighs 53 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mitsubishi Electric PLA-AE36NL is a 36,000 BTU 4-way cassette air handler using R454B refrigerant. Designed for unobtrusive zoned comfort, this ceiling cassette indoor unit modulates temperature effectively. Ideal for large homes or businesses, it ensures consistent performance with its industrial-grade construction.

  • Features a 3D i-see Sensor that scans the room for hot and cold spots.
  • Offers precision temperature control technology for improved accuracy and efficiency.

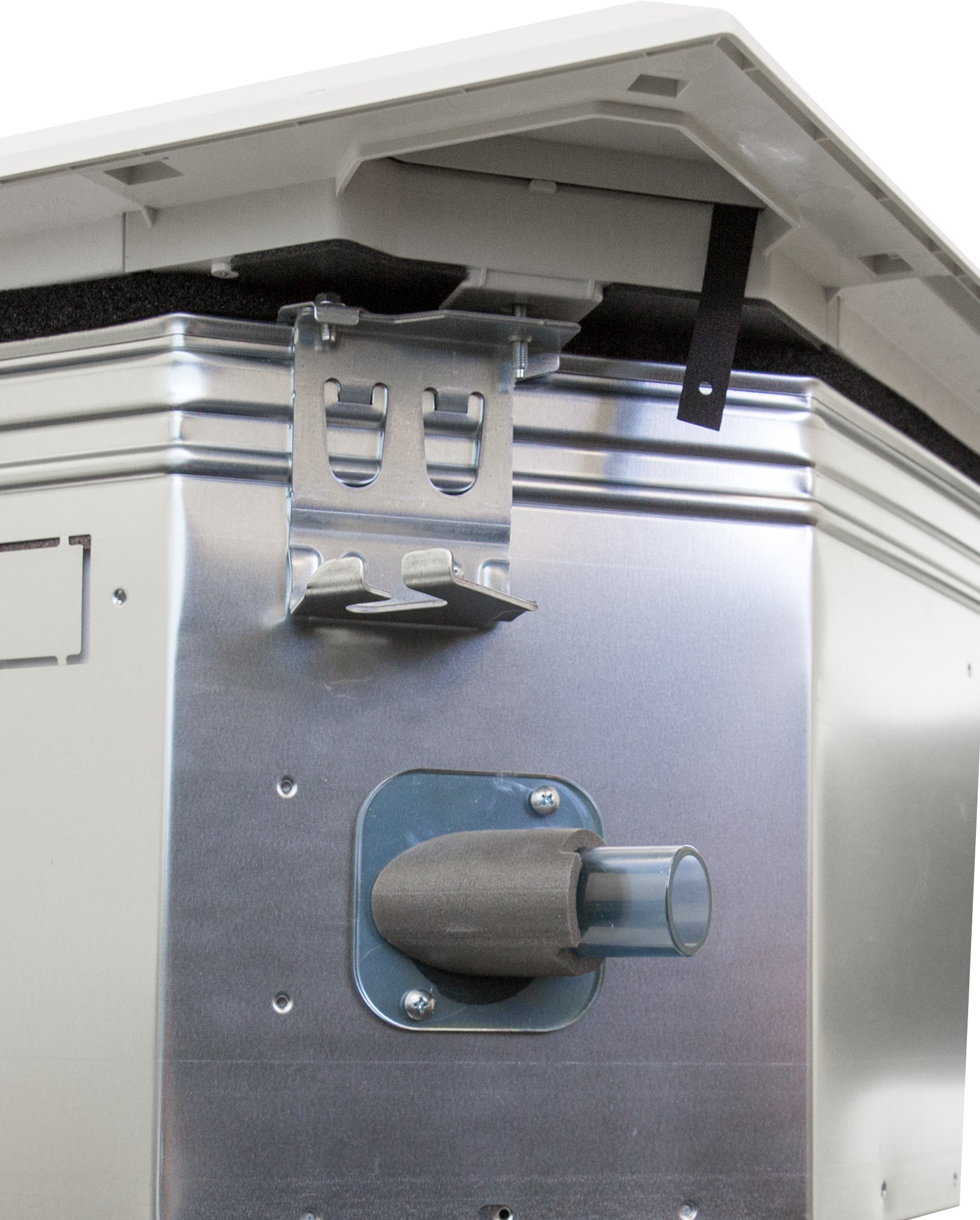

  • Includes a built-in condensate removal system to simplify installation and prevent overflow.

Product Highlights

This ceiling cassette air handler provides efficient cooling and heating with advanced features for optimal comfort and energy savings.

Product Information

Standard Information

  • Brand: MITSUBISHI ELECTRIC
  • Manufacturer Part Number: PLA-AE36NL
Technical Specifications
Condition
New
Type
Ceiling Cassette
Product Line
P-Series
Cooling BTU
36000
Cooling Capacity
36000 BTU
Maximum Sound Level
44 dB
Minimum Outdoor Temperature for Cooling
23 F
SEER2
23.3
EER2
13.7
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
34 Amps
Recommended Breaker Size
56 Amps

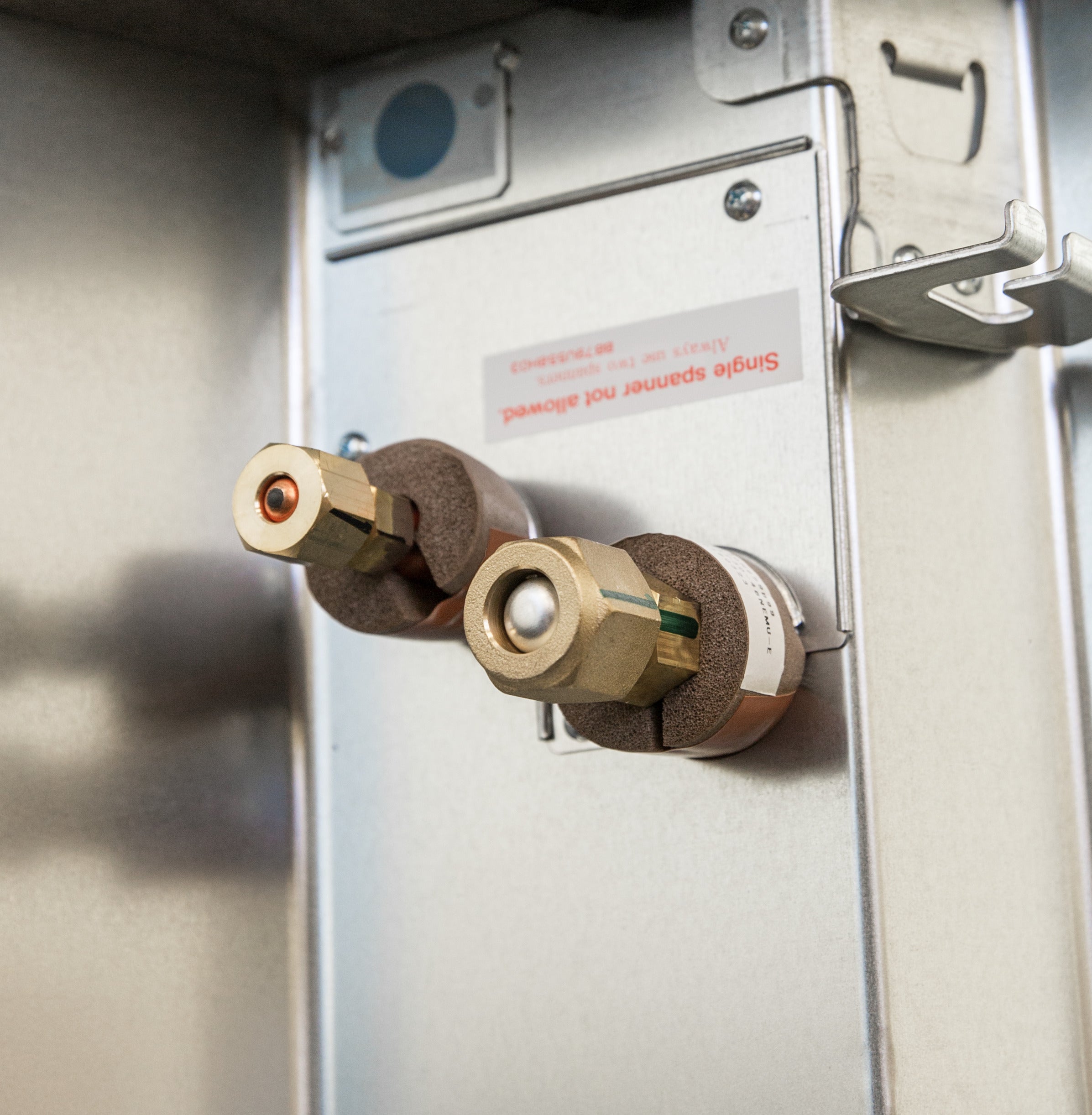

Suction Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
215712257
Operating Mode
Cooling Only
Number of Zones
1
Refrigerant Type
R-454B
DOE Regional Compliance
Nationwide
Line Set Size
3/8" x 5/8"
Maximum Number of Zones
1
Multi-Zone Compatible
No
Maximum Line Length
225 Feet
Gas Connection Size
5/8 Inch
Parts Warranty
5 Years
Compressor Warranty
7 Years
Heating and Cooling
Heating and Cooling
Heating Capacity
40000 BTU
Moisture Removal
8 Pints/Hour
Maximum Air Flow
1200 CFM
Minimum Air Flow
670 CFM
Minimum Sound Level
32 dB
Product Height (Indoor Unit)
11 3/4 Inches
Product Width (Indoor Unit)
33 1/16 Inches
Product Depth (Indoor Unit)
33 1/16 Inches
Unit Type
Indoor Unit
Product Line (P-Series PLA)
P-Series PLA
Low Ambient Heat
Yes
System Capacity
36,000 BTU
WiFi Enabled
Yes with Comfort App
WiFi Built In
No
Cooling Capacity (up to)
up to 36,000 BTU
Heating Capacity (up to)
up to 38,000 BTU
Room Cooling/Heating Capacity
up to 1,500 sq ft
Airflow Cooling CFM, Dry
670-850-1,020-1,200
Airflow Heating CFM, Dry
670-850-1,020-1,200
Noise Level dB(A), Cooling
32-37-41-44
Noise Level dB(A), Heating
32-37-41-44
Size W x D x H
33-1/16" x 33-1/16" x 11-3/4"
Dimensions
33-1/16" W x 33-1/16" D x 11-3/4" H
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
-4 F
HSPF2
9.8
