Mitsubishi Electric PLA-AE30NL R454B: 30,000 BTU 4-Way Cassette Air Handler

Product Description

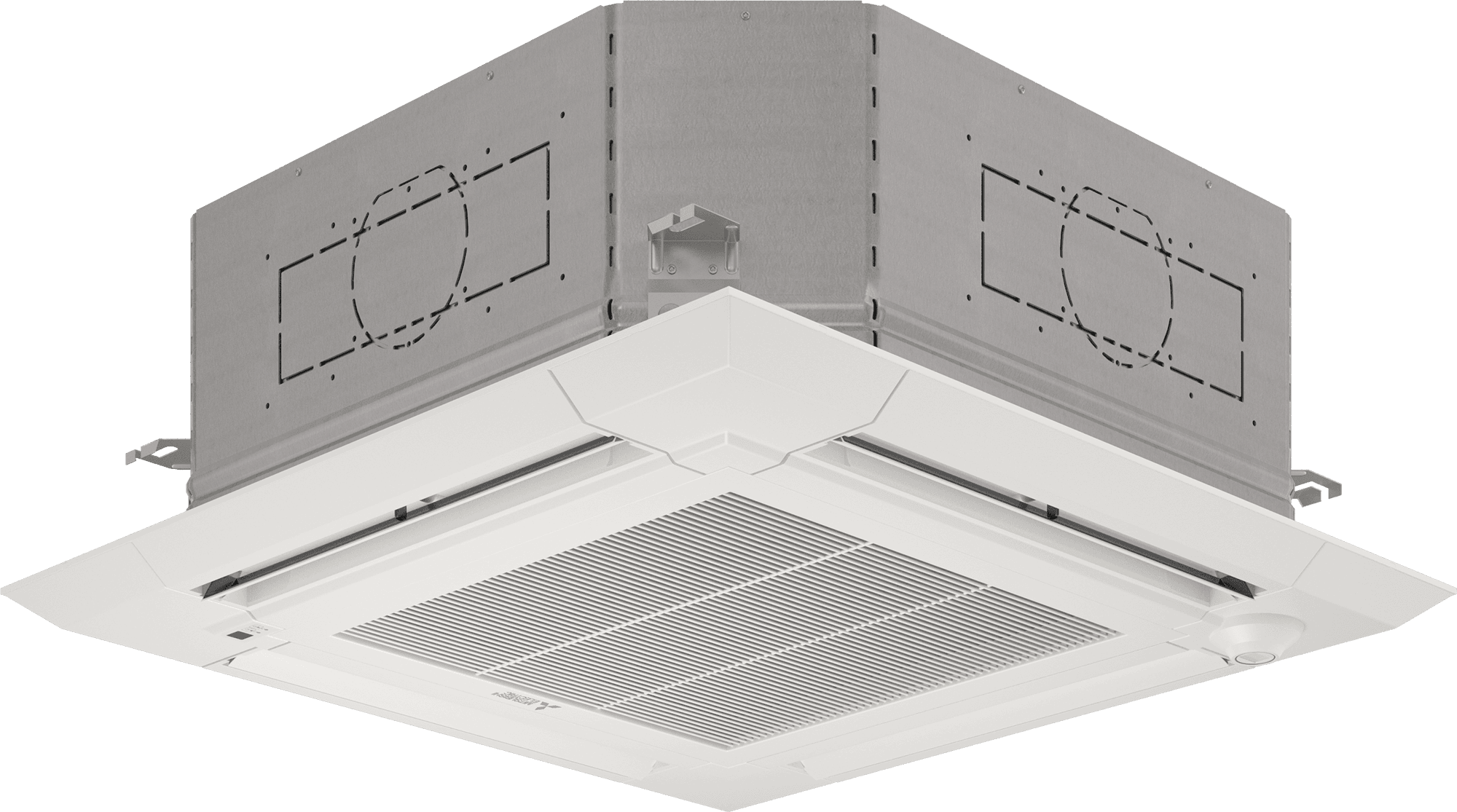

The Mitsubishi Electric PLA-AE30NL is an R454B 30,000 BTU 4-way cassette air handler designed for unobtrusive ceiling installation in single or multi-zone mini split systems. Features Mitsubishi's 3D i-see Sensor that thermally scans for warm and cold spots, directing conditioned air effectively. It offers multiple operating modes, fan speeds, and airflow directions.

• Features 3D i-see Sensor
• Offers dehumidification

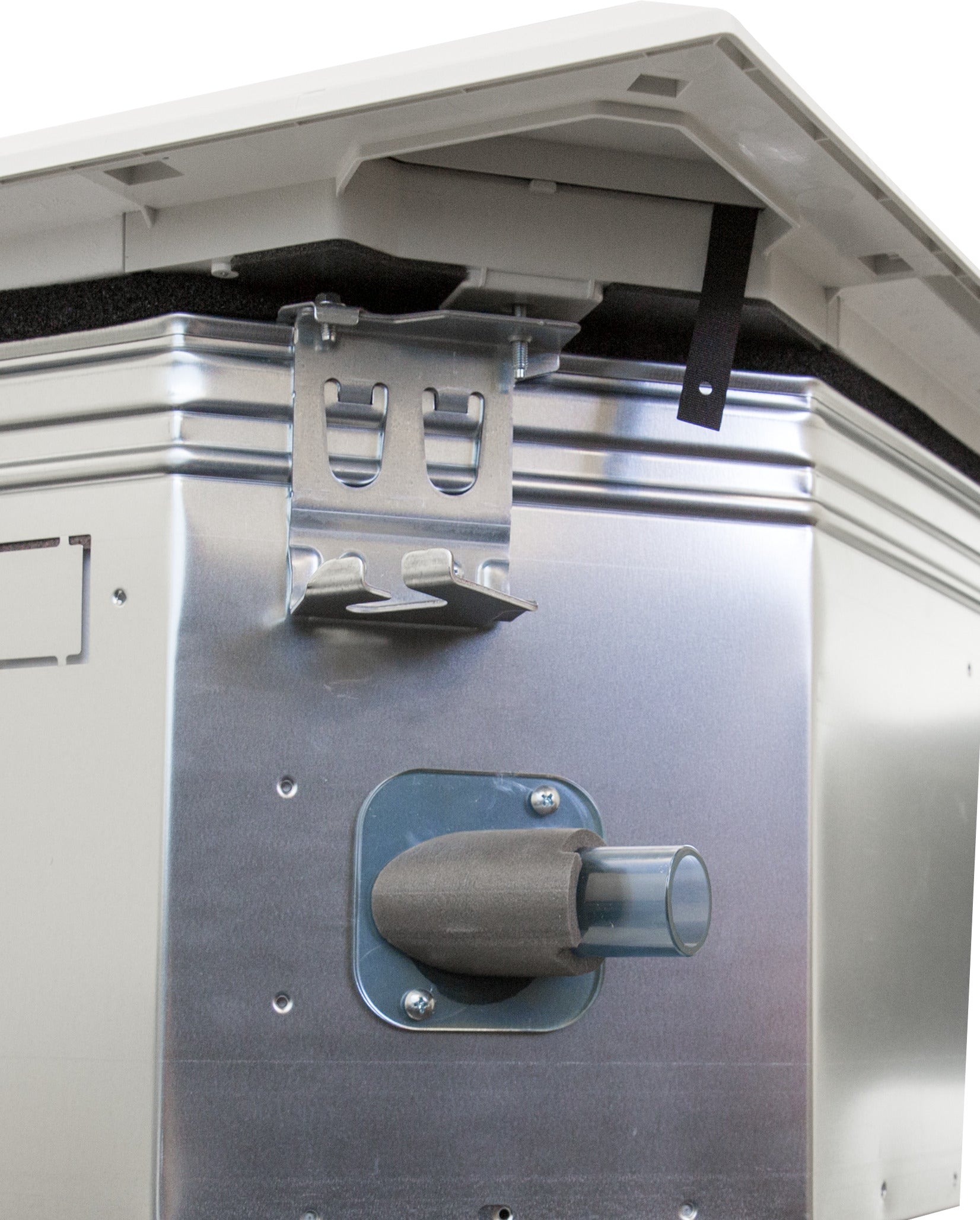

• Includes a condensate removal system

Product Highlights

This ceiling cassette unit provides efficient comfort with quiet operation and multiple vane control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PLA-AE30NL

Technical Specifications

• Type: Indoor Unit
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 30
• Installation Location: Indoor
• Grille: Included
• Required Grille Model: PLP-41EAEU
• Cooling BTU: 30000
• Cooling Capacity: up to 30,000 BTU
• Heating Capacity: up to 32,000 BTU
• Moisture Removal: 9 Pints/Hour
• Maximum Air Flow: 880 CFM
• Minimum Air Flow: 570 CFM
• Minimum Sound Level: 28 dB
• Maximum Sound Level: 38 dB
• Voltage: 208/230 V
• Phase: 1 ph
• Frequency: 60 Hz

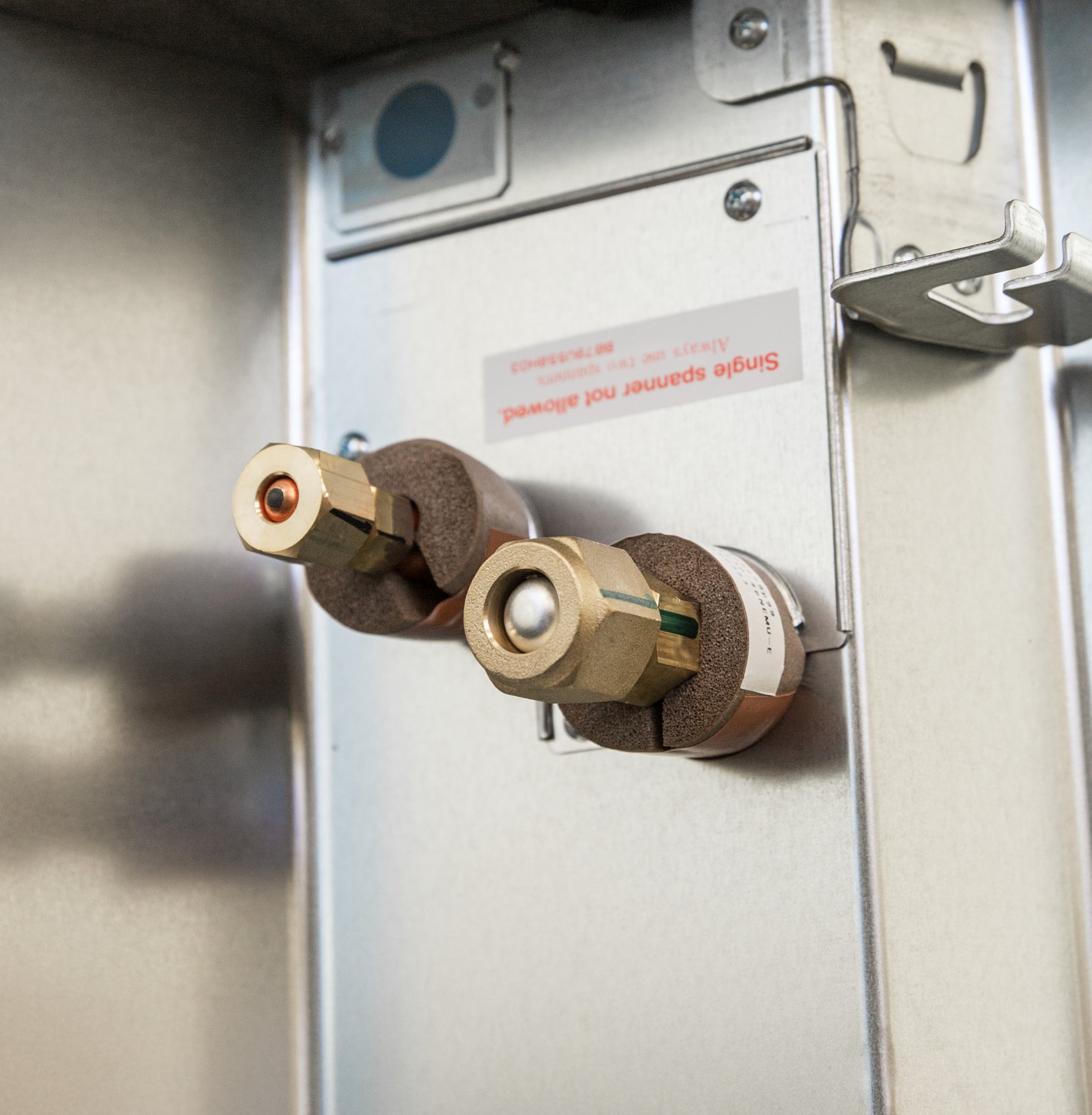

• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 11 3/4 Inches
• Product Width: 33 1/16 Inches
• Product Depth: 33 1/16 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Number of Zones: Multi
• System Capacity: 30,000 BTU
• Line Set Size: 3/8" x 5/8"
• WiFi Enabled: Yes with Comfort App
• WiFi Built In: No
• Indoor Unit: PLA-AE30NL-U1
• Room Cooling/Heating Capacity: up to 1,250 sq ft
• Airflow Cooling CFM, Dry: 570-670-780-880
• Airflow Heating CFM, Dry: 570-670-780-880
• Noise Level dB(A), Cooling: 28-32-35-38
• Noise Level dB(A), Heating: 28-32-35-38
• EER Rating: 11.9 EER Rating
• SEER: 21.9 SEER
• Connection: Flared Connection
• Refrigerant: R-454B Refrigerant
• Fuse Rating: 25 A Fuse Rating
• Drive: Inverter Drive
• Sound Level: 28 dBA, 32 dBA, 35 dBA, 38 dBA
• Mounting: Ceiling Mounting
• Temperature: 66 to 90 deg F
• Wattage: 2660 W
