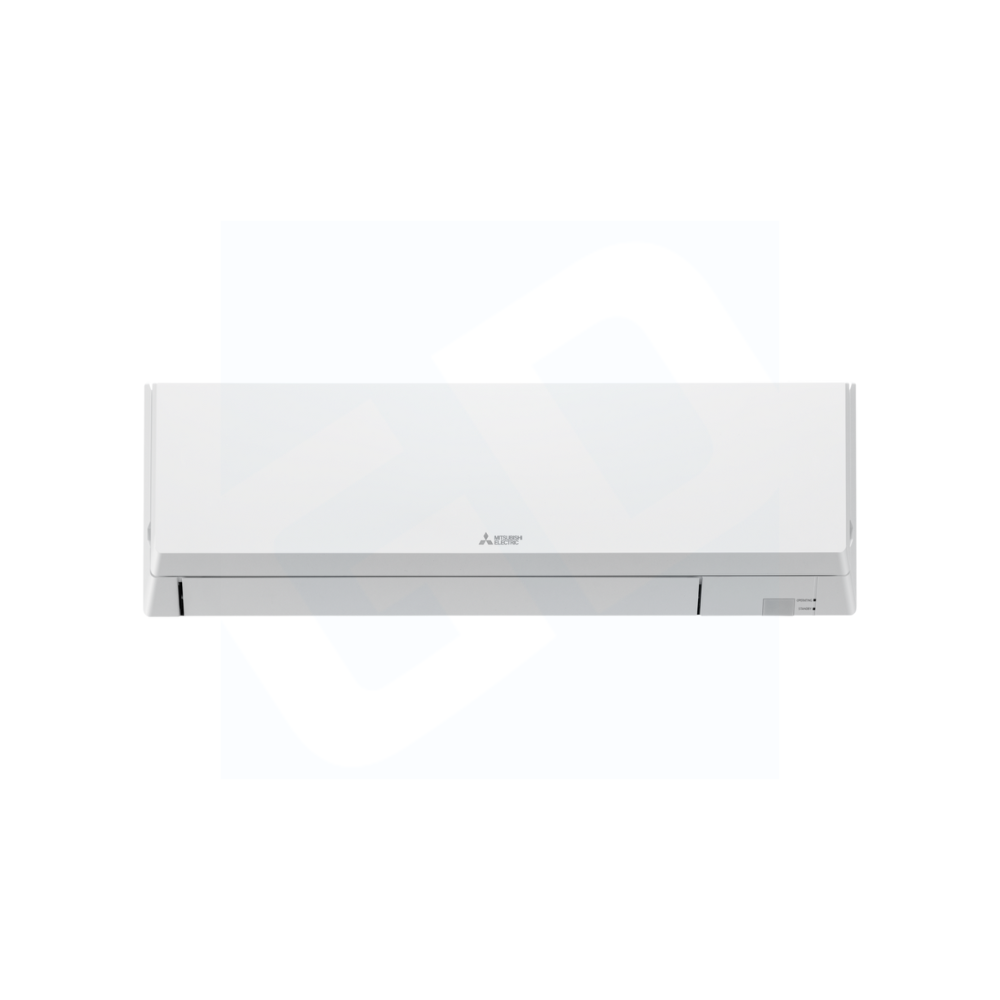

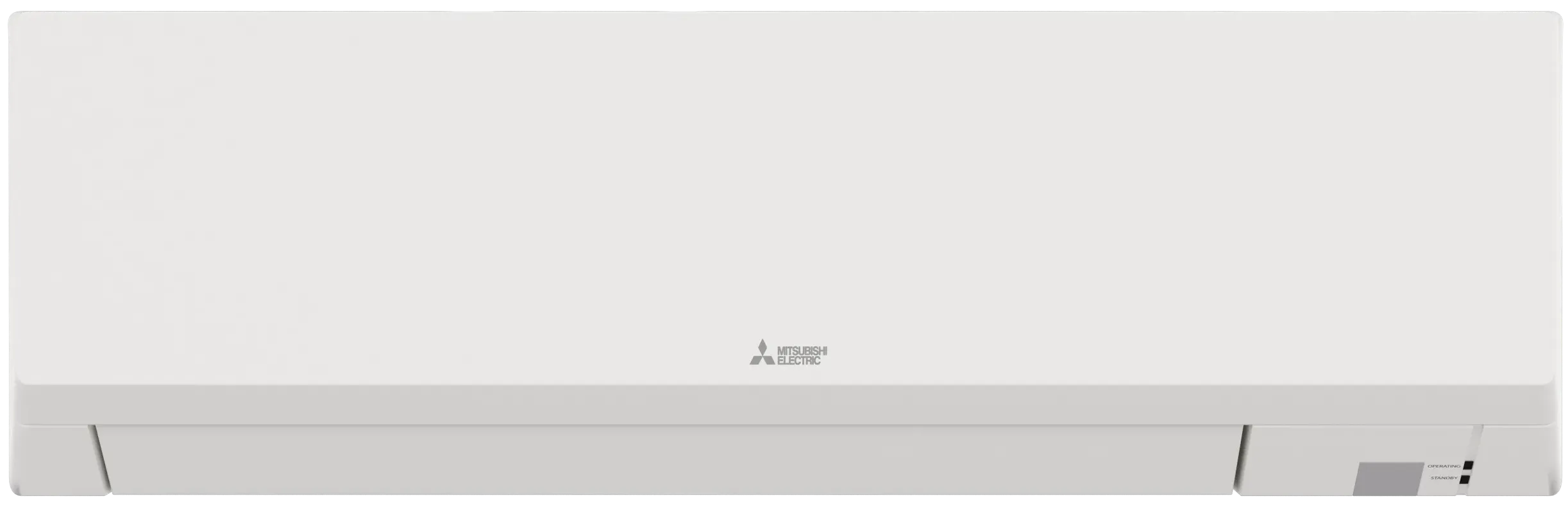

Mitsubishi Electric PKA-AL18NL Wall Mounted Indoor Unit 18000 BTU

Product Description

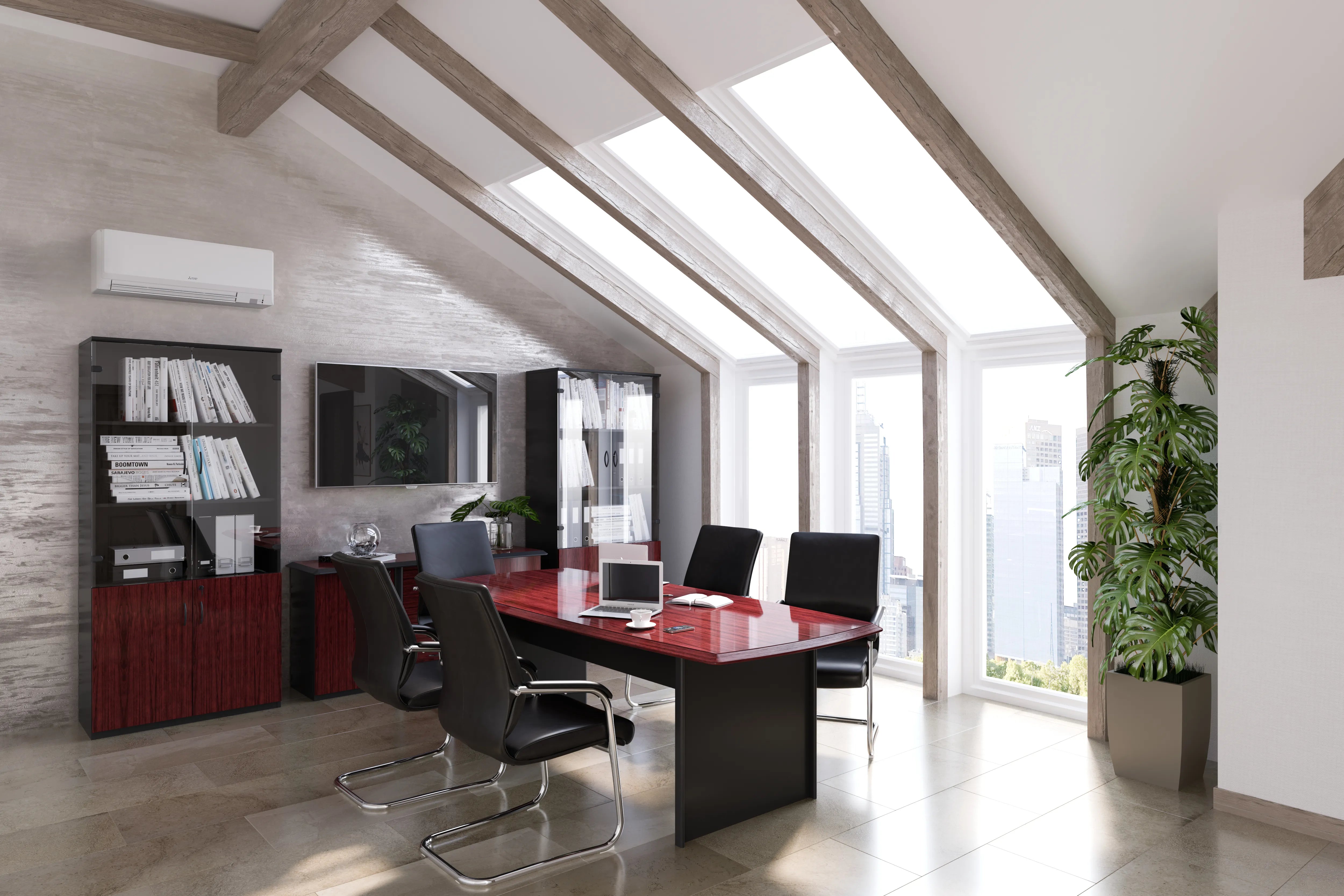

The Mitsubishi Electric PKA-AL18NL is a wall-mounted indoor unit ideal for single-zone ductless mini-split systems. This unit, part of the P-Series, is appropriate for light commercial settings like small offices, daycare centers, and classrooms. It uses R454B refrigerant and has several options for controlling airflow direction. The PKA-AL18NL provides heating and cooling functionality efficiently.

• Single-zone wall-mounted indoor unit.
• Compatible with R454B refrigerant.
• Provides both heating and cooling options.

Product Highlights

The PKA-AL18NL is designed to work efficiently in various indoor environments, providing comfort through reliable heating and cooling.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PKA-AL18NL

Technical Specifications

• Product Line: P-Series
• Unit Type: Single Zone Unit
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Unit Capacity: 18,000 BTU
• Cooling Capacity: 18,000 BTU
• Heating Capacity: 22,000 BTU
• Maximum Air Flow: 450 CFM
• Minimum Air Flow: 215 CFM
• Noise Level (Cooling): 34-48 dB(A)
• Noise Level (Heating): 34-48 dB(A)
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 1/2 Inch
• Product Dimensions: 35.35 inches Width x 9.17 inches Depth x 11.37 inches Height
• Weight: 28 lb
• Moisture Removal: 6.6 Pints/Hour
• SEER2: 19.5
• HSPF2 [IV]: 8.9
