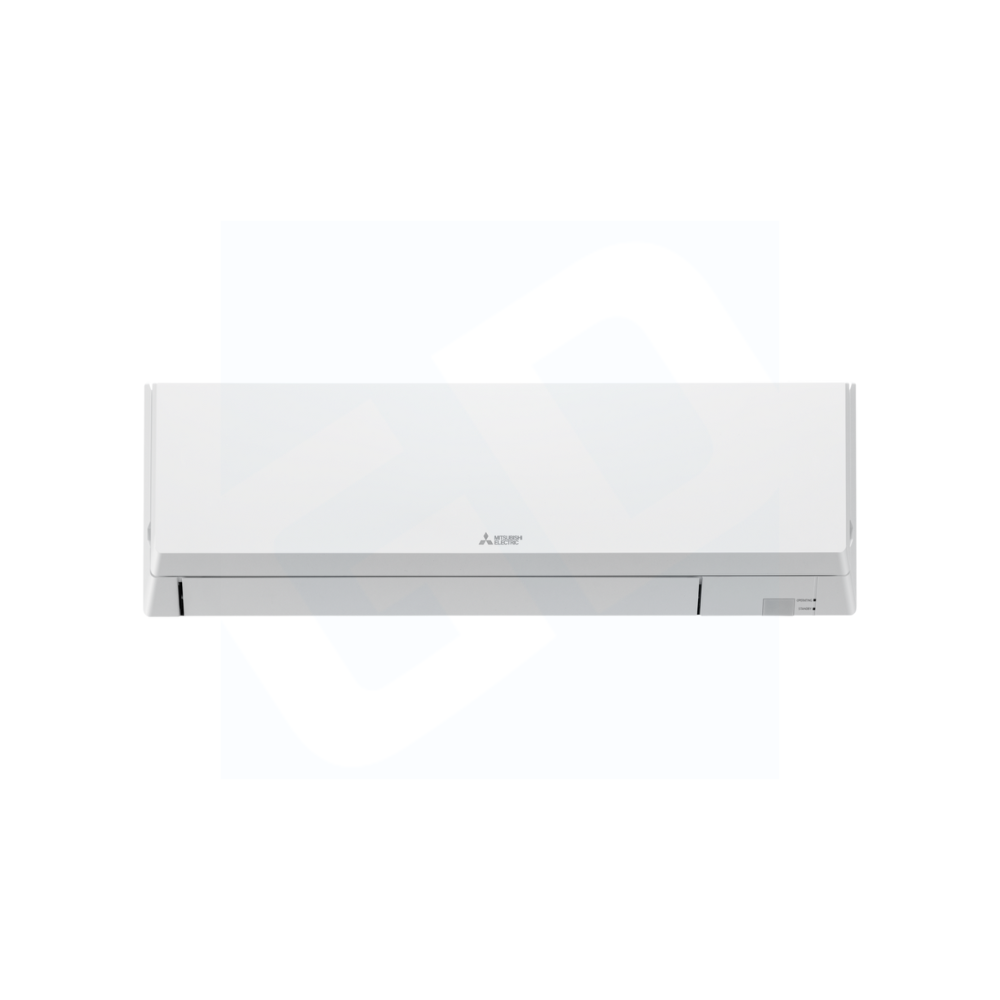

Mitsubishi Electric PKA-AK24NL Wall Mounted Indoor Unit

Product Description

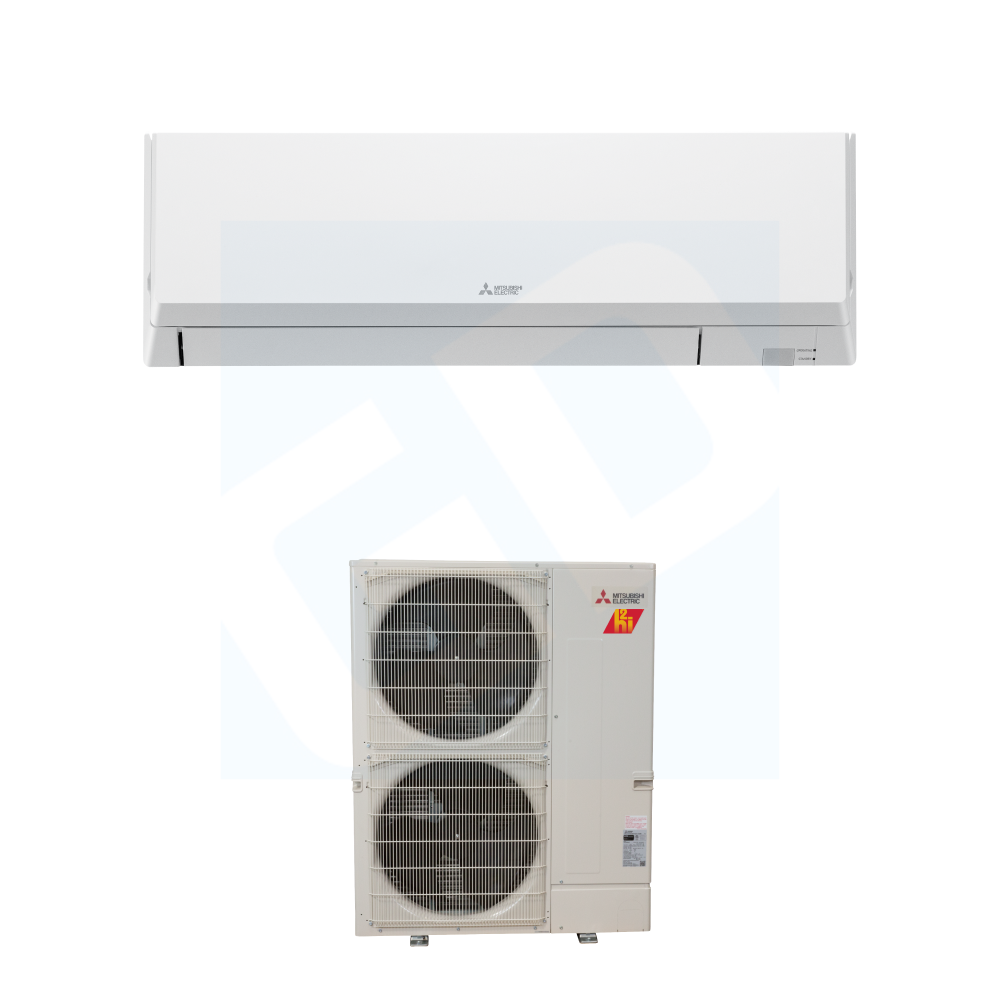

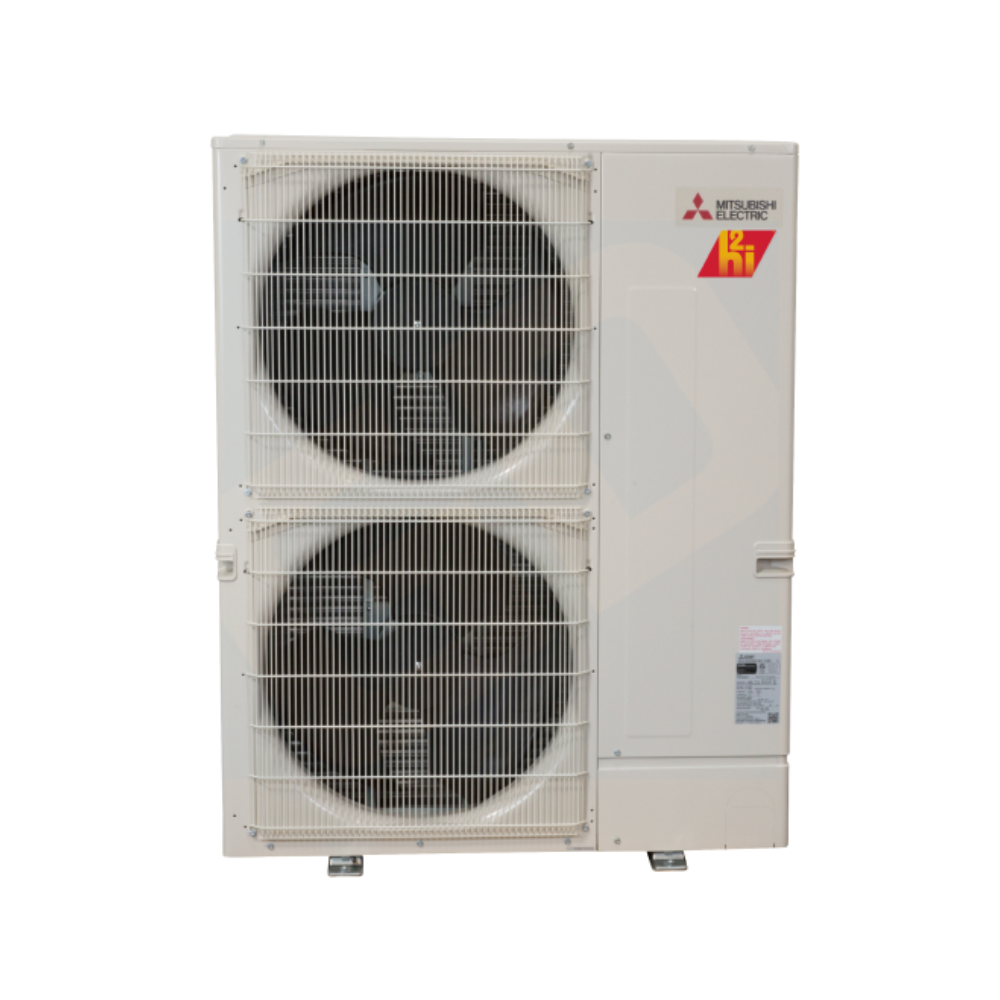

The Mitsubishi Electric PKA-AK24NL is a wall-mounted indoor unit designed specifically for single-zone applications. This unit is part of the Mitsubishi P-Series, suitable for light commercial settings. It works seamlessly with an outdoor unit to offer both cooling and heating capabilities. The PKA-AK24NL is equipped with an inverter-driven compressor that provides efficient performance. Users can control airflow direction using vane settings, and the auto fan speed mode adjusts automatically for optimal comfort.

• Suitable for cooling and heating applications.
• Features auto fan speed mode for convenience.
• Vane settings allow for airflow direction control.

Product Highlights

This unit ensures effective climate control and energy efficiency in commercial and residential spaces.

Product Information

Standard Information

• Product Line: Mitsubishi P-Series
• Operating Mode: Cooling & Heating

Technical Specifications

• Number of Zones: 1
• Unit Capacity: 24,000 BTU
• SEER2: 21.8
• EER Rating: 12
• HSPF2 [IV]: 9.4
• Sound Level: 45 dBA
• Mounting Type: Wall
• Power Rating: 2050 W
• Voltage Rating: 208/230 V
• Frequency Rating: 60 Hz
• Phase: 1 ph
• CFM Rating: 635 cfm, 705 cfm, 775 cfm
• Temperature Rating: 66 to 90 deg F
• Overall Width: 46-1/16 in
• Overall Length: 11-5/8 in
• Overall Height: 14-3/8 in
• Weight: 46 lb
• Fuse Rating: 25 A
• Drive Type: Inverter
• Connection Type: Flared
• Color: White
