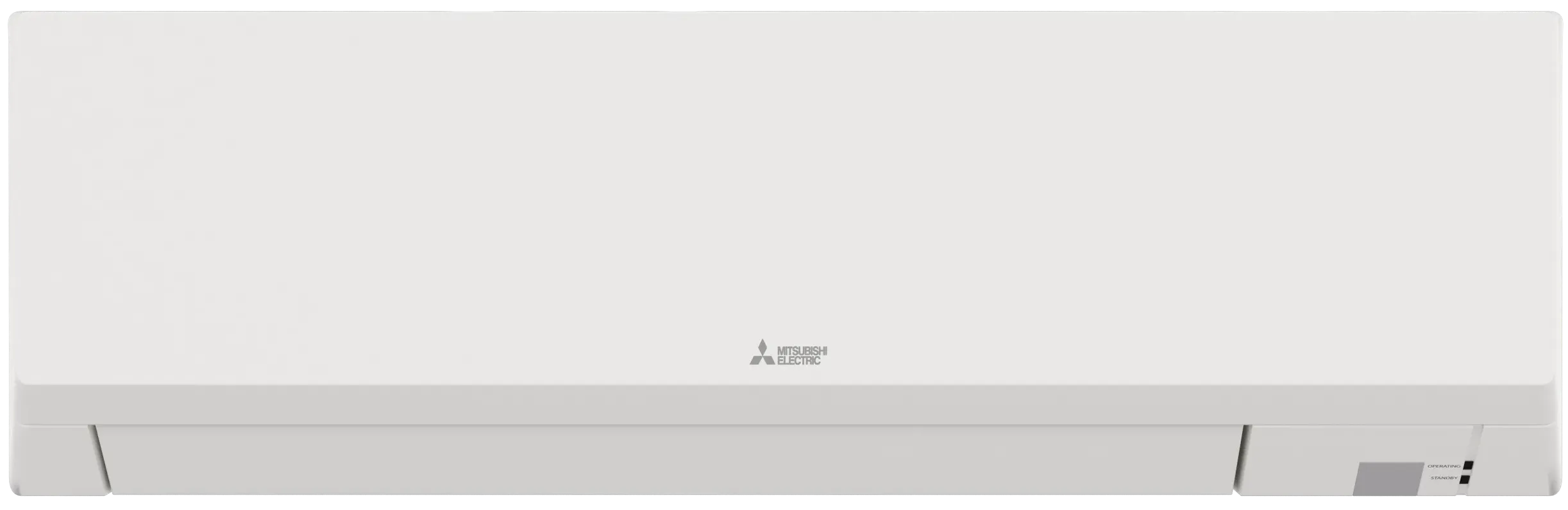

Mitsubishi Electric PKA-A30KA8 PKA Professional Grade Wall-mounted Indoor Unit

Product Description

The MITSUBISHI ELECTRIC PKA-A30KA8 ductless Wall-mounted Indoor Unit features a sleek, compact design ideal for light commercial solutions, such as daycare centers, classrooms, churches, and small offices. Available as a single-zone or multi-zone unit, it offers long line lengths for a greater distance between indoor and outdoor units.

• Swing Mode
• Sleek, compact design
• Vane setting for air flow direction control

Product Highlights

This unit has a Dual Barrier Coating applied to coil, fan, and air duct/vanes to keep the unit clean and maintain efficiency. It also features an optional 3D i-see Sensor that scans the room for occupancy, adjusts temperature and airflow, and saves energy when a room is empty.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PKA-A30KA8

Technical Specifications

• Series: P-Series
• Type: Wall-mounted
• Model: PKA
• Capacity range: 12 to 36 BTU/H
• Sound level: As low as 43 dB(A)
• Refrigerant: R410A
• ENERGY STAR: Yes
• SEER2: Up to 21.3
• HSPF2: Up to 10.2
• Amperage Rating: 1 A
• BTU Rating: 9000 to 30000 Btu/hr
• CFM Rating: 635/705/775 cfm Cooling, 635/705/775 cfm Heating
• Connection Type: Flared
• Drive Type: Inverter
• EER Rating: 9.5
• Frequency Rating: 60 Hz
• Mounting Type: Wall
• Overall Height: 14-3/8 in
• Overall Length: 46-1/16 in
• Overall Width: 11-5/8 in
• Phase: 1 ph
• Power Rating: 3150 W
• SEER Rating: 20
• Sound Level: 47 dBA
• Temperature Rating: 66 to 90 deg F
• Voltage Rating: 208/230 V
