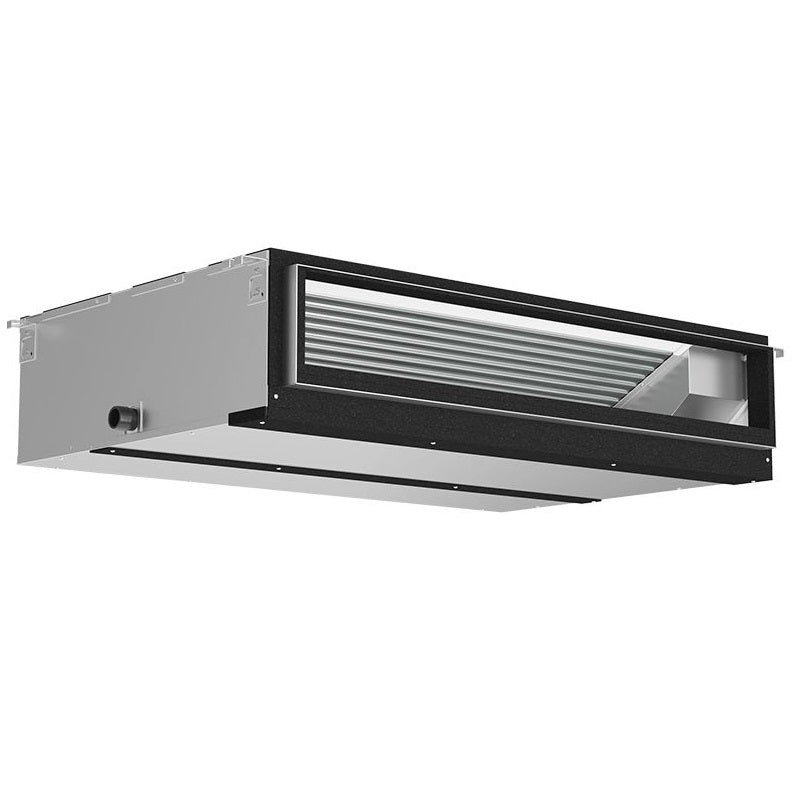

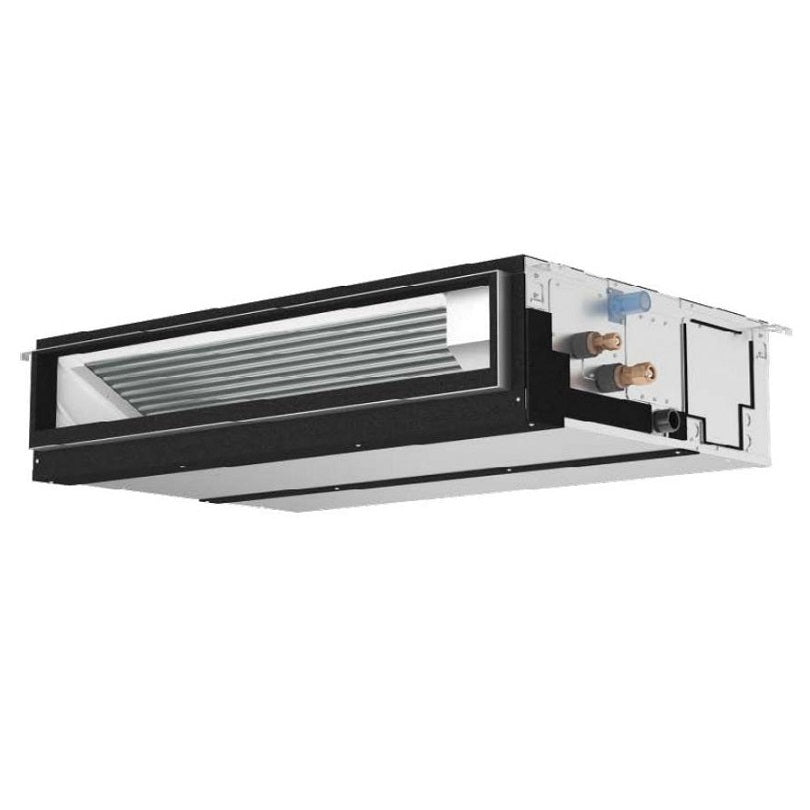

Mitsubishi Electric PEAD-AA42NL Concealed Duct Indoor Unit

Product Description

The Mitsubishi Electric PEAD-AA42NL is a concealed duct heat pump mini split indoor unit designed for single-zone systems. This product is made to be hidden within short duct runs. It supports both heating and cooling functions while using R-454B refrigerant. The unit offers multiple modes and fan speed options to meet different room needs. It includes an internal drainage system for moisture removal.

• Concealed duct design for unobtrusive installation.
• Supports heating and cooling operations.
• Uses R-454B refrigerant.

Product Highlights

This unit is ideal for settings that require efficient heating and cooling with minimal visibility, ensuring convenience and comfort.

Product Information

Standard Information

• Product Line: P-Series
• Product Category: Mini Split System Components

Technical Specifications

• Type: Concealed Duct
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-454B
• Cooling Capacity: 42000 BTU
• Heating Capacity: 48000 BTU
• Moisture Removal: 10.8 Pints/Hour
• Maximum Air Flow: 1483 CFM
• Minimum Air Flow: 1042 CFM
• Sound Level: 37 dB (minimum) to 45 dB (maximum)
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Dimensions: 9 7/8 Inches Height x 55 1/8 Inches Width x 28 7/8 Inches Depth
• Weight: 86 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
