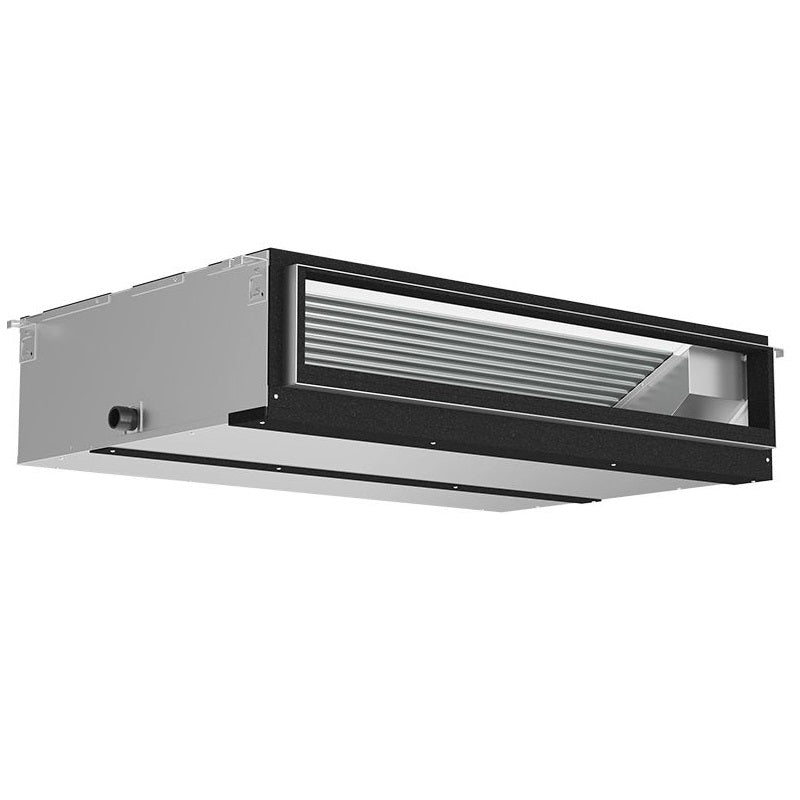

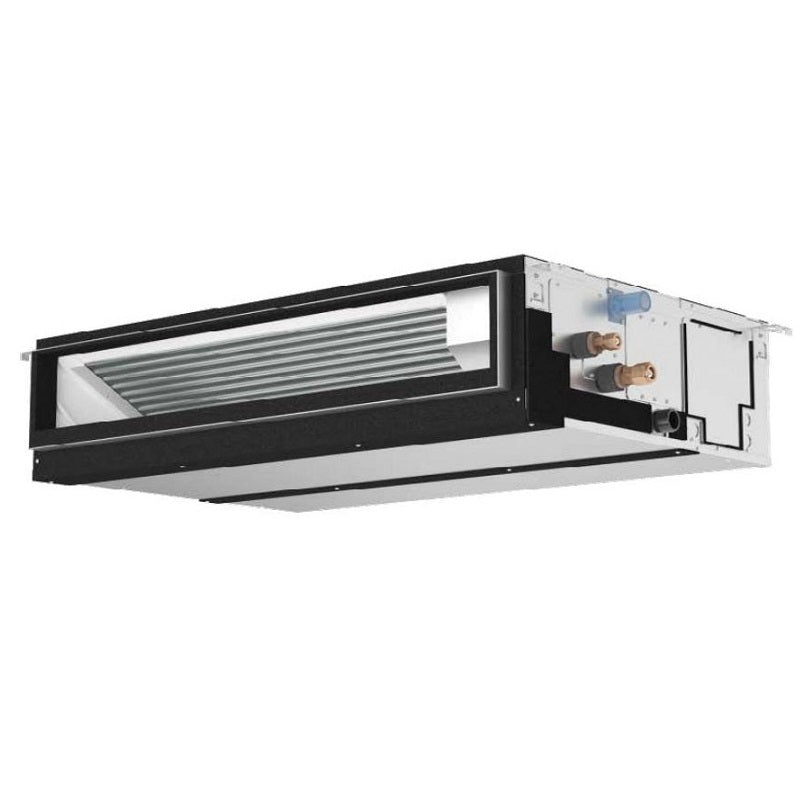

Mitsubishi Electric PEAD-AA36NL Concealed Duct Indoor Unit

Product Description

The Mitsubishi Electric PEAD-AA36NL is a concealed duct mini split indoor unit. It is designed for both single-zone and multi-zone configurations. This unit fits in short-run ducting and operates in heating and cooling modes. The PEAD-AA36NL uses R-454B refrigerant and offers multiple fan speeds, making it versatile for various indoor environments.

• Concealed duct design for unobtrusive installation.
• Compatible with both single-zone and multi-zone systems.
• Utilizes R-454B refrigerant.

Product Highlights

This unit offers effective air management for heating and cooling needs.

Product Information

Standard Information

• Product Line: P-Series
• Unit Type: Mid-Static Horizontal Ducted

Technical Specifications

• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 33,000 BTU
• Heating Capacity: 34,000 BTU
• Moisture Removal: 4.4 Pints/Hour
• Maximum Air Flow: 1,201 CFM
• Minimum Air Flow: 848 CFM
• Sound Level: 34 dB to 42 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 7/8 Inches
• Product Width: 55 1/8 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 82 Pounds
• Installation Location: Indoor
• ETL Listed: Yes
• AHRI Certified: Yes
