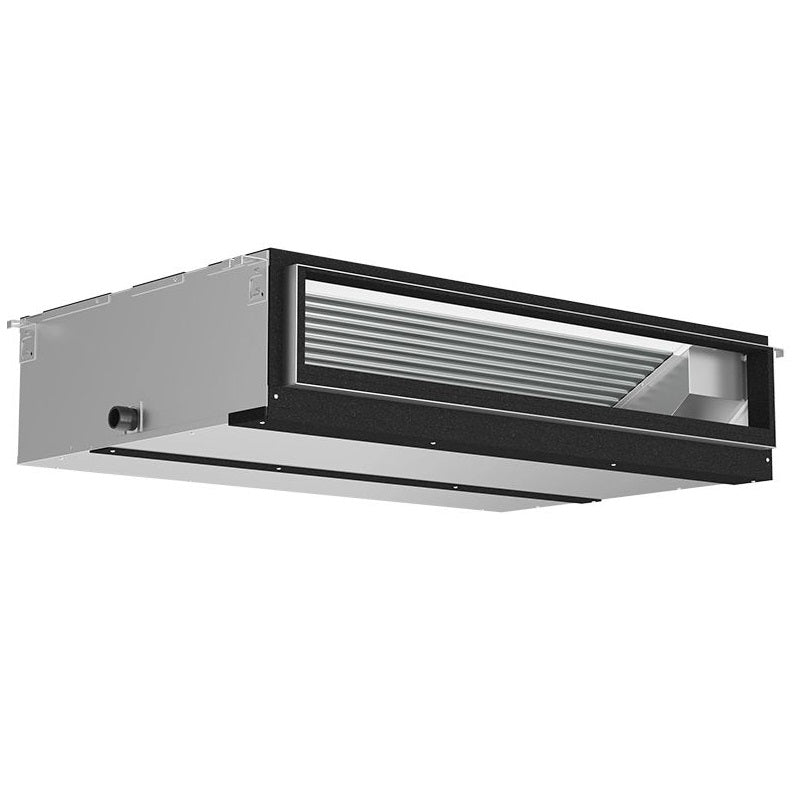

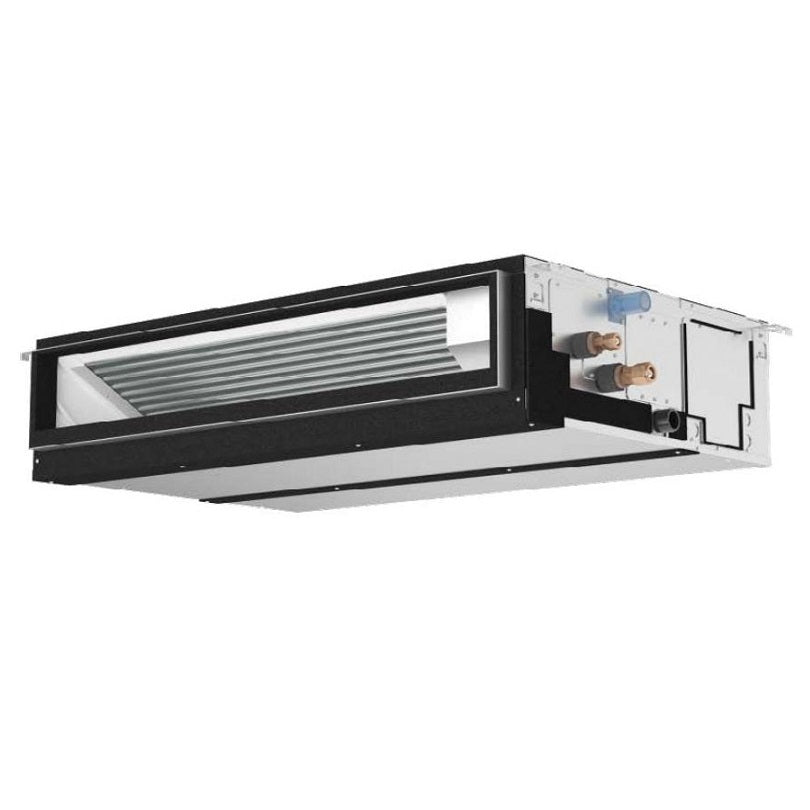

Mitsubishi Electric PEAD-AA15NL R454B: 15k BTU P-Series Concealed Horizontal-Ducted Indoor Unit

Product Description

The Mitsubishi Electric PEAD-AA15NL is a high-performance 15,000 BTU mid-static ducted indoor unit designed for hidden climate control in both residential and light commercial applications. Part of the next-generation AA series, this unit is engineered for compatibility with R-454B low-GWP refrigerant, meeting the 2025/2026 environmental mandates for sustainable HVAC technology. Its slim, horizontal profile allows for seamless installation in tight ceiling voids, closets, or soffits, providing a "hidden" heating and cooling solution that delivers air through short duct runs to multiple vents. Whether used in a master suite, a small office, or a media room, the PEAD-AA15NL offers a clean look without the presence of wall-mounted hardware.

• Slim-line body design (under 10 inches high) fits easily into shallow ceiling spaces
• Adjustable external static pressure (up to 0.60 in. WG) for flexible ductwork configurations
• Future-proof R-454B refrigerant compatibility for eco-friendly performance
• Highly efficient inverter-driven operation for precise temperature maintenance

Product Highlights

Designed for versatility and durability, the PEAD-AA15NL includes a built-in condensate lift mechanism with up to 27-9/16 inches of lift, simplifying drainage in challenging layouts. The unit features an auto-restart function after power outages and is compatible with a wide range of filtration options to ensure superior indoor air quality. It integrates perfectly with Mitsubishi Electric's kumo cloud® app, wall-mounted wired controllers, or wireless interfaces, giving you total command over your environment. When paired with a compatible M-Series or P-Series outdoor unit, the PEAD-AA15NL delivers exceptionally quiet, energy-efficient comfort while remaining completely out of sight.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA15NL
• Series: M-Series / P-Series Mid-Static Ducted

Technical Specifications

• Product Type: Horizontal Mid-Static Ducted Indoor Unit
• Cooling Capacity (BTU): 15,000
• Heating Capacity (BTU): 18,000
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B (A2L)
• External Static Pressure: 0.14 - 0.60 in. WG
• Airflow (High/Med/Low): 512 / 423 / 353 CFM
• Sound Level (High/Low): 33 / 26 dB(A)
• Liquid Line: 1/4"
• Gas Line: 1/2"
• Net Weight: 58.0 lbs
• Shipping Weight: 67.0 lbs
• Dimensions: 35-7/16" W x 28-7/8" D x 9-7/8" H
