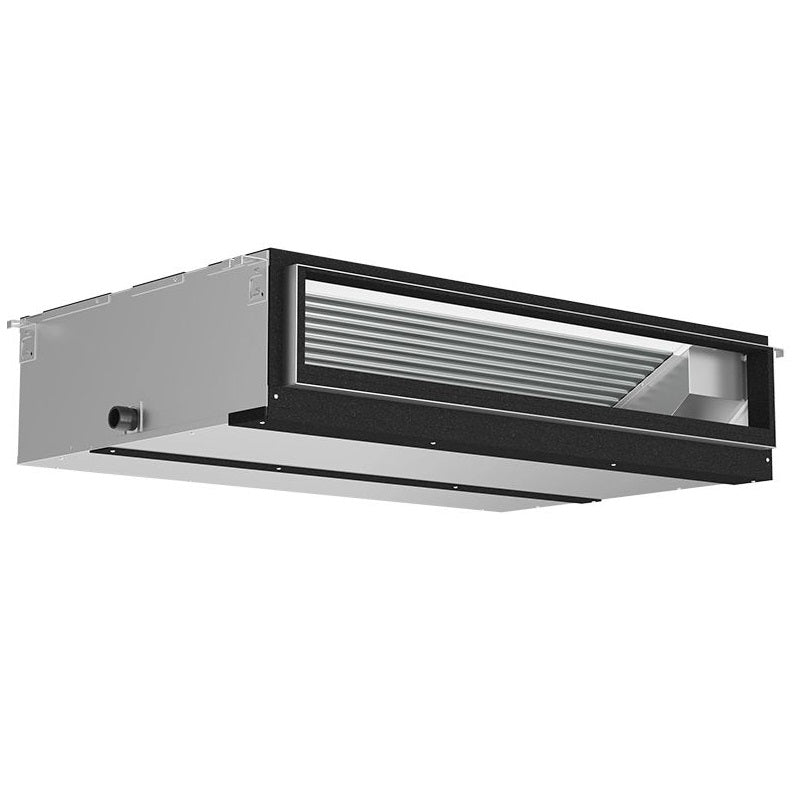

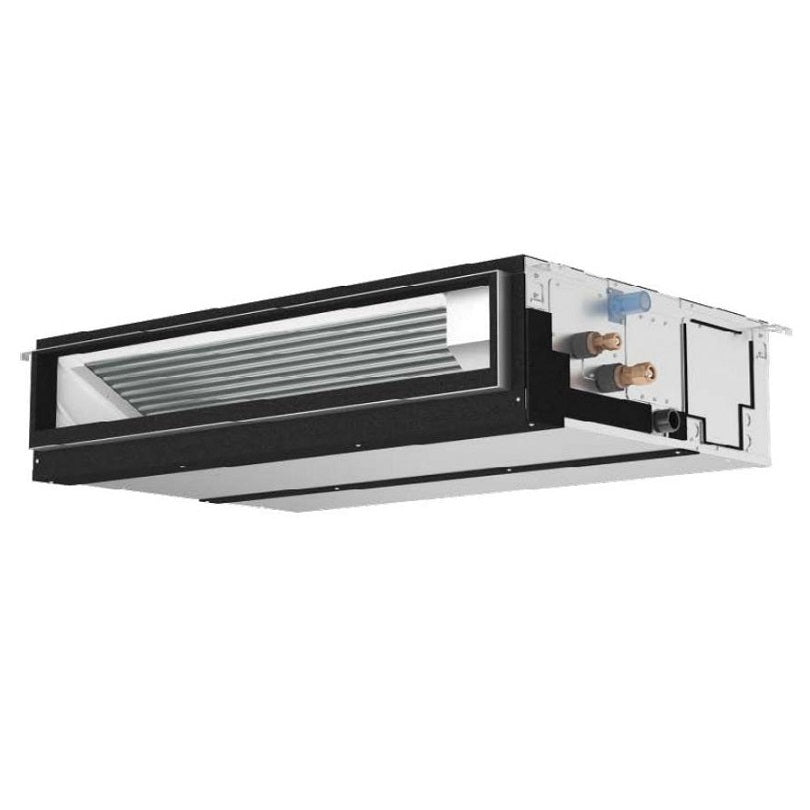

Mitsubishi Electric PEAD-AA12NL R454B: 12k BTU P-Series Concealed Horizontal-Ducted Indoor Unit

Product Description

The Mitsubishi Electric PEAD-AA12NL is an indoor unit designed for ceiling installation. This horizontal-ducted unit operates on 208/230 V, sixty Hertz, and uses single-phase power. It has a power consumption of eight hundred seventy watts with a current draw of two point five amps.

The unit utilizes R-454B refrigerant and can deliver airflow rates ranging from three hundred fifty-three to four hundred ninety-four cubic feet per minute. The Mitsubishi Electric PEAD-AA12NL achieves an Energy Efficiency Ratio rating of fourteen point four and a Seasonal Energy Efficiency Ratio rating of twenty. The sound level of this unit is thirty-four decibels, and it operates effectively within a temperature range of sixty-six to ninety degrees Fahrenheit.

• Built-in condensate lift mechanism supports up to twenty-seven and nine sixteenths inches.
• Multiple control options available, including mobile app, wired, and wireless interfaces.
• Wide external static pressure range of zero point fourteen to zero point sixty inches water gauge.

Product Highlights

The Mitsubishi Electric PEAD-AA12NL provides efficient cooling and versatile control capabilities.

Product Information

Standard Information

• Brand: Mitsubishi Electric
• MPN: PEAD-AA12NL

Technical Specifications

• Product Type: Indoor Unit
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: Single Phase
• Power Consumption: 870 W
• Current: 2.5 A
• Cooling Capacity: 12400 Btu/hr
• Airflow: 353 cfm, 388 cfm, 424 cfm, 494 cfm
• EER Rating: 14.4
• SEER: 20
• Refrigerant: R-454B
• Sound Level: 34 dBA
• Mounting Type: Ceiling Mounting
• Operating Temperature: 66 to 90 deg F
• Overall Length: 28-7/8 in
• Overall Width: 35-7/16 in
• Overall Height: 9-7/8 in
• Connection Type: Flared Connection
