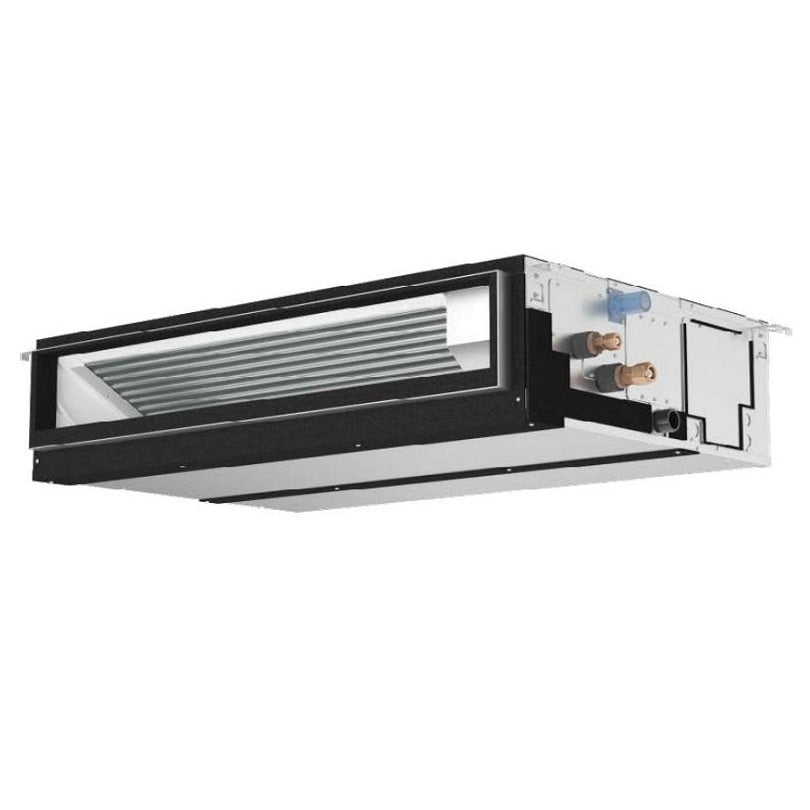

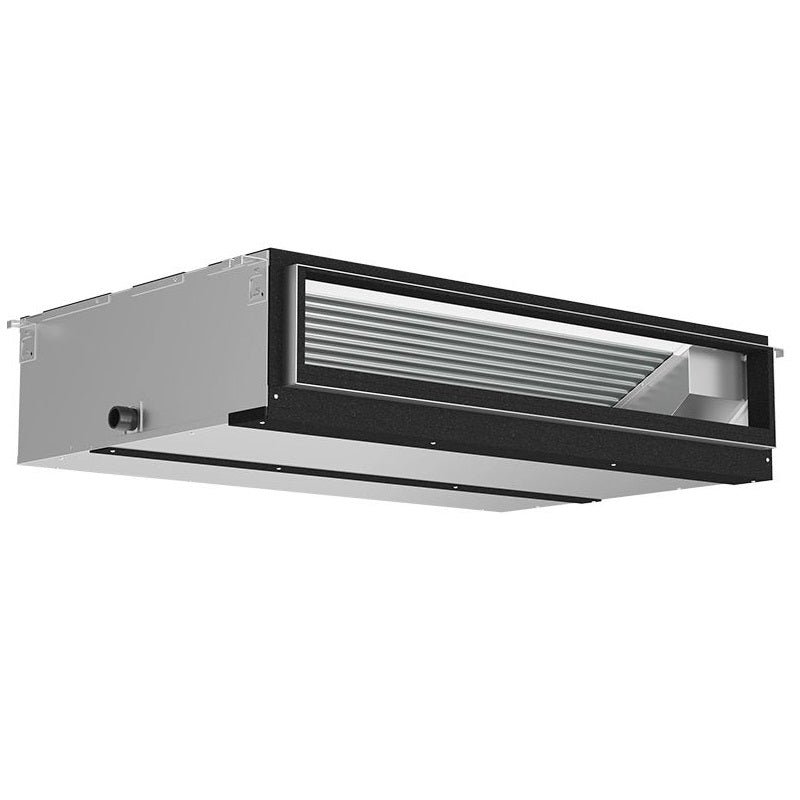

Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit

Product Description

The Mitsubishi Electric PEAD-AA09NL is a concealed duct mini split indoor unit, suitable for single-zone and multi-zone applications. This unit is designed to be hidden in short-run ducting, allowing for quiet operation. It supports multiple operating modes and fan speeds to meet room needs. This unit is compatible with R-454B refrigerant and intended for indoor installation.

• Concealed duct design to maintain aesthetics.
• Multi-zone and single-zone installation capability.
• Heating and cooling modes for year-round comfort.

Product Highlights

The PEAD-AA09NL provides efficient heating and cooling, suitable for various indoor environments.

Product Information

Standard Information

• Type: Concealed Duct
• Product Line: P-Series

Technical Specifications

• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-454B
• Cooling Capacity: 9000 BTU
• Heating Capacity: 12000 BTU
• Moisture Removal: 0.4 Pints/Hour
• Maximum Air Flow: 353 CFM
• Voltage: 208/230 Volts
• Gas Connection Size: 3/8 Inch
• Liquid Connection Size: 1/4 Inch
• Product Height: 9 7/8 Inches
• Product Width: 35 7/16 Inches
• Product Depth: 28 7/8 Inches
• Product Weight: 58 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Installation Location: Indoor
