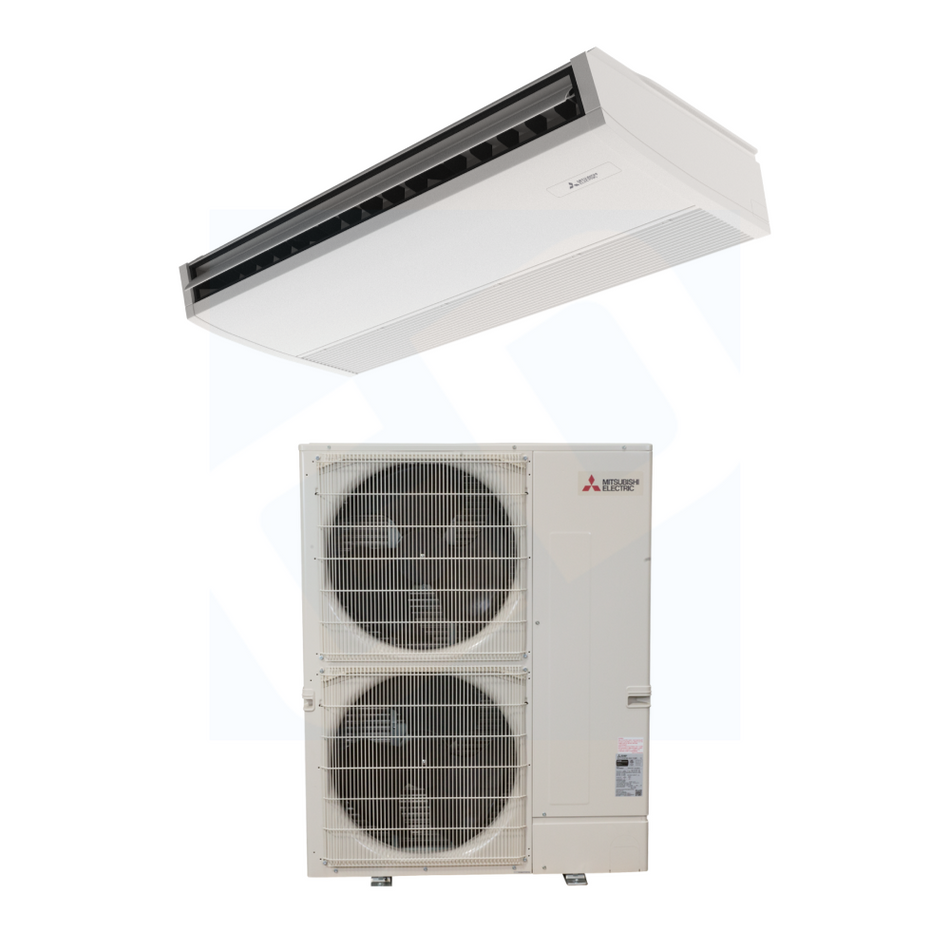

Mitsubishi Electric PCA-AK42NL R454B: 42,000 BTU Ceiling Suspended Air Handler

Product Description

The Mitsubishi Electric PCA-AK42NL is a 42,000 BTU ceiling suspended air handler designed for single-zone systems. This unit operates quietly, providing comfort without disrupting the space. Ideal for spaces where wall mounting or ceiling cassettes are not feasible. It features dehumidification to remove unwanted moisture and multiple vane control options for maximum coverage.

• Dehumidification removes unwanted moisture, improving comfort and reducing the chance of mold growth.
• Multiple vane control options allow for optimal air distribution.
• Suitable for spaces where wall mounting or ceiling cassettes are not feasible.

Product Highlights

The PCA-AK42NL is a ceiling-suspended unit that provides efficient heating and cooling with quiet operation and multiple vane control options.

Product Information

Standard Information

• Brand: MITSUBISHI ELECTRIC
• Manufacturer Part Number: PCA-AK42NL

Technical Specifications

• Type: Ceiling Suspended
• Product Line: P-Series
• Product Category: Mini Split System Components
• Operating Mode: Heating and Cooling
• Multi-Zone Compatible: No
• Refrigerant Type: R-454B
• Indoor Unit Size(s): 42
• Installation Location: Indoor
• Cooling BTU: 42000
• Cooling Capacity: 42000 BTU
• Heating Capacity: 48000 BTU
• Moisture Removal: 15.4 Pints/Hour
• Maximum Air Flow: 1025 CFM
• Minimum Air Flow: 740 CFM
• Minimum Sound Level: 39 dB
• Maximum Sound Level: 45 dB
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Gas Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 9 1/16 Inches
• Product Width: 63 Inches
• Product Depth: 26 3/4 Inches
• Product Weight: 86 Pounds
• Shipping Weight: 101 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• EER Rating: 10.2
• HSPF Rating: 8.6
• Mounting Type: Ceiling
• Power Rating: 4220 W Cooling, 5260 W Heating
• SEER Rating: 19.6
• Series: PCA-AK-NL Series
• Sound Level: 39/41/43/45 dBA Cooling, 39/41/43/45 dBA Heating
• Temperature Rating: 66 to 90 deg F Cooling, 50 to 83 deg F Heating
• Voltage Rating: 208/230 V
• CFM Rating: 740/810/885/955 cfm Cooling, 810/885/955/1,025 cfm Heating
• Connection Type: Flared
• Drive Type: Inverter
• Fuse Rating: 40 A
